Description
- Unmanaged Ethernet Switch
- Total of 16 Gigabit Ethernet Ports
- GREENnet Power Saving Technology
- Plug-and-Play
- Housed in a Sturdy Metal Enclosure
- Windows, Mac, Linux Compatible

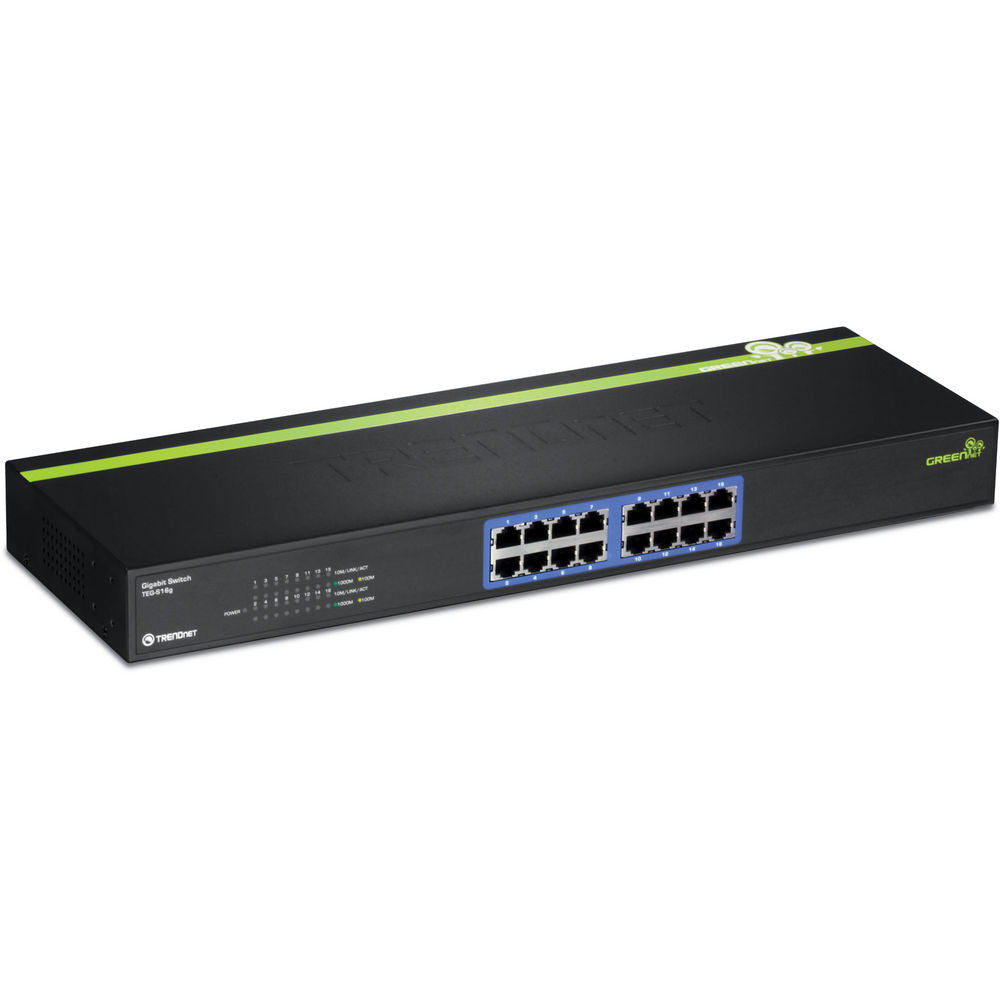

The TEG-S8G 16-Port GREENnet Gigabit Ethernet Switch from TRENDnet is an easy-to-use, high-speed, power-efficient solution for connecting different Ethernet-enabled devices on your network. This switch utilizes sixteen Gigabit Ethernet ports that are also Auto-Negotiation, Auto-MDIX. With Auto-Negotiation, the switch will figure out the appropriate speed to transfer data and the appropriate mode (full or half duplex) depending on what is supported by the device connected to your switch. With Auto-MDIX, you can connect either a regular or crossover cable to a port and the switch will adjust no matter the cable type. You can also use standard Ethernet cables as crossover cables when connecting devices. Since this switch is plug-and-play, you can start using it as soon as you connect Ethernet-enabled network devices. No need to configure it.
Because this switch is designed with GREENnet technology, it can reduce its power consumption by 70% in comparison to standard Trendnet switches. It reduces its power consumption when an Ethernet port is not in use, when an Ethernet cable is a shorter length, when a connected device is in power saving mode, and when a connected device is turned off. Housed in a sturdy metal enclosure, this switch is an easy, energy-efficient, high-speed way to connect up to sixteen devices on your network.
- Total of sixteen 10/100/1000 Mbps Auto-Negotiation, Auto-MDIX Gigabit Ethernet ports
- GREENnet technology reduces power consumption in four different scenarios:
a. Ethernet port is not in use
b. Connected device is turned off
c. Connected device is in power-saving mode
d. Based on Ethernet cable length

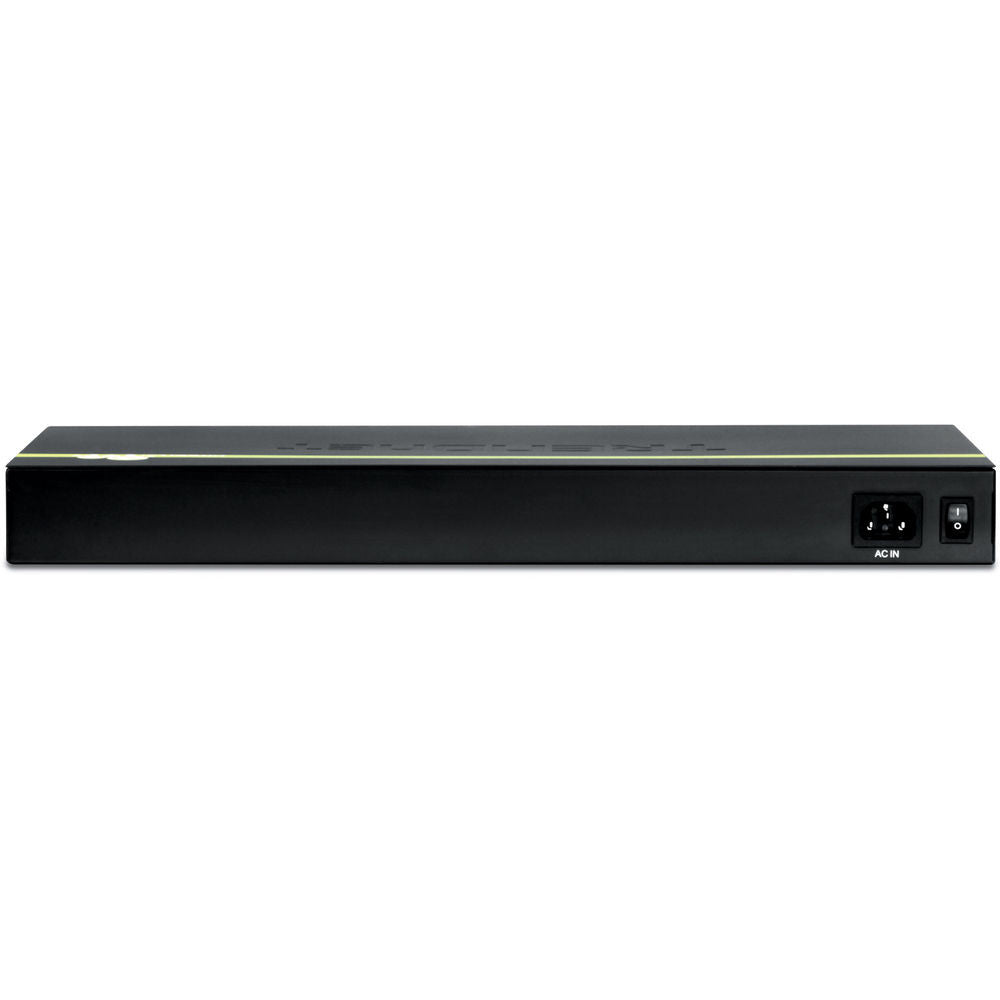

- On / Off power switch
- Features a 32Gbps forwarding capacity
- Internal power supply reduces clutter
- IEEE 802.3x Flow Control for full-duplex mode
- Back pressure Flow Control for half-duplex mode
- Store-and-Forward switching architecture with non-blocking wire-speed performance
- Integrated address look-up engine with an 8K MAC address table
- 2Mbits RAM data buffer
- Operates and maximizes packet filtering and forwarding rate
- Jumbo Frame support up to 9216 Bytes
- Rackmount hardware included
- Sturdy metal housing
- Diagnostic LEDs show the Power, Link/ACT, and Speed status for all sixteen ports
- Plug-and-play support allows you to connect to the switch and begin immediately
- Compatible with Windows, Linux, and Mac operating systems
- 3-year limited warranty
| Performance | |
|---|---|
| Standards | IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T; IEEE 802.3x Flow Control IEEE 802.3az (draft 2.0) |
| Protocols | CSMA/CD, Star |
| Interface | 16x 10/100/1000Mbps Auto-MDIX RJ-45 ports |
| Speed | Ethernet: 10Mbps/20Mbps (half/full-duplex) Fast Ethernet: 100Mbps/200Mbps (half/full-duplex) Gigabit Ethernet: 2000Mbps (full-duplex) |
| Network | Network Media Ethernet: Cat. 5 up to 100 m Fast Ethernet: Cat. 5 and 5e up to 100 m Gigabit Ethernet: Cat. 5e and 6 up to 100 m |
| MAC Address Table Size | 8K entries |
| RAM Buffer | 2Mbits |
| Frame Support | 9216 Bytes |
| LEDs | Diagnostic: Power Link/ACT 1000Mbps/100Mbps |
| Certifications | FCC, CE |
| RoHS Compliant | Yes |
| General | |
|---|---|
| Operating System | Windows, Mac, and Linux compatible |
| Environmental Requirements | Temperature Operating: 32° to 104°F / 0° to 40°C Storage: 14° to 158°F / -10° to 70°C Humidity Max: Up to 90% (non-condensation) |
| Power Requirements | 100 to 240VAC, 50/60Hz Internal universal switching power |
| Power Consumption | Up to 7.2 Watts |
| Dimensions | 17 x 5.5 x 1.8" / 44 x 14 x 4.5 cm |
| Weight | 3.5 lb / 1.6 kg |
| Packaging Info | |
|---|---|
| Package Weight | 5.6 lb |
| Box Dimensions (LxWxH) | 21.7 x 8.7 x 3.9" |
- Multi-Language Quick Installation Guide
- 6' / 1.8cm Power Cord
- Rackmount Hardware
- 3-Year Limited Warranty
