| ₹ 15295.0 includes GST and import duties. | |
| B2B customers can avail ₹ 2332.49 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
- Total of 16 Gigabit Ethernet Ports
- GREENnet Power Saving Technology
- Plug-and-Play
- Internal Power Supply Reduces Clutter
- Housed in a Sturdy Metal Enclosure
- Windows, Mac, Linux Compatible

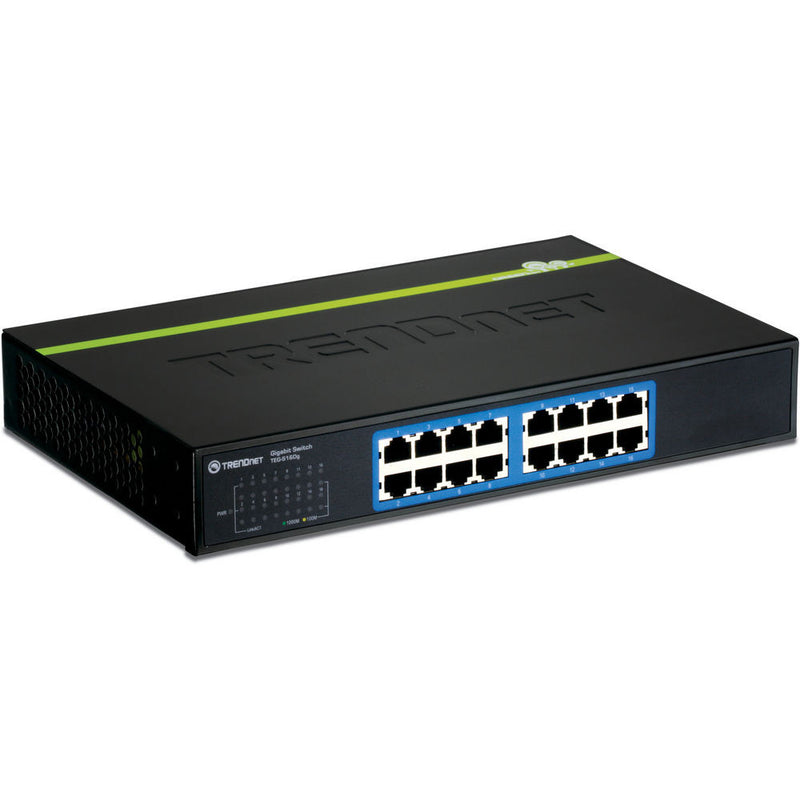

The TEG-S16Dg 16-Port GREENnet Gigabit Ethernet Switch from TRENDnet is an easy-to-use, high-speed, power-efficient solution for connecting different Ethernet-enabled devices on your network. This switch utilizes sixteen Gigabit Ethernet ports that are also Auto-Negotiation, Auto-MDIX. With Auto-Negotiation, the switch will figure out the appropriate speed to transfer data and the appropriate mode (full or half duplex) depending on what is supported by the device connected to your switch. With Auto-MDIX, you can connect either a regular or crossover cable to a port and the switch will adjust no matter the cable type. You can also use standard Ethernet cables as crossover cables when connecting devices. Since this switch is plug-and-play, you can start using it as soon as you connect Ethernet-enabled network devices. No need to configure it.
Because this switch is designed with GREENnet technology, it can reduce its power consumption by 70% in comparison to standard Trendnet switches. It reduces its power consumption when an Ethernet port is not in use, when an Ethernet cable is a shorter length, when a connected device is in power saving mode, and when a connected device is turned off. Housed in a sturdy metal enclosure, this switch is an easy, energy-efficient, high-speed way to connect up to sixteen devices on your network.
- Total of sixteen 10/100/1000 Mbps Auto-Negotiation, Auto-MDIX Gigabit Ethernet ports
- GREENnet technology reduces power consumption in four different scenarios:
a. Ethernet port is not in use
b. Connected device is turned off
c. Connected device is in power-saving mode
d. Based on Ethernet cable length
- On / Off power switch
- Features a 32Gbps forwarding capacity
- Internal power supply reduces clutter
- IEEE 802.3x flow control for full-duplex mode
- Back pressure flow control for half-duplex mode
- Store-and-Forward switching architecture with non-blocking wire-speed performance
- Integrated address look-up engine with an 8K MAC address table
- 2Mbits RAM data buffer
- Operates and maximizes packet filtering and forwarding rate
- Jumbo frame support up to 9216 Bytes
- Sturdy metal housing
- Diagnostic LEDs show the Power, Link/ACT, and Speed status for all sixteen ports
- Plug-and-play support allows you to connect to the switch and begin immediately
- Compatible with Windows, Linux, and Mac operating systems
- 3-year limited warranty
| Performance | |
|---|---|
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet |
| Protocols | CSMA/CD, Star |
| Interface | 16x 10/100/1000Mbps Auto-MDIX RJ-45 ports |
| Speed | Ethernet: 10Mbps/20Mbps (half/full-duplex) Fast Ethernet: 100Mbps/200Mbps (half/full-duplex) Gigabit Ethernet: 2000Mbps (full-duplex) |
| Network | Network Media Ethernet: Cat. 5 up to 100 m Fast Ethernet: Cat. 5 and 5e up to 100 m Gigabit Ethernet: Cat. 5e and 6 up to 100 m |
| MAC Address Table Size | 8K entries |
| RAM Buffer | 2Mbits |
| Frame Support | Up to 9216 bytes |
| LEDs | Diagnostic: Power Link/ACT 1000Mbps/100Mbps |
| Certifications | FCC, CE |
| General | |
|---|---|
| Minimum Requirements | ·Computer with network adapter installed ·Cat.5e or Cat.6 network cable ·The surface must support at least 1.5 kg for the switch ·The power outlet should be within 1.82 m (6 ft) of the switch ·Make sure that there is proper heat dissipation and adequate ventilation around the switch ·Do not place heavy objects on the switch |
| Environmental Requirements | Temperature Operating: 32° to 104°F (0° to 40°C) Storage: 14° to 158°F (-10° to 70°C) Humidity Max: Up to 90% (non-condensing) |
| Power Requirements | 100 to 240VAC, 50/60Hz Internal universal switching power |
| Power Consumption | Up to 7.2 Watts |
| Dimensions | 11 x 7 x 1.7" (2.8 x 18 x 4.3cm) |
| Weight | 3.3 lb (1.5 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 4.95 lb |
| Box Dimensions (LxWxH) | 14.0 x 11.2 x 3.5" |
- Multi-Language Quick Installation Guide
- 6' / 1.8cm Power Cord
- 3-Year Limited Warranty
Bulk Discount
| Quantity | Price |
| 2 | ₹ 14989.1 |
| 3-5 | ₹ 14836.15 |
| 5-10 | ₹ 14530.25 |
| 10+ | ₹ 14224.35 |
Bulk discount will be automatically applied during checkout based on quantity.
