Description
- 4 x Gigabit Ethernet Ports
- 2 x Dedicated SFP Slots
- 60-120W Power Budget
- 12 Gbps Switching Capacity
- IP30 Rated Metal Switch
- Alarm Output Triggered by Power Failure
- Includes DIN-Rail and Wall Mounts

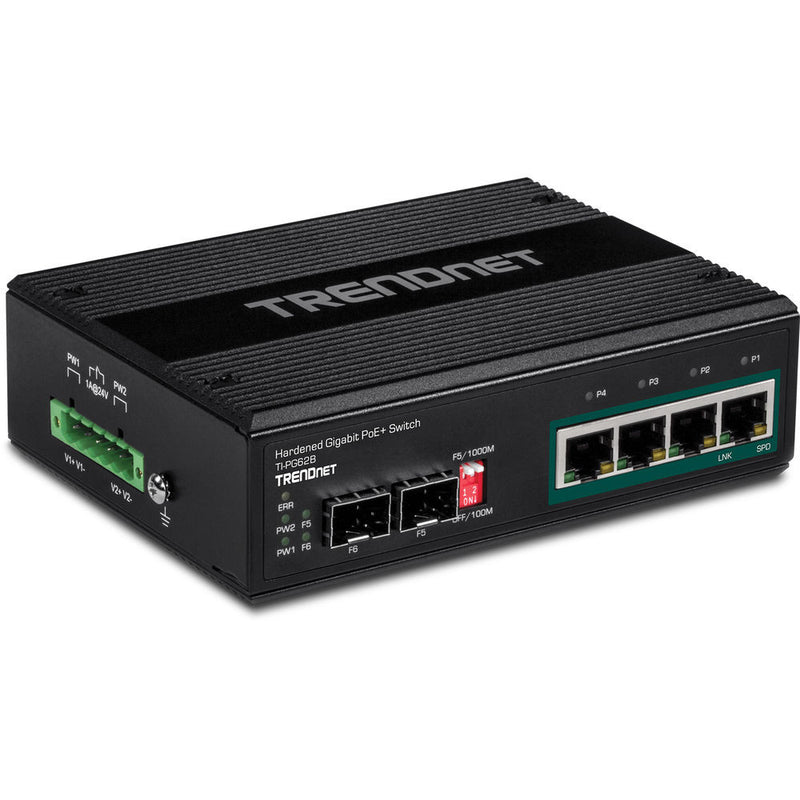

With four Gigabit PoE+ ports and dual dedicated SFP slots, the 6-Port Industrial Gigabit PoE+ DIN-Rail Switch from TRENDnet is designed to power a variety of PoE compatible devices. This switch features a 60- to 120-watt power budget and comes equipped with a 12 Gbps switching capacity and a 9 KB jumbo frame to handle a large amount of network traffic.
Installation is simple as this switch includes both DIN-rail and wall mounts along with a hardened IP30 housing to help protect against physical damage. The TI-PG62B can even withstand extreme temperatures of -40 to 167 degrees. Once installed, a network administrator can plug a redundant power supply (sold separately) into the switch for backup power while the built-in alarm alerts admins to a power failure.
- Network Ports
- 4 x Gigabit PoE+ ports and 2 x dedicated SFP slots

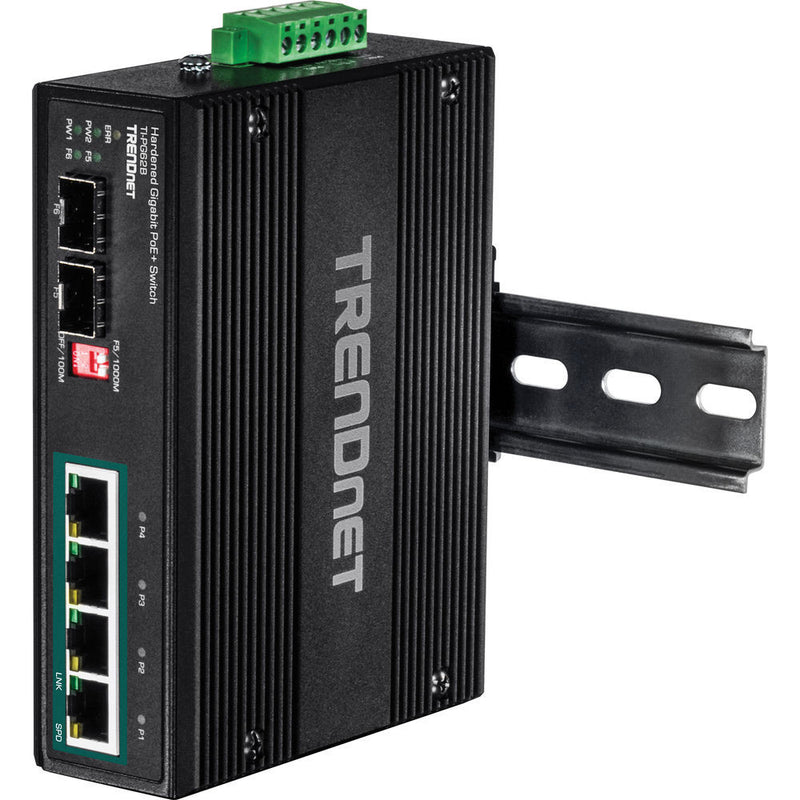

- DIN-Rail / Wall Mounts
- IP30 rated metal enclosure with included DIN-rail and wall mount hardware
- Switching Capacity
- 12 Gbps switching capacity
- Redundant Power
- Dual redundant power inputs with overload current protection (power supply sold separately)
- Alarm Relay
- Alarm relay triggered by power failure of primary and/or redundant power
- Jumbo Frames
- Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance
- Extreme Temperatures
- Industrial switch is rated for an operating temperature range of -40 to 167°F (-40 - 75°C)
- Shock and Vibration Resistant
- Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
- Grounding Point
- Grounding point protects equipment from external electrical surges
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.3af IEEE 802.3at |
| Device Interface | 4 x Gigabit PoE+ ports 2 x 100/1000 Mbps SFP slots 6-pin removable terminal block LED indicators DIP switch DIN-rail mount Wall mount Grounding point |
| Data Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex) |
| Performance | Data RAM Buffer: 1024 KB Switching Fabric: 12 Gbps MAC Address Table: 1 K entries Jumbo Frame: 9 KB Forwarding rate: 8.9 Mpps (64-byte packet size) |
| Power | Input: 12/24/48 VDC Output: up to 55 VDC Compatible power supply: TI-S12048 (sold separately) Consumption: Max. 5.76 Watts (no PoE) |
| PoE | PoE budget: 120 W @ 24 VDC / 48 VDC / 56 VDC PoE budget: 60 W @ 12 VDC |
| Terminal Block | Redundant power inputs, alarm relay contact, 6 pin Wire range: 0.34 mm^2 to 2.5 mm^2 Solid wire (AWG): 12-24/14-22 Stranded wire (AWG): 12-24/14-22 Torque: 5 lb. - In / 0.5 Nm / 0.56 Nm Wire strip length: 7-8 mm |
| DIP Switch | 1: OFF (port 5 SFP on, default), ON (port 5 SFP off) 2: OFF (SFP 1000 M, default), ON (SFP 100 M) |
| Alarm | Alarm Relay Contact Relay outputs with current carrying capacity of 1 A, 24 VDC Open circuit mode when one power source is connected Short circuit mode when two power sources are connected |
| MTBF | 510,304 hours |
| Housing | IP30 metal case DIN-rail mount Wall mount Grounding point 6 KV ESD protection |
| Temperature & Humidity | Operating Temperature -40 to 167°F / -40 to 75°C Operating Humidity Max. 95% non-condensing |
| Certifications | CE FCC Shock (EN 60068-2-27) Freefall (EN 60068-2-32) Vibration (EN 60068-2-6) |
| Dimensions | 5.6 x 4.1 x 1.8" / 143 x 105 x 45 mm |
| Weight | 1.6 lb / 700 g |

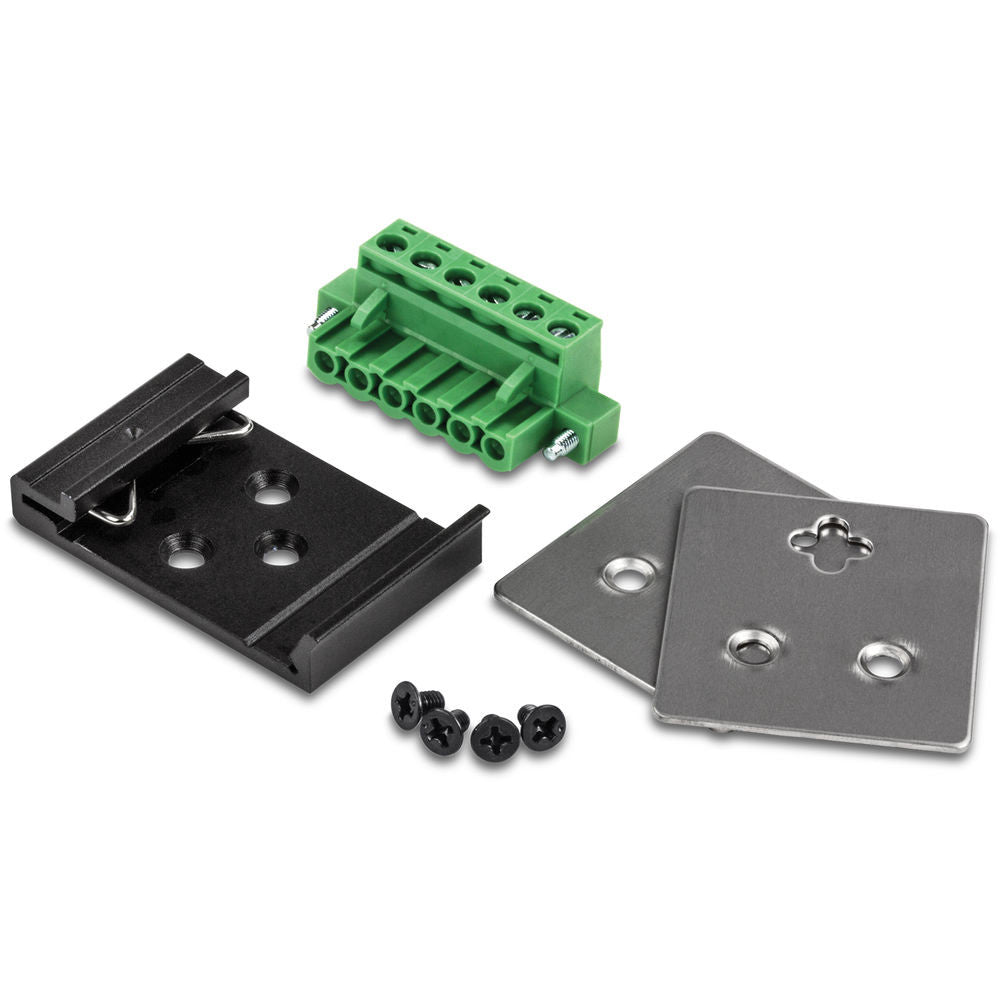

- Removable Terminal Block
- DIN-rail and Wall Mount Kit
- Limited Lifetime Manufacturer Warranty
