Description

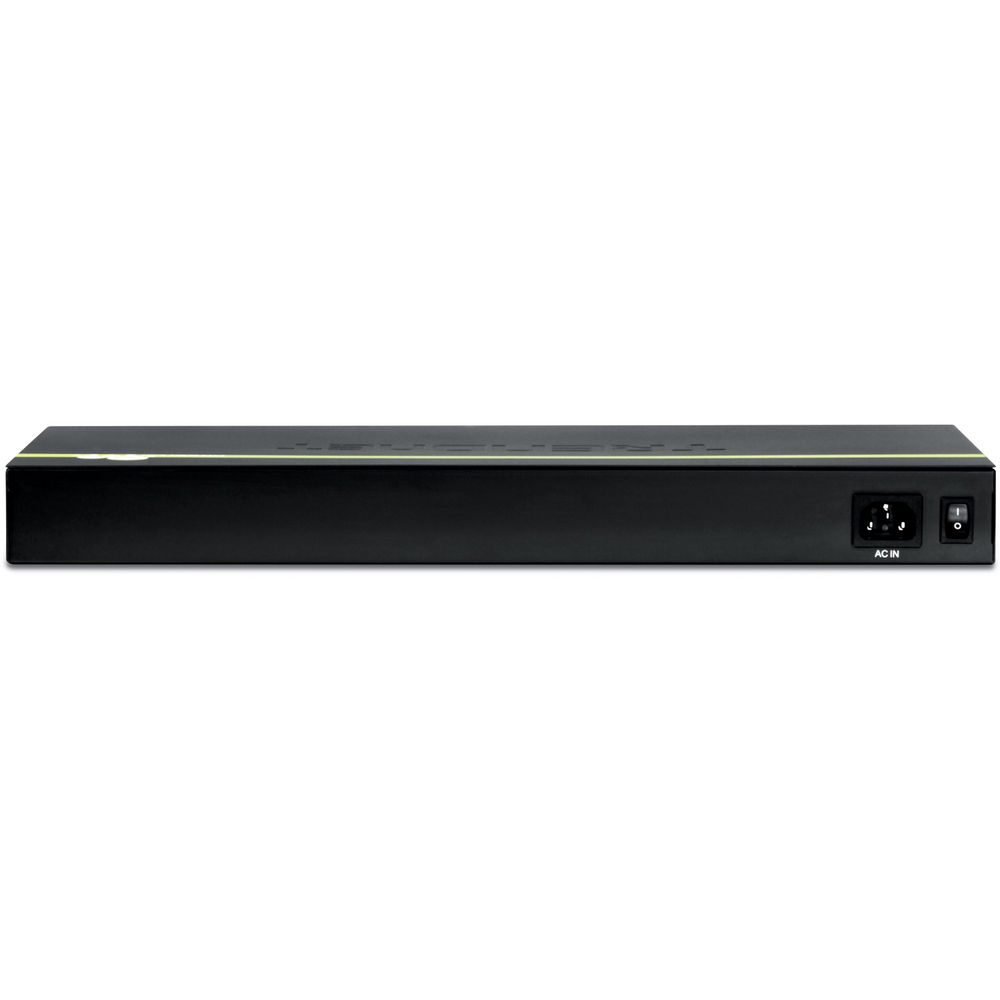

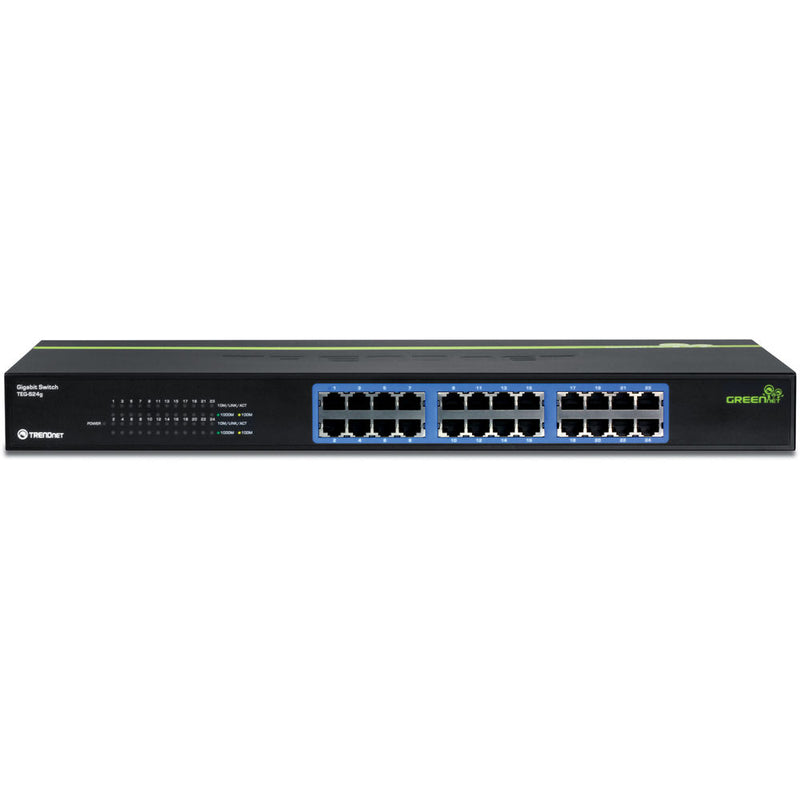

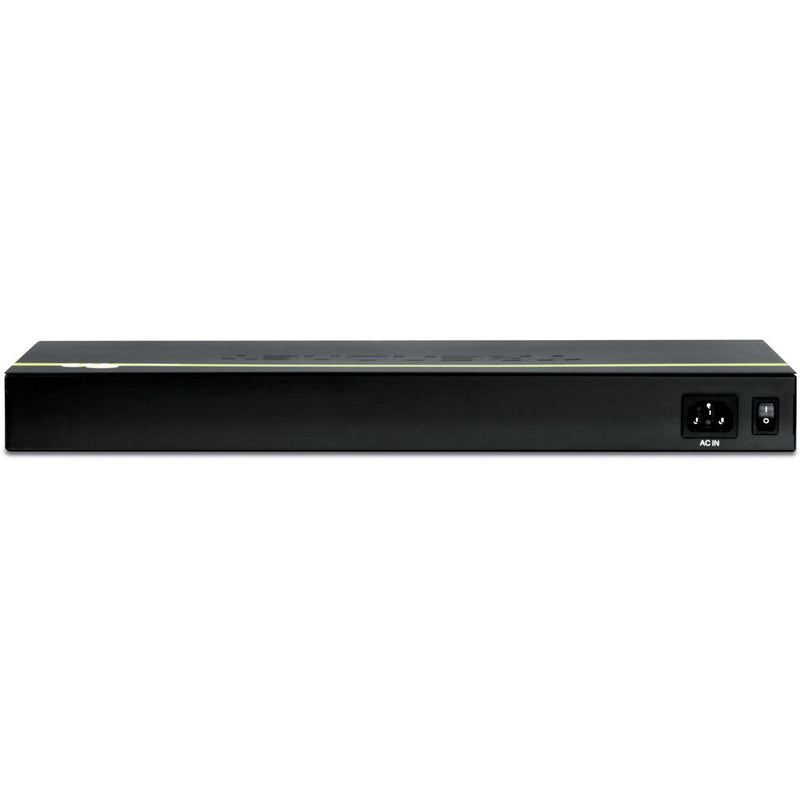

TRENDnet TEG-S24DG Overview
The 24-Port Gigabit GREENnet Ethernet Switch from TRENDnet adds 24 Gigabit Ethernet ports to your local area network. The switch is designed with energy efficiency in mind -- it features an internal power supply that uses up to 70% less power than comparable switches.
The switch has a forwarding capacity of 48Gbps when used in Full-Duplex Mode. Diagnostic LEDs are present to assist in network troubleshooting. This is a true plug-and-play device that requires no drivers or configuration.
24x 10/100/1000Mbps Auto-MDIX Gigabit Ethernet ports
On/off power switch
Features a 48Gbps forwarding capacity
Internal power supply reduces clutter
GREENnet technology reduces electrical power consumption:
- When the Ethernet port is not in use
- When the connected device is turned off
- When the connected device is in power-saving mode
- Based on Ethernet cable length
IEEE 802.3x Flow Control for full-duplex mode
Back pressure Flow Control for half-duplex mode
Store-and-Forward switching architecture with non-blocking wire-speed performance
Integrated address look-up engine with a 8K MAC address table, and 3.5Mb RAM data buffer
Operates and maximizes packet filtering and forwarding rate
Jumbo Frame support up to 9216B
Sturdy metal housing
Diagnostic LEDs and Plug & Play support
UPC: 710931610215
In the Box
- TRENDnet 24-Port Gigabit GREENnet Ethernet Switch
- 6' (1.8 m) Power Cord
- Multi-Language Quick Installation Guide
- Limited 3-Year Manufacturer Warranty
TRENDnet TEG-S24DG Specs
Key Specs
| Inputs/Outputs |
24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
|
Interfaces
| Inputs/Outputs |
24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
|
Protocols
| Transmission Method |
Store-and-Forward
|
| Jumbo Frames Support |
9,216 Bytes
|
| MAC Address Table Size |
8K
|
Standards
| Supported IEEE Standards |
802.3, 802.3ab, 802.3az, 802.3u, 802.3x
|
Performance
| Switching Bandwidth |
48 Gb/s
|
| Packet Buffer |
3.5 Mb
|
Electrical
| Power Draw |
13.00 W (Active)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
0 to 90%
|
| Storage Temperature |
14 to 158°F / -10 to 70°C
|
General
| Indicator Lights |
Link/Activity, Power, Speed
|
| Dimensions |
11 x 7.1 x 1.7" / 28 x 18 x 4.4 cm
|
| Weight |
4 lb / 2 kg
|
Packaging Info
| Package Weight |
5.6 lb
|
| Box Dimensions (LxWxH) |
14 x 11.2 x 3.4"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
