Description

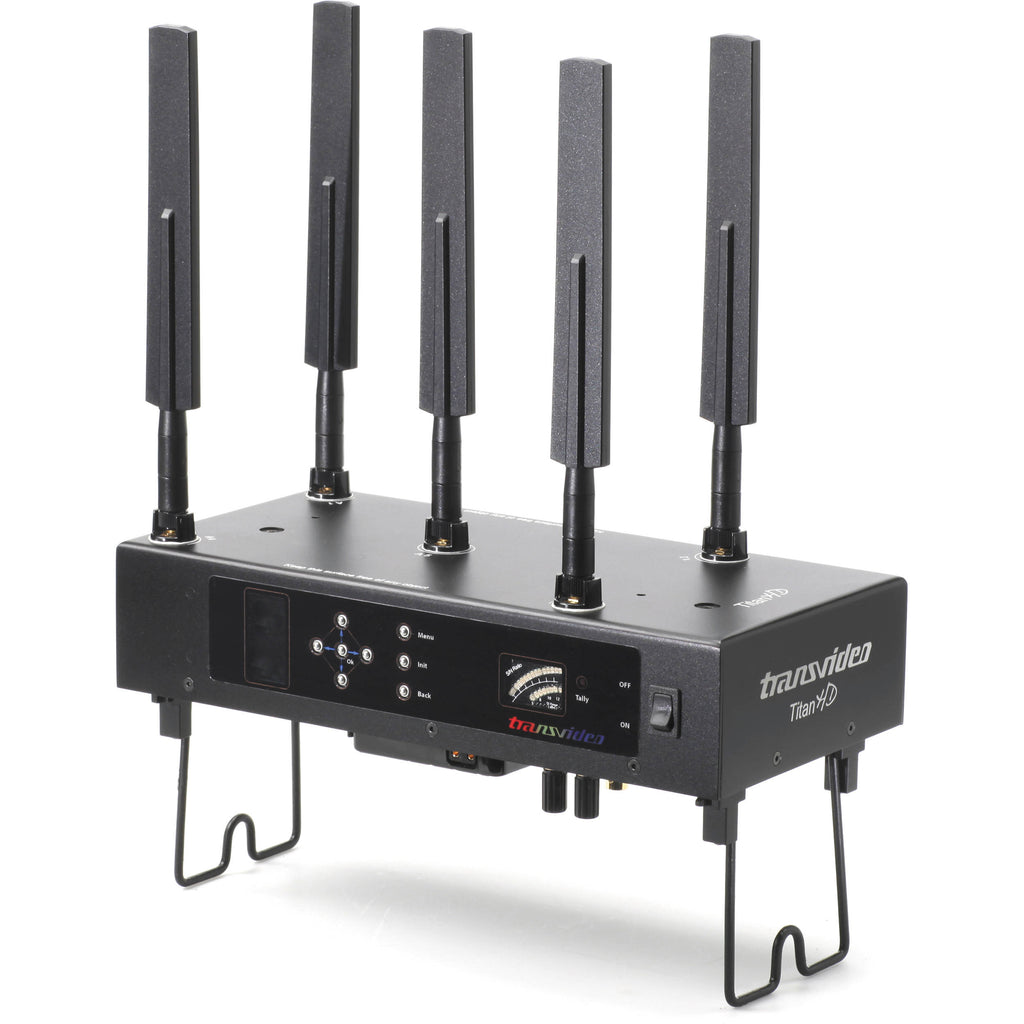

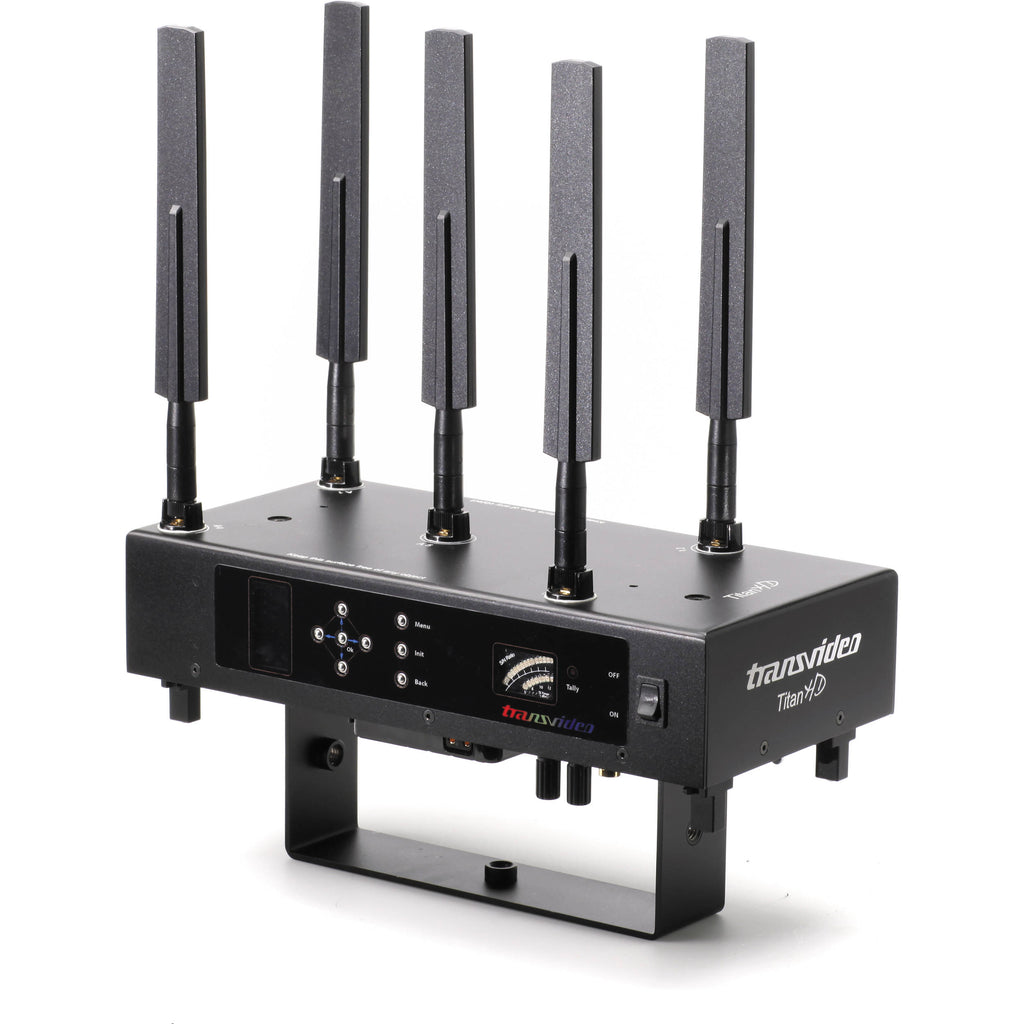

The TransVideo TitanHD Digital HD/SD Wireless�Receiver� receives signal without any loss in a normal environment. With latency below 5ms, it provides real-time SD/HD monitoring.
Based on a 5GHz ISM band COFDM MiMo wireless system, the TitanHD�receiver�accepts RGB and YCrCb 10-bit signal (HD SDI and HDMI), as well as SD SDI and composite signals. It provides good signal strength and stability.
�
The Receiver can be powered by an a V-Mount battery (sold separately) or an external DC. It works on the 5.8GHz ISM band that doesn't require a broadcast license.
�
�
- Digital HD/SD wireless receiver
- The Receiver has low power consumption and is suitable for video-village, news, sport, digital-cinematography, and body-rigs. With latency below 5ms, this receiver accepts HD/SD SDI, composite, & HDMI signals using the 5.8GHz ISM band that doesn't require a broadcast license.
- Transmission Range
- The transmission range varies depending on the topology of the location; performance remains excellent within an open field line of sight test from 200.0' (60.9m). It can be reduced by walls or interferences with other systems.
- Link
- The selection of a channel can be manual or automatic. In P2P mode, the link is possible only between one receiver and one transmitter. In Broadcast mode, up to 6 receivers can be linked to a single transmitter, but data transmission from receiver to transmitter (S/N ratio, GPIO) is not possible.
- Compliance
- This receiver complies with part 15C of the FCC rules and the procedures issued by Industry Canada
In the Box
Transvideo TitanHD Digital HD/SD Wireless Receiver (V-Mount Battery Compatible)
- 5 x Antenna (3dBi)
- U-Shape Holder with C-Stand Adapter
- USB Adapter for Software Updates
- Limited 2-Year Warranty
| Output | 2 x HD/SD SDI out (BNC) 2 x CVBS out (BNC) |
| Transmission | 5 GHz ISM band COFDM MiMo |
| Modes | P2P: 1 Tx to 1 Rx Broadcast: 1 Tx to 6 Rx |
| Channels | 10 for USA & Canada models |
| Power | XLR4 connector (-1, +4) - with galvanic insulation |
| Standards | HD SDI (SMPTE 292M): 1280 x 720p @ 24, 25, 29.97, 30 Hz (SMPTE 296M) 1280 x 720p @ 50, 59.94, 60 Hz (SMPTE 296M) 1920 x 1080i @ 50, 59.94, 60 Hz (SMPTE 274M) 1920 x 1080psf @ 23.98, 24, 25, 29.97, 30 Hz (SMPTE 274M) 1920 x 1080p @ 23.97, 24, 25, 29.94, 30 Hz (SMPTE 274M) SD SDI (SMPTE 259M-C): 720 x 487i @ 60 Hz (SD SDI 525 - SMPTE 125M) 720 x 576i @ 50 Hz (SD SDI 625 - ITU-R BT.601) CVBS: NTSC-M, NTSC-J, NTSC 4.43 PAL B/G H I D, PAL M, PAL N SECAM HDMI: 720 x 480i @ 59.94, 60 Hz 720 x 576i @ 50 Hz 1280 x 720p @ 50, 59.94, 60 Hz 1920 x 1080i @ 50, 59.94, 60 Hz 1920 x 1080psf @ 25, 29.97, 30 Hz 1920 x 1080p @ 23.97, 24, 25, 29.94, 30 Hz |
| Power Consumption | 10 to 36 VDC/22 W |
| Operating Temperature | -4 to 135�F (-20 to 55�C) |
| Storage Temperature | -40 to 176�F (-40 to 80�C) |
| Weight | Without Antennas: 3.19 lb (1.44 kg) |
