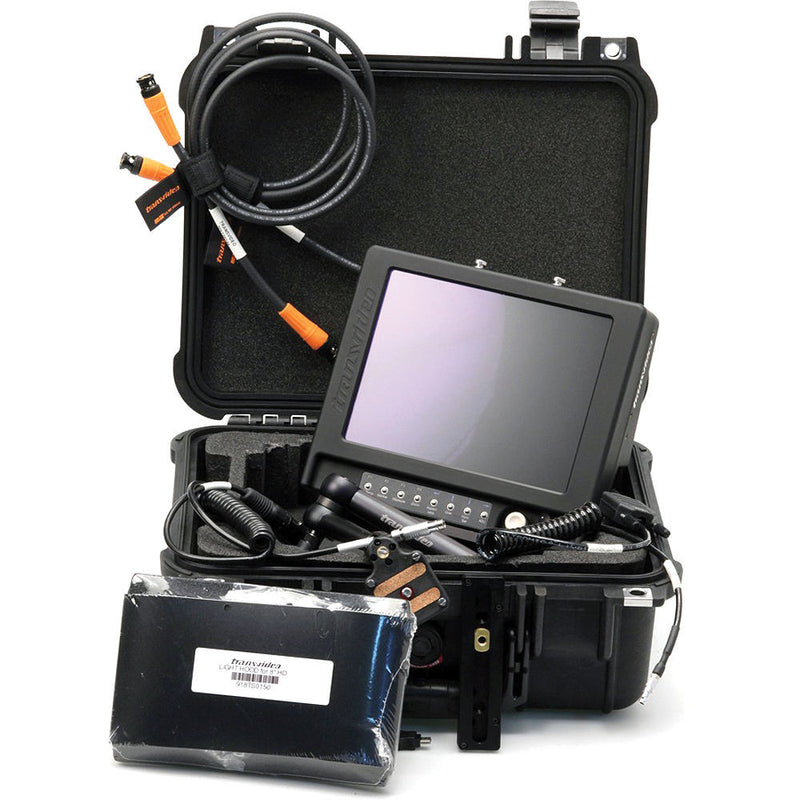

The Transvideo CineMonitorHD8 SBL Evolution Alexa Package includes the 8" CineMonitor Evolution HD Video Monitor, a heavy-duty 3D Swing Arm, a Carbon Handle, two 4.5GHz HDTV BNC Cables (1m), a mini HDMI Cable, an i/ lens cable to display data from Cooke or Angenieux Lens /i primes and zooms, a RS3 power cable, and a USB adapter for updates. The package also includes a screen protective cover, a microfiber cloth and bag, a light hood, and a Pelican case with custom shaped foam.
The 8" CineMonitor HD Video Monitor supports all analog SD/HD video signals. The video monitor uses Transvideo's processor to ensure that the images are clear and free from blur. It also uses RealFrameRate processing to make sure that fast-moving images appear crystal clear and are not marred by ghosting. The built-in tally light lets you know when the feed being displayed on the monitor is the "main program" at that moment.
The CineMonitor HD Video Monitor supports multiple aspect ratios (16:9, 4:3, and anamorphic); you can easily switch among the aspect ratios readily even when a feed is being displayed. The HD video monitor unit also supports zooming, and D56-D65 manual color calibration. Given the Transvideo 8" monitor's low latency (less than one frame), you can be rest assured of seamless continuous playback. The HD video monitor can also display waveform, vector, and histogram scopes, and can automatically reverse and correct any horizontal or vertical flips in the display (thereby saving you the trouble from having to do so manually).
The Heavy-Duty 3D Swing Arm for Alexa is designed for the CineMonitorHD 8" used with ARRI cameras. The clamp for sliding on the top allows mounting the monitor from the bottom slide, its back or any extra slide. It comes with a special 3/8"-16 male thread on the bottom that keeps the arm steady and prevents rotation. Thanks to the die-cast stainless steel body, it fits perfectly and securely on the side or on the handle of the camera.
The Carbon Handle for CineMonitorHD Monitor provides you with a secure and elegant way to carry your CineMonitorHD in the studio or on location. This handle can be attached to the top or either side of the 8", 10", 12", and 15" monitors, but only to the top of the 6" monitor. A quick release mechanism makes it easy to attach or detach this handle from the monitor.
The 3.3' (1m) long 4.5 GHz HDTV BNC Male to BNC Male Cable is a high-performance HDTV cable tested at 3 GHz. This cable features certified HD BNC male connectors.
The 1.6 to 2.3� (50 to 70cm) XLR4 Female to RS3 (Fisher3) Male Spiral Cable is used to power the CineMonitorHD.
