Description

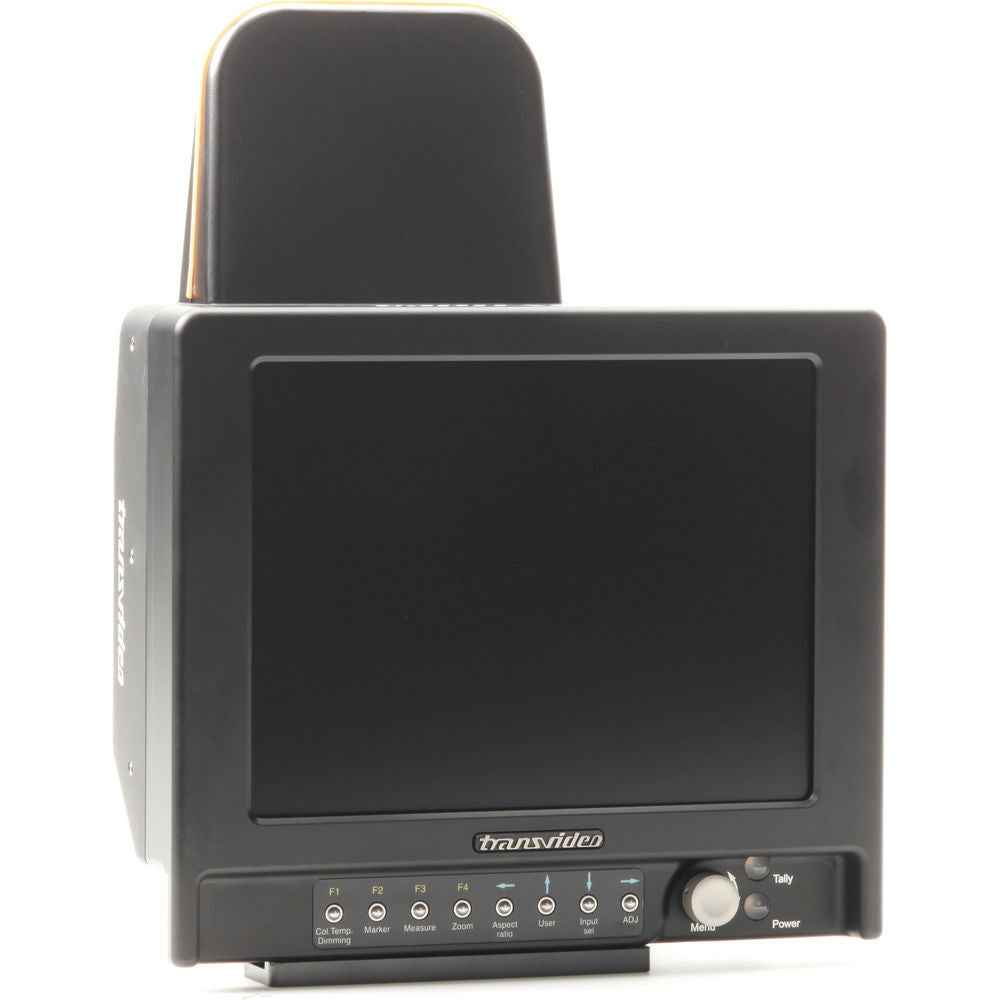

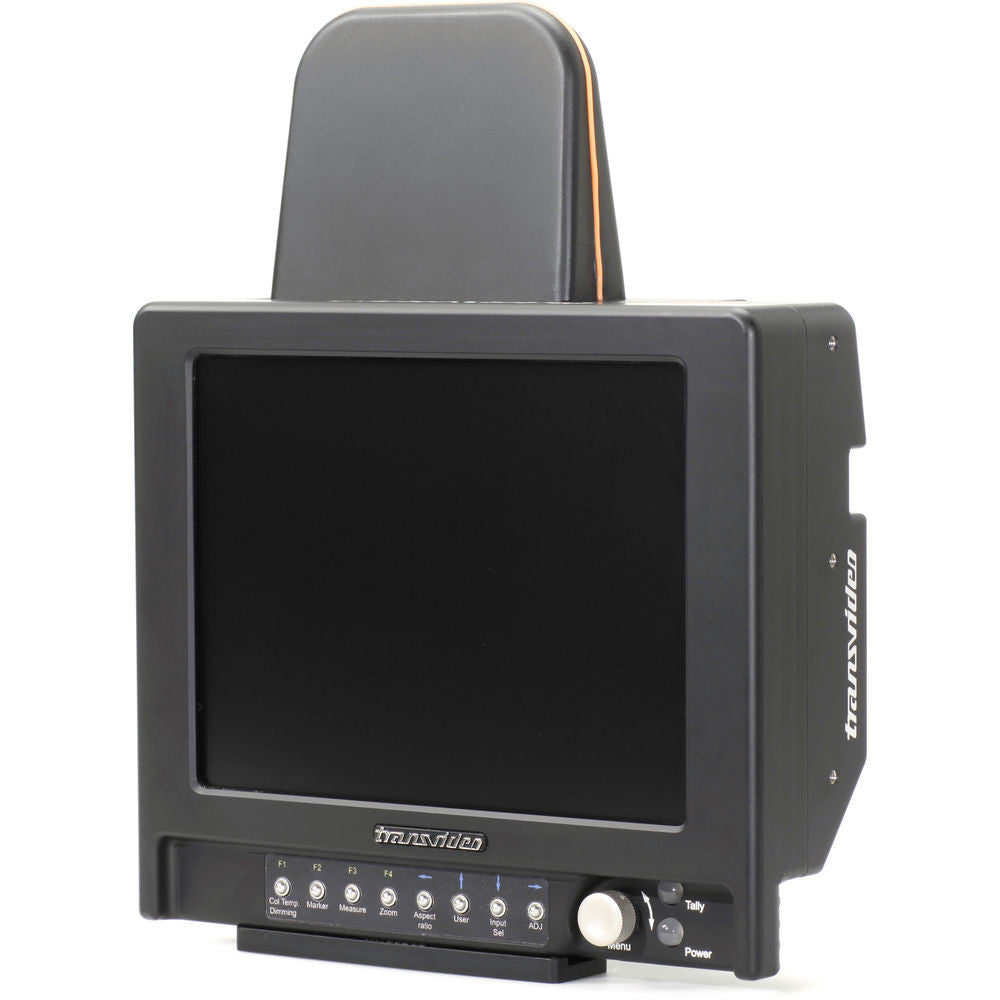

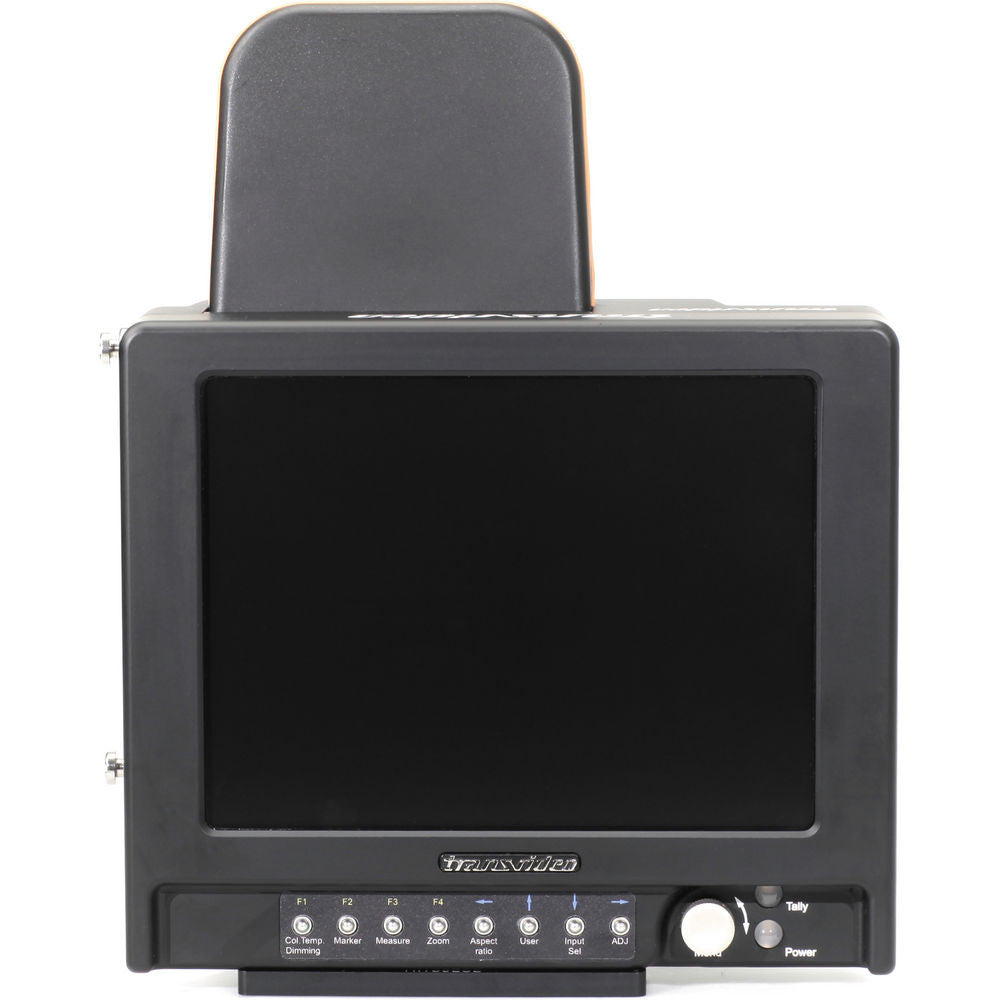

The Transvideo 8" CineMonitor HD8 SBL RF with V-Mount Battery�Mount features�the ability to receive a wireless signal from a TitanHD wireless video HD/SD transmission system. It works on the 5.8GHz ISM band that doesn't require a broadcast license.
The�monitor carries RGB and YCrCb 10-bit signal (HD SDI and HDMI) as well as SD SDI and composite.�It receives the signals�without any loss in a normal environment. With a latency below 5ms, it provides real-time SD/HD monitoring.

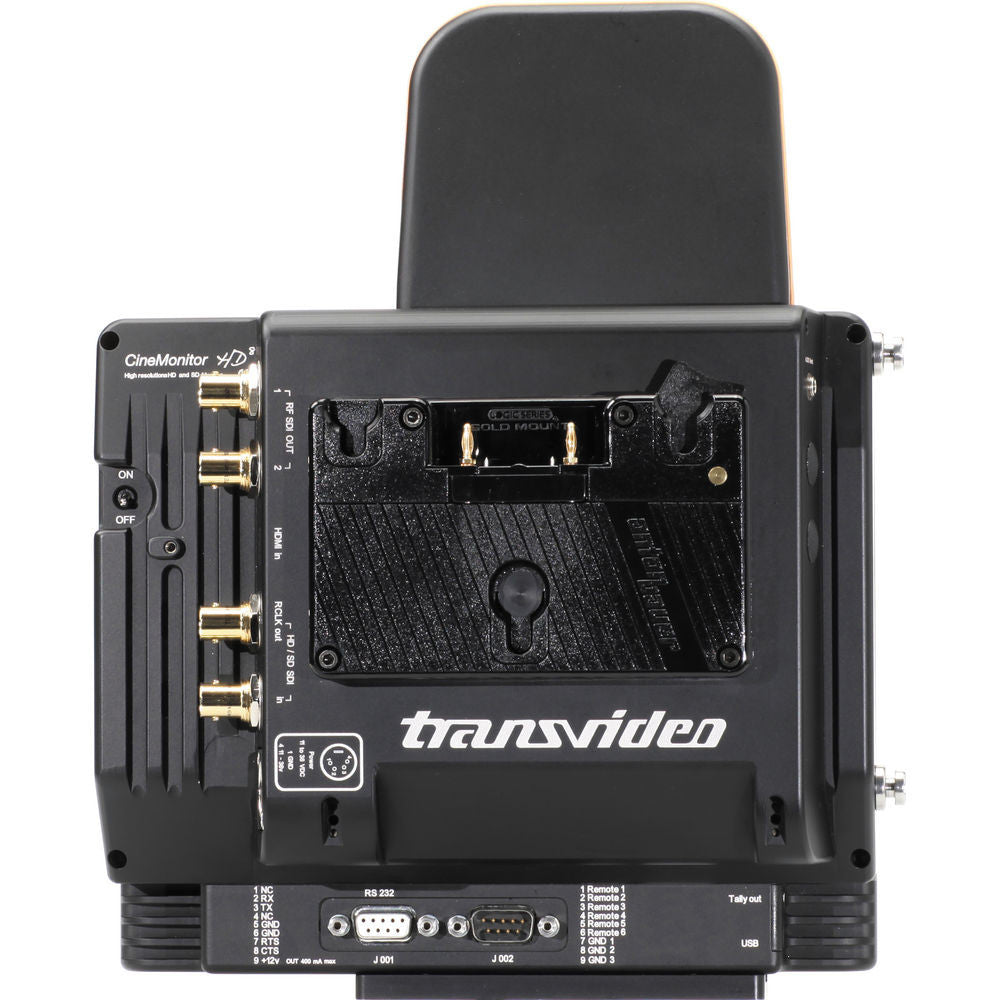

Equipped with�LED backlight technology the monitor outputs over 1,000 Nits for full sun operation. Firmware and software updates are possible�via the�USB key. The monitor can be powered by V-Mount�battery or by or by external DC source.
- Link
- The selection of a channel can be manual or automatic. In P2P mode the link is possible only between one receiver and one transmitter. In Broadcast mode up to 6 receivers can be linked to a single transmitter, but data transmission from receiver to transmitter (S/N ratio, GPIO) is not possible.
- Audio and Metadata Transmission
- CineMonitorHD RF includes an audio jack connector for audio monitoring. SDI embedded Timecode and Tally transmission are possible in place of one audio channel (if any embedded in the SDI).
- Monitoring Functions
- Diplay settings include: Aspect Ratio (16/9 and Anamorphic, 4:3 in SD), Fixed Markers (TV safe, 4:3 and 14/9), Zoom and Reframe, Image Flips and Monitor Reverse. Mutliple color adjustments are available: Colorimetry (D56/D65/manual calibration), Curves (LogC, LogF, PanaLog) and Gamma Adjust, Color / Green / B&W display modes, Blue Check.
- Picture Analysis
- High precision measurement tools include: Line Waveforms (Y, R, G, B), Parade Waveforms (RGB, GBR, YRGB, YPrPb), Frame Waveform with user-programmable clipping levels, histogram, vectorscope, exposure monitoring.
- Tools
- Standard tools include: Full Color Frameline and Matting Generator, Timecode, Embedded Audio Monitoring, Voltage Control, as well as Tri-Color Tally. Based on a high performance multi dimensional filter, the Focus Helper helps to have a sharp focus in difficult situations. The i/ Lens module reads and displays in a friendly user interface the data from Cooke S4/i & 5/i as well as Ang�nieux Zooms with ADS /i module.
- 2 x Shoulder Strap Pins
- Bottom Slide
- Screen Protective Cover
- Microfiber Cloth and Bag
- USB Adapter for SW Updates
- Pelican Case with Custom Shaped Foam
- Limited 1-Year Warranty
| Battery Mount | V-Mount |
| Video Input & Outputs | 1 x HD/SD SDI + 1 Rclk out (BNC) 1 x mini HDMI in 2 x HD/SD SDI RF out (BNC) |
| Audio Monitoring | Out: 1 x Jack 2.5 female |
| Modulation | Wireless: 5 GHz ISM band COFDM MiMo |
| Modes | P2P: 1 Tx to 1 Rx Broadcast: 1 Tx to 6 Rx |
| Channels | 10 |
| Contrast Ratio | Maximum 900:1 |
| Viewing Angle (H/V) | �80�, +60�/-80� |
| Brightness | 1000 Nits |
| Power | XLR4 connector (-1, +4) - with galvanic insulation |
| Power Consumption | 11 to 36 VDC, 28 W |
| Standards | |
|---|---|
| HD-SDI Input | SMPTE 292M 1280x720p @ 24, 25, 29.97, 30 Hz (SMPTE 296M)<br> 1280x720p @ 50, 59.94, 60 Hz (SMPTE 296M)<br> 1920x1080i @ 50, 59.94, 60 Hz (SMPTE 274M)<br> 1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz (SMPTE 274M)<br> 1920x1080p @ 23.97, 24, 25, 29.94, 30 Hz (SMPTE 274M) |
| SD-SDI Input | SMPTE 259M-C 720x487i @ 60Hz (SD SDI 525 - SMPTE 125M)<br> 720x576i @ 50Hz (SD SDI 625 - ITU-R BT.601) |
| CVBS | NTSC-M, NTSC-J, NTSC 4.43 PAL B/G H I D, PAL M, PAL N SECAM |
| HDMI | 720 x 480i @ 59.94, 60 Hz 720 x 576i @ 50 Hz 720 x 480p @ 59.94, 60 Hz 720 x 576p @ 50 Hz 1280 x 720p @ 50, 59.94, 60 Hz 1920 x 1080i @ 50, 59.94, 60 Hz 1920 x 1080psf @ 25, 29.97, 30 Hz 1920 x 1080p @ 23.97, 24, 25, 29.94, 30 H 720 x 480p @ 59.94, 60 Hz, and 720 x 576p @ 50 Hz not available in wireless mode. |
| Dimensions (LxHxD) | 8.5 x 11.0 x 4.2" (215.0 x 276.0 x 106.0 mm) |
| Weight | 4.6 lb (2,080.0 g) |
