Description

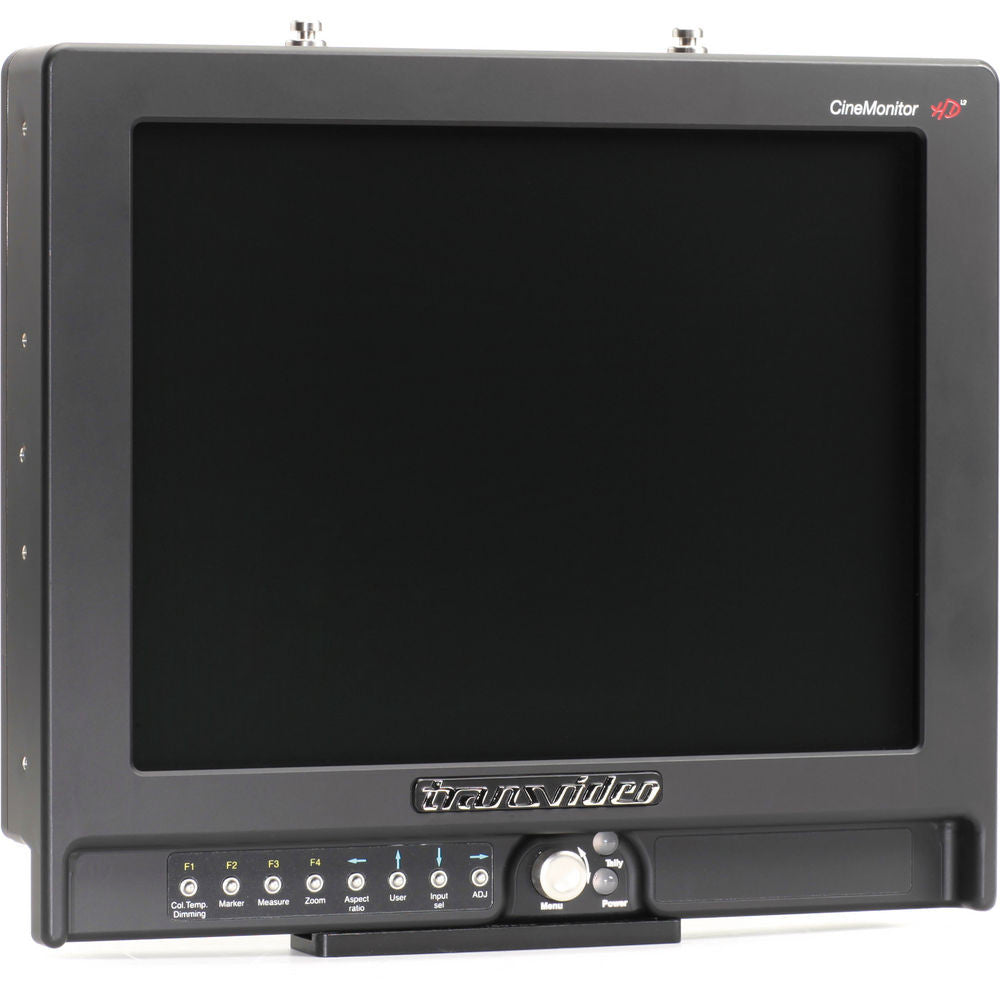

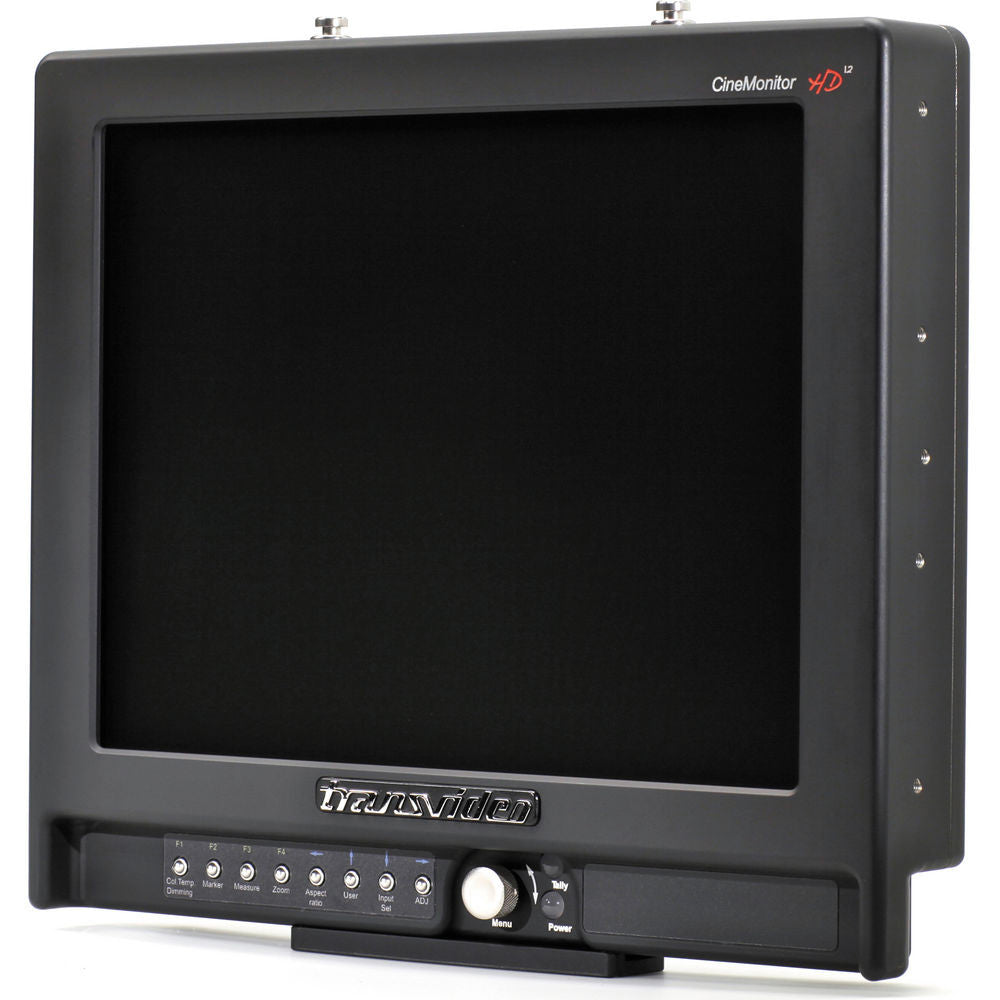

The Transvideo 12� CineMonitorHD12 SB Evolution SuperBright Monitor features RFR (RealFrameRate processing) technology and provides true monitoring of existing in-camera images with 1-frame delay or less. The processing technology displays clear images without aliasing or motion-blurs. The monitor is configured with HD / SD SDI, HDMI, and analog inputs, with automatic recognition of all standards.

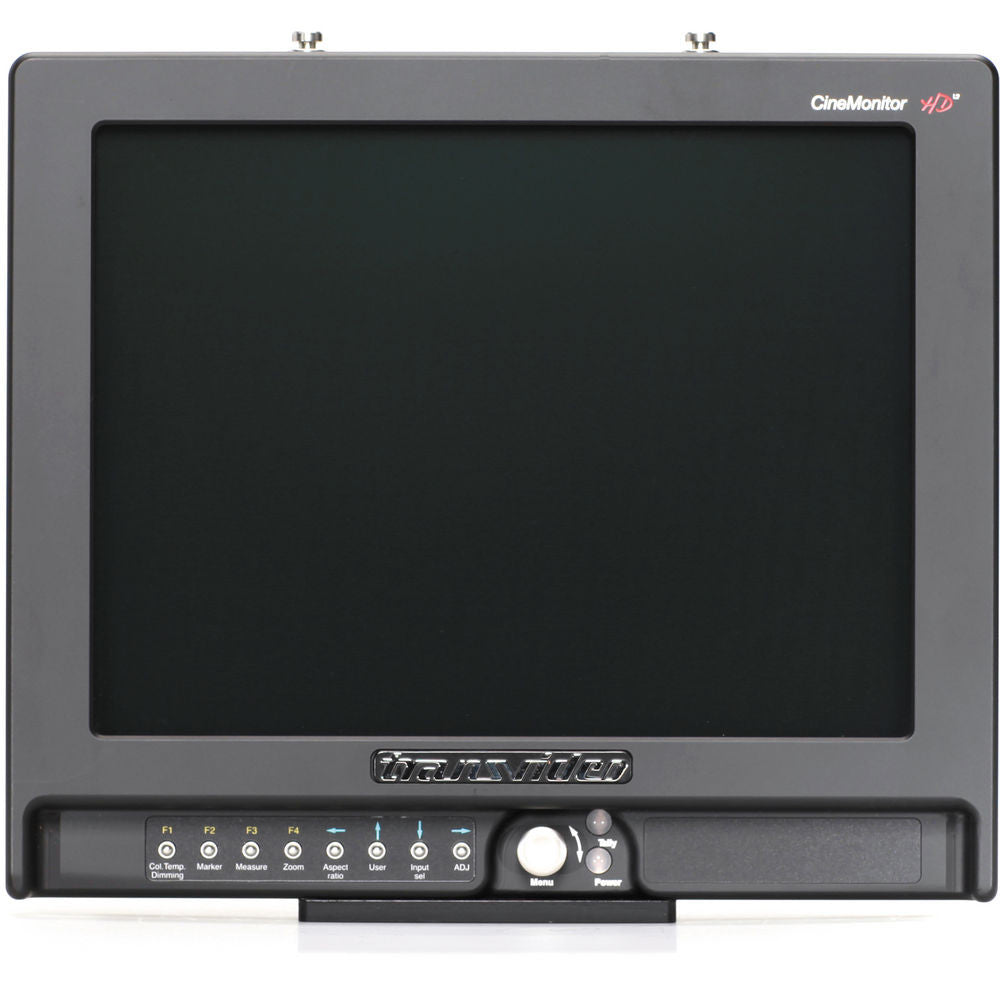

The user interface is very friendly and shows intuitive menus and direct access keys. The 4:3 screen is partitioned into 2 areas, a picture zone which displays the picture in 16:9 format and the tools and measurements which are displayed in the remaining free area of the screen.
The CineMonitorHD Evolution Monitor can be set in 2 operating modes either for outdoor viewing or color monitoring. In the Full Bright mode, details in both the dark areas and highlights are maintained even during full sunlight exposure without a hood.

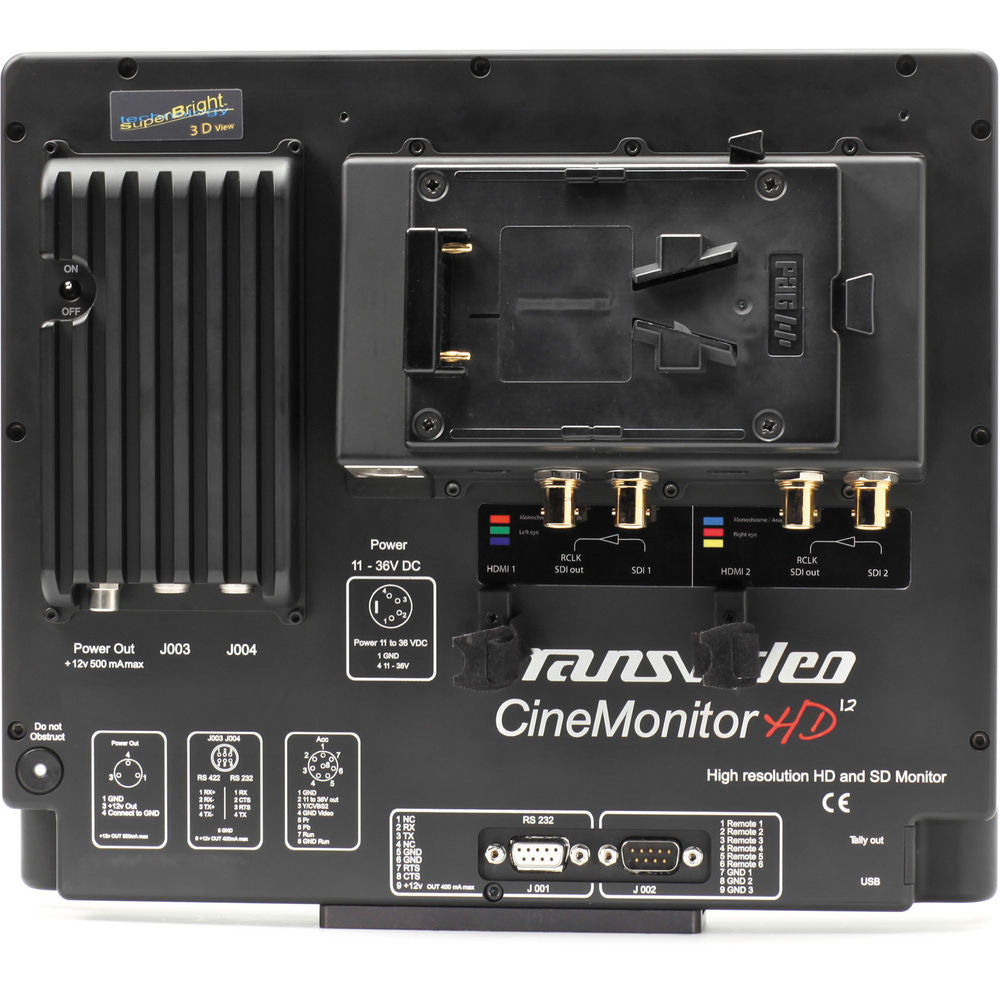

This monitor features an aluminum housing and optical glass that protect the screen. It also comes with a battery socket (V-Mount or Anton-Bauer). Furthermore, firmware and software updates are possible by using a USB key.
Color Adjustments
- Color calibration (D56 / D65 / manual), calibrated for full brightness
- Dimmer adjustment (Curves LogC, LogF, PanaLog)
- Gamma adjustment (Color / Green / B&W modes)
- Blue check
Picture Analysis
- Line waveforms (Y, R, G, B) / parade waveforms (RGB, GBR, YRGB, YPrPb) / frame waveforms with user-programmable clipping levels, detailed waveform with 70% overlay
- Luminance histogram
- Detailed vectorscope & phasemeter
- Exposure monitoring
Modes
- 3 anaglyph modes for 3D preview (Red / Cyan, Green / Magenta, or Blue / Yellow)
- 3D B&W mode to check lens correlation plus 3D color mode
- Monochrome mode (camera 1 in magenta, camera 2 in green) for fringes monitoring
Tools
- Full color frameline & matting generator
- Timecode display
- Audio monitoring
- Voltage control
- Tri-color & on-screen tally (including embedded SDI tally)
Advanced Tools
- Focus help tool (multi-color, adjustable level)
- Lens & CineTape data reader
- AvengerHorizon
Additional Features
- Horizontal and/or vertical flip/flop of input 1 and/or 2 (right or left eye) for beamsplitter rigs
- Programmable grid to check lens convergence
- Locating cross
- Measurement tools showing simultaneously the 2 signals for black level, white level, and flicker adjustment
- Color frameline & matting included
- Waveform YRGB, histogram, exposure analysis, white / black / mid-tone monitoring included
- Cooke / Agenieux lens interface
- Arri LDS display
- Audio analyzer & display
- 3D tools available in HD SDI 720p, 1080I, 1080Psf, 1080p, and HDMI
- 2 x Shoulder Strap Pin
- Bottom Slide
- Screen Protective Cover
- Microfiber Cloth & Bag
- 4.5 GHz HDTV BNC Cable (40")
- mini HDMI Cable
- USB Adapter for Software Updates
- Pelican Case with Custom-Shaped Foam
- Limited 2-Year Warranty on Parts & Labor
| Display | |
|---|---|
| Aspect Ratio | 16:9, 4:3, anamorphic 2.40:1 |
| Markers | Safe area, 4:3, 14:9 |
| Contrast Ratio | Maximum 500:1 |
| Viewing Angle | �80� H, +60 / -80� V |
| Brightness | 1,000 nits |
| Zoom | Zoom & Reframe: Pixel-to-pixel |
| Setting | Image flips & monitor reverse |
| Input | |
|---|---|
| Input | Video: 1 x HD / SD SDI + 1 Rclk out (BNC) 1 x CVBS + Loop (BNC) 1 x Accessory YPrPb / RGB / CVBS (Lemo8) 1 x mini HDMI HD-SDI: HD SDI (SMPTE 292M): 1280 x 720p at 24, 25, 29.97, 30 Hz (SMPTE 296M) 1280 x 720p at 50, 59.94, 60 Hz (SMPTE 296M) 1920 x 1080i at 50, 59.94, 60 Hz (SMPTE 274M) 1920 x 1080psf at 23.98, 24, 25, 29.97, 30 Hz (SMPTE 274M) 1920 x 1080p at 23.97, 24, 25, 29.94, 30 Hz (SMPTE 274M) |
| SD-SDI Input | SD SDI (SMPTE 259M-C): 720 x 487i at 60 Hz (SD SDI 525 - SMPTE 125M) 720 x 576i at 50 Hz (SD SDI 625 - ITU-R BT.601) |
| CVBS | NTSC-M, NTSC-J, NTSC 4.43 PAL B/G H I D, PAL M, PAL N SECAM |
| YPbPr Interface | ACC YPrPb / RGB: 720 x 480i at 60 Hz (SMPTE 253M) 720 x 576i at 50 Hz 1280 x 720p at 50, 59.94, 60 Hz 1920 x 1080i at 50, 59.94, 60 Hz (SMPTE 240M) 1920 x 1080psf at 25, 29.97, 30 Hz 1920 x 1080p at 23.97, 24, 25, 29.94, 30 Hz |
| HDMI | 720 x 480i & 720 x 480p at 59.94, 60 Hz (SMPTE 296M) 720 x 576i & 720 x 576p at 50 Hz (SMPTE 296M) 1280 x 720p at 50, 59.94, 60 Hz (SMPTE 296M) 1920 x 1080i at 50, 59.94, 60 Hz (SMPTE 274M) 1920 x 1080psf at 23.98, 24, 25, 29.97, 30 Hz (SMPTE 274M) 1920 x 1080p at 23.97, 24, 25, 29.94, 30 Hz (SMPTE 274M) |
| Power | XLR4 connector (-1, +4) with galvanic insulation |
| General | |
|---|---|
| Power Consumption | 10 to 36 VDC / 33 W |
| Dimensions (LxHxD) | 11.7 x 10.3 x 3.4" (297.1 x 261.6 x 86.3 mm) |
| Weight | 7.7 lb (3.4 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 17.15 lb |
| Box Dimensions (LxWxH) | 19.1 x 14.1 x 5.4" |
