Description
Translite Global TL-HE279 Overview

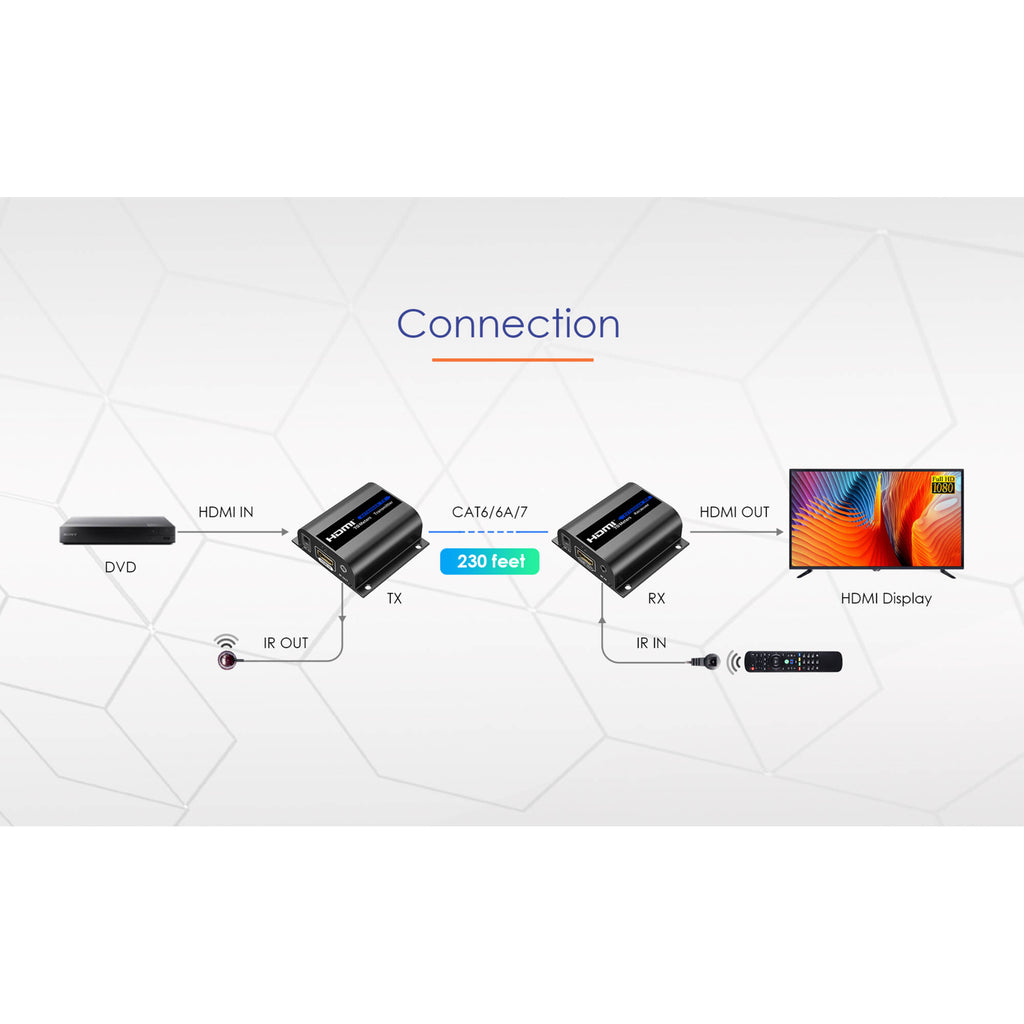

The TL-HE279 HDR Point-to-Point HDMI Extender Kit from Translite Global enables you to transmit one HDMI source to one display via network cables. It supports UHD 4K30 signals at transmission distances up to 130' and 1080p60 signals up to 230' over a Cat 6, 6A, or 7 network cable. This extender also supports bidirectional IR pass-through, RS-232 control, HDR10 dynamic range, and EDID pass-through.
HDMI Transmission

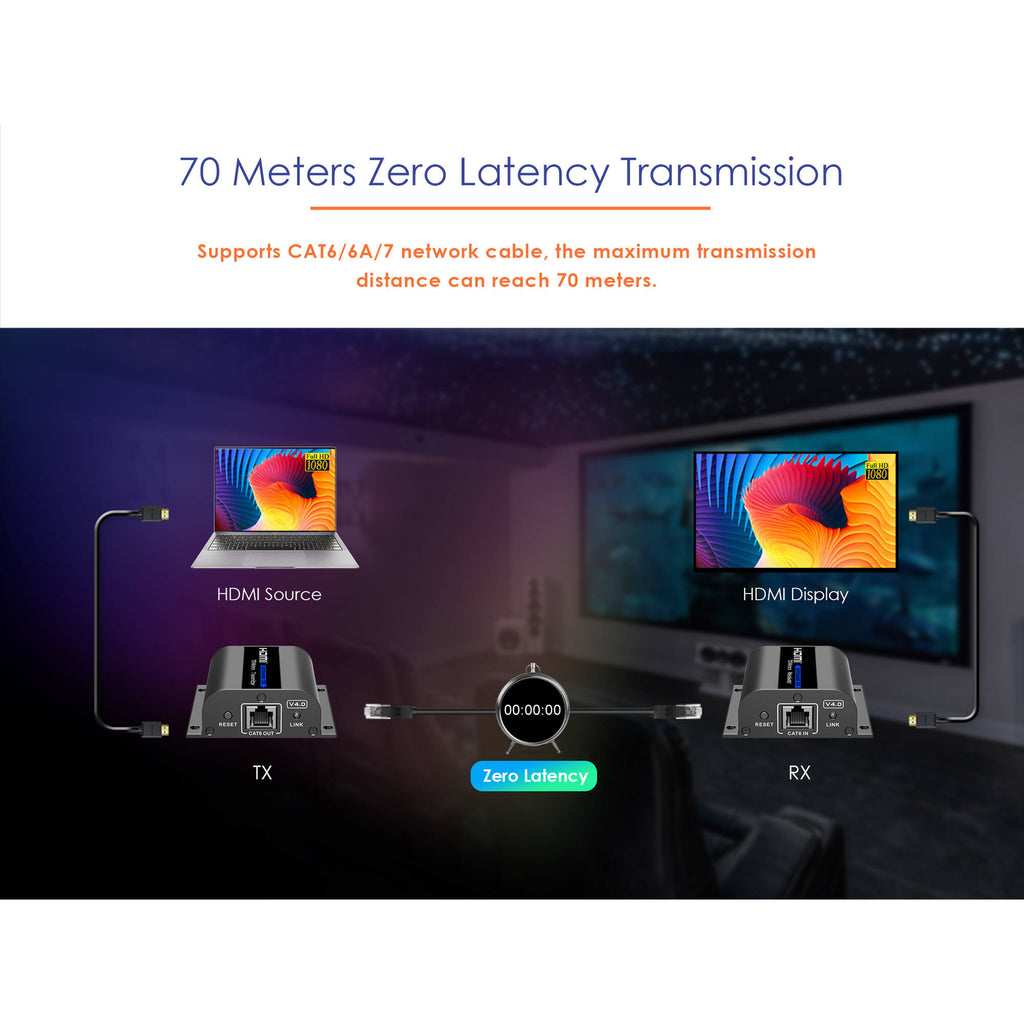

- Extends UHD 4K30 HDMI signals up to 131' and 1080p60 to 230' via Cat 6, 6A, or 7 cables.
- Provides support for HDR10, IR pass-through, and EDID pass-through.
UPC: 860004300762
In the Box

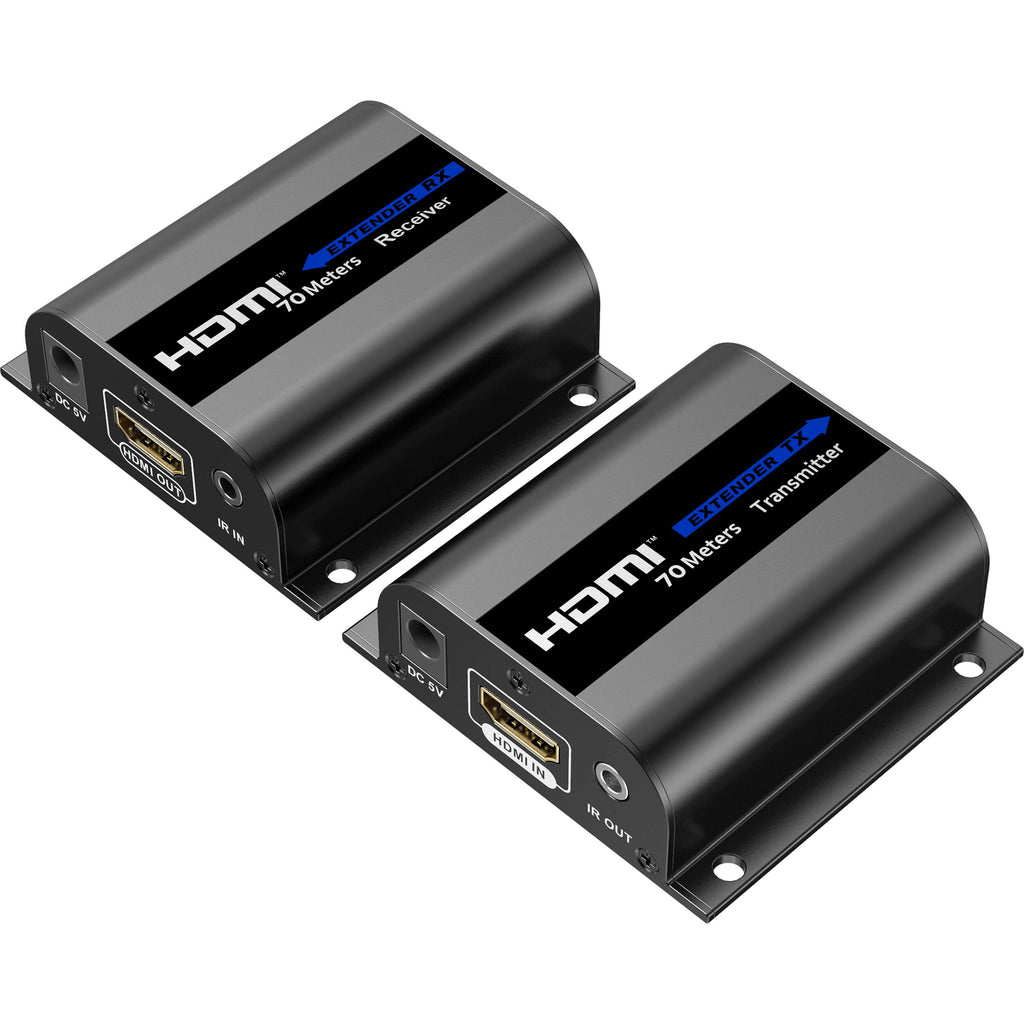

- Translite Global TL-HE279 HDR Point-to-Point HDMI Extender Kit (230')
- Limited 5-Year Warranty
Additional Resources
Translite Global TL-HE279Specs
Transmitter Interfaces
| Inputs |
1x HDMI (HDMI 1.4)
|
| Outputs |
1x RJ45
|
| Transmitter Other I/O |
1x 1/8" / 3.5 mm IR Output
|
Receiver Interfaces
| Inputs |
1x RJ45
|
| Outputs |
1x HDMI (HDMI 1.4)
|
| Receiver Other I/O |
1x 1/8" / 3.5 mm IR Input
|
Standards
| HDR Support |
Yes, HDR10
|
| HDCP Support |
Yes, Version 1.4
|
| EDID Support |
Yes
|
Transmission
| Max Transmission Distance |
1080p at 60 Hz:
229.7' / 70 m UHD 4K at 30 Hz: 131.2' / 40 m |
| Video Format |
HDMI
UHD 4K: 24/25/30 fps 1080p: 24/25/30/50/60 fps 1080i: 50/60 fps 720p: 50/60 fps 576p: 50 fps 576i: 50 fps 480p: 60 fps 480i: 60 fps |
| PC Resolutions |
1680 x 1050
1440 x 900 1366 x 768 1280 x 960 1024 x 768 800 x 600 |
| DTS Compatibility |
DTS, DTS-HD High Resolution
|
| Supported Cable Types |
Cat 6/6a/7
|
Power
| Transmitter Power I/O |
1x Barrel (5 VDC) Input
|
| Receiver Power I/O |
1x Barrel (5 VDC) Input
|
| Transmitter Power Consumption |
(1.5 W)
|
| Receiver Power Consumption |
(1.5 W)
|
General
| Operating Conditions |
-4 to 140°F / -20 to 60°C up to 90% Humidity
|
| Storage Conditions |
-22 to 158°F / -30 to 70°C
|
| Transmitter Dimensions |
2.8 x 2.6 x 1" / 71.6 x 66.6 x 24.8 mm
|
| Receiver Dimensions |
2.8 x 2.6 x 1" / 71.6 x 66.6 x 24.8 mm
|
| Transmitter Weight |
3 oz / 85 g
|
| Receiver Weight |
3 oz / 85 g
|
Packaging Info
| Package Weight |
0.965 lb
|
| Box Dimensions (LxWxH) |
8 x 5.9 x 3.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 9677.5 |
| 3-5 | ₹ 9578.75 |
| 5-10 | ₹ 9381.25 |
| 10+ | ₹ 9183.75 |
Bulk discount will be automatically applied during checkout based on quantity.
