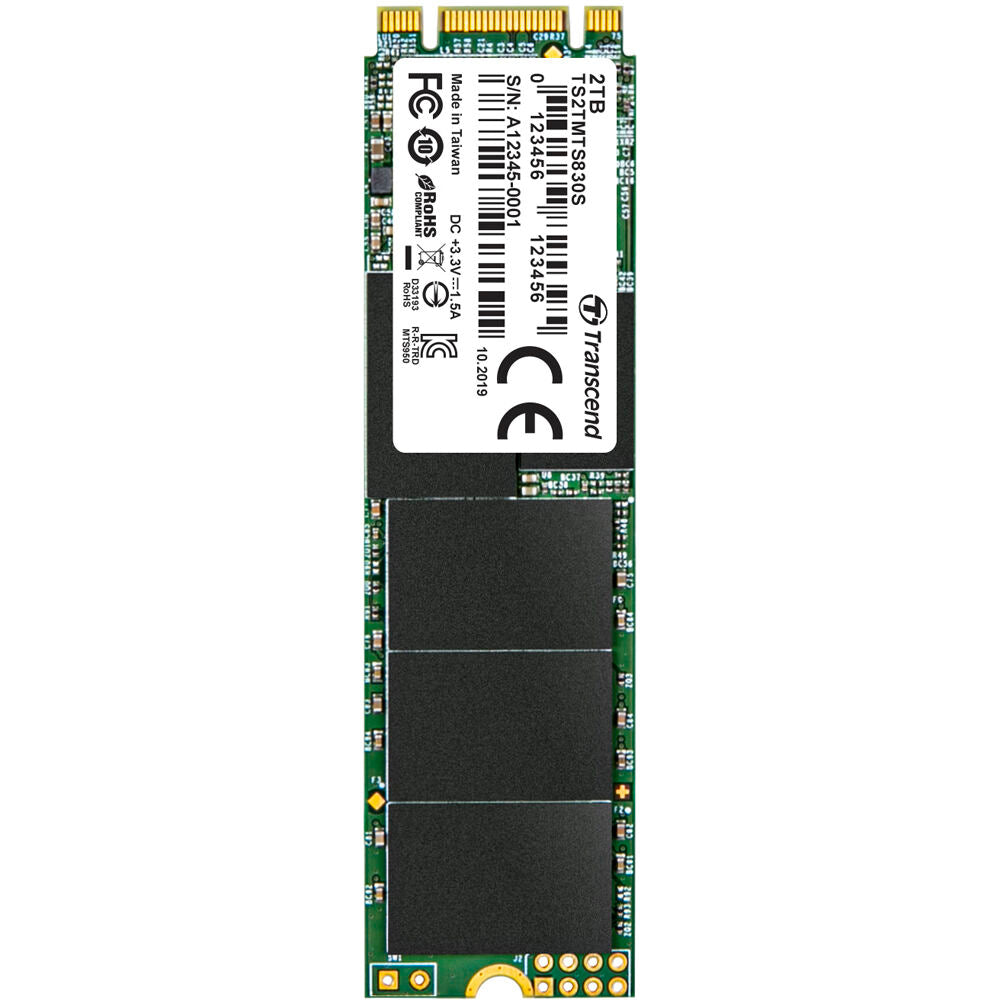

Increase the storage capacity of your desktop or laptop with the 830S 2TB SATA III M.2 SSD from Transcend. Whether you need extra room for your growing library of games or your work files, the 830S provides you with enough capacity to handle a multitude of programs and applications, making this ideal for anyone looking for some extra space.
The M.2 2280 form factor and SATA III interface provides read and write speeds up to 560 and 520 MB/s, respectively, giving you fast data transfer rates suitable for your needs. You can experience prolonged lifespan with 1120 Terabytes Written (TBW) endurance and up to 2 million-hour Meantime Between Failures (MTBF), giving you reliability suitable for your most important files and applications.
3D NAND Flash
The 830S uses 3D NAND Flash controller to store your data in a series of stacked memory layers and cells, giving you ample room for your most important files without compromising speed or endurance.
SMART Capabilities
Self-Monitoring, Analysis and Reporting Technology (SMART) detects and notifies you of various indicators of drive reliability while actively anticipating imminent hardware failures, allowing you to take preventative action to prevent data loss
TRIM Support
Make the most out of your space with TRIM support. This command allows your operating system to inform the drive which blocks of data are not in use and can be wiped internally, enhancing read and writes speeds and preventing stagnant data from hampering performance.
LDPC Coding
Engineered with Low-Density Parity Check (LDPC) coding ensures secure data and stability throughout the lifespan of the SSD.
SSD Scope
Included with the 220S is an advanced, user-friendly software that monitors the health of your drive while optimizing performance.
DDR3 DRAM Cache
Sporting dedicated DDR3 DRAM cache, data is quickly accessed with ease. This DRAM cache directs the system to your data, creating an efficient system in which information can be quickly read and written.
In the Box
- Transcend 830S 2TB SATA III M.2 SSD
- Limited 5-Year Warranty
Table of Contents
- Description
- 3D NAND Flash
- SMART Capabilities
- TRIM Support
- LDPC Coding
- SSD Scope
- DDR3 DRAM Cache
Transcend 830S Internal SSD Specs
Performance
| Interface |
SATA III (6 Gb/s) |
| Write Speed |
Random: 85,000 IOPS
Sequential: 520 MB/s |
| Read Speed |
Random: 90,000 IOPS
Sequential: 560 MB/s |
Physical
| Drive Type |
SSD |
| Form Factor |
M.2 2280 |
| Flash Memory Type |
3D NAND |
| SMART Support |
Yes |
| TRIM Support |
Yes |
Reliability / Data Integrity
| Endurance (Total Bytes Written) |
1120 TB |
| Mean Time Between Failures (MTBF) |
2.0 Million Hours |
Electrical
| Supported Voltage |
3.3 VDC |
Environmental
| Operating Temperature |
32 to 158°F / 0 to 70°C |
General
| Certifications |
BSMI, CE, FCC, RCM, as per Manufacturer |
| Dimensions (W x H x D) |
3.1 x 0.9 x 0.14" / 80 x 22 x 3.58 mm |
| Weight |
0.3 oz / 9 g |
| Warranty Length |
Limited 5-Year Warranty |
