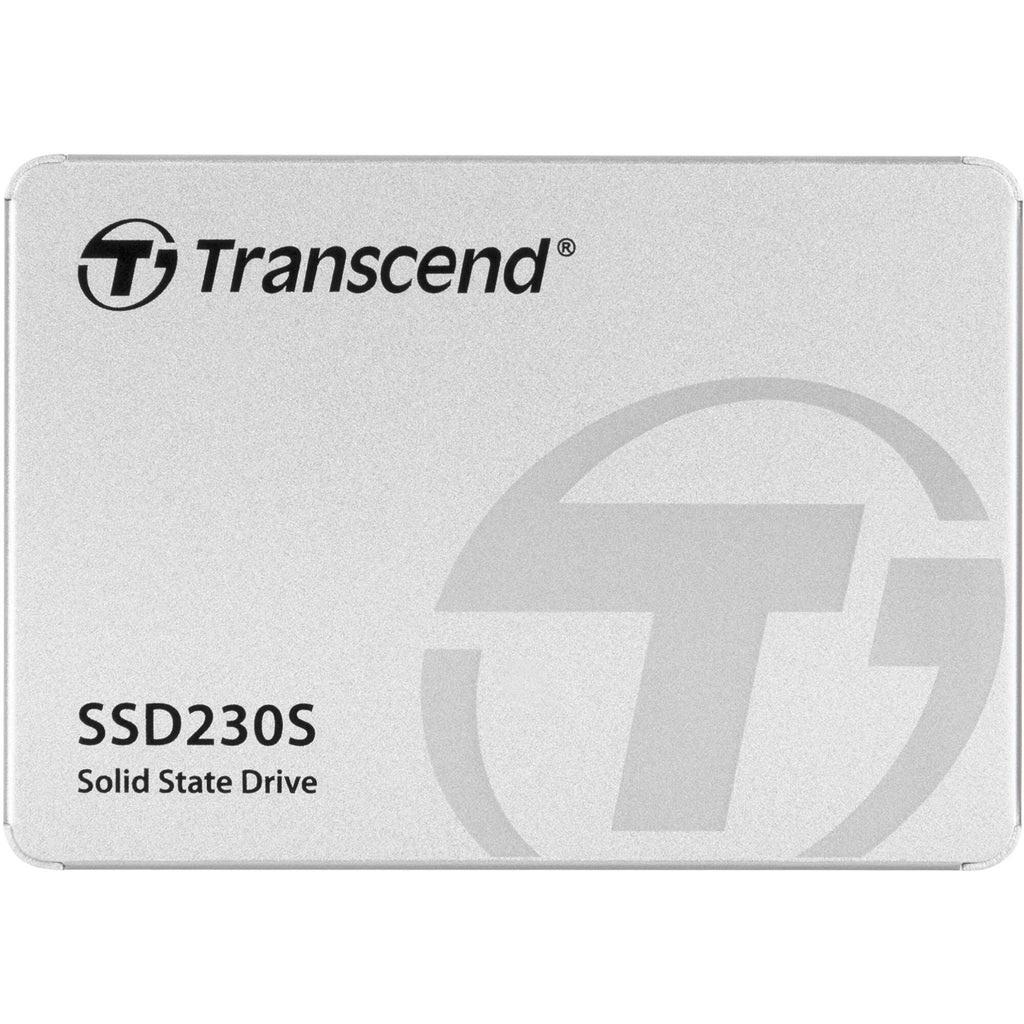

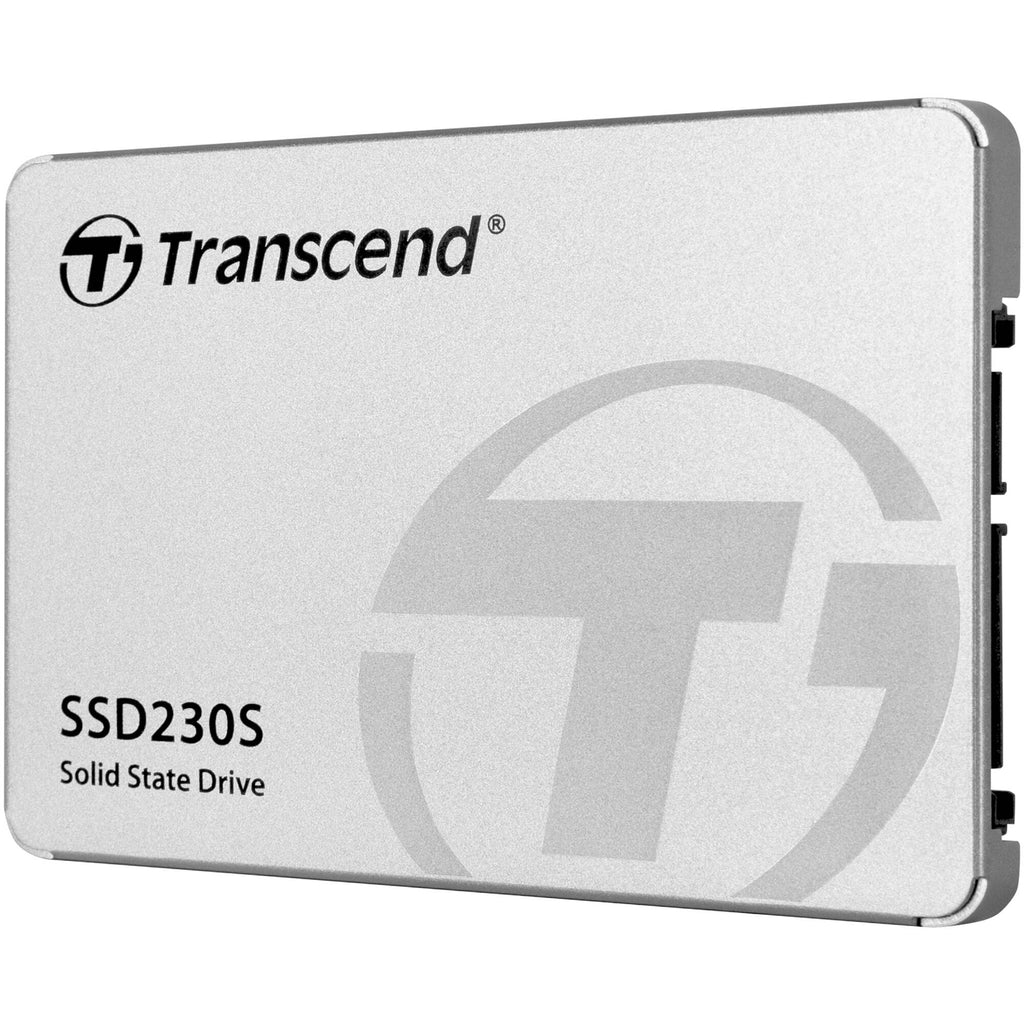

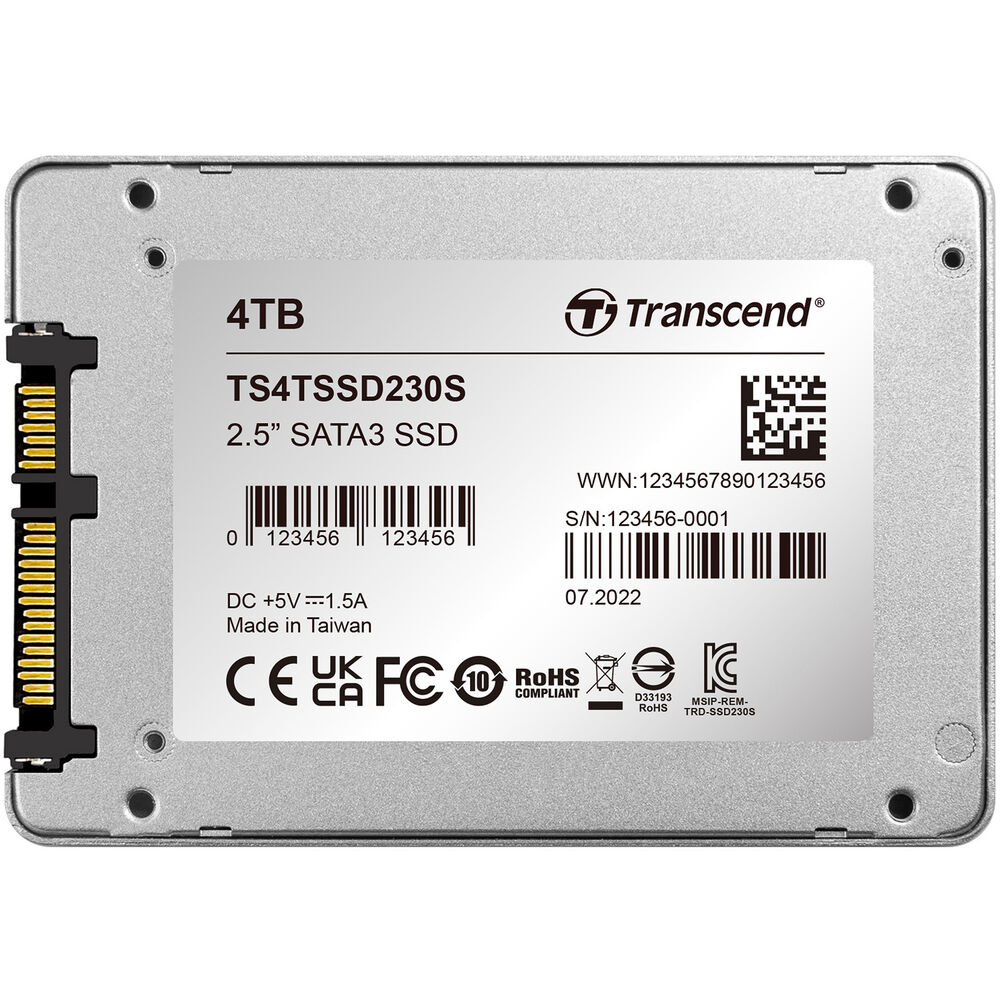

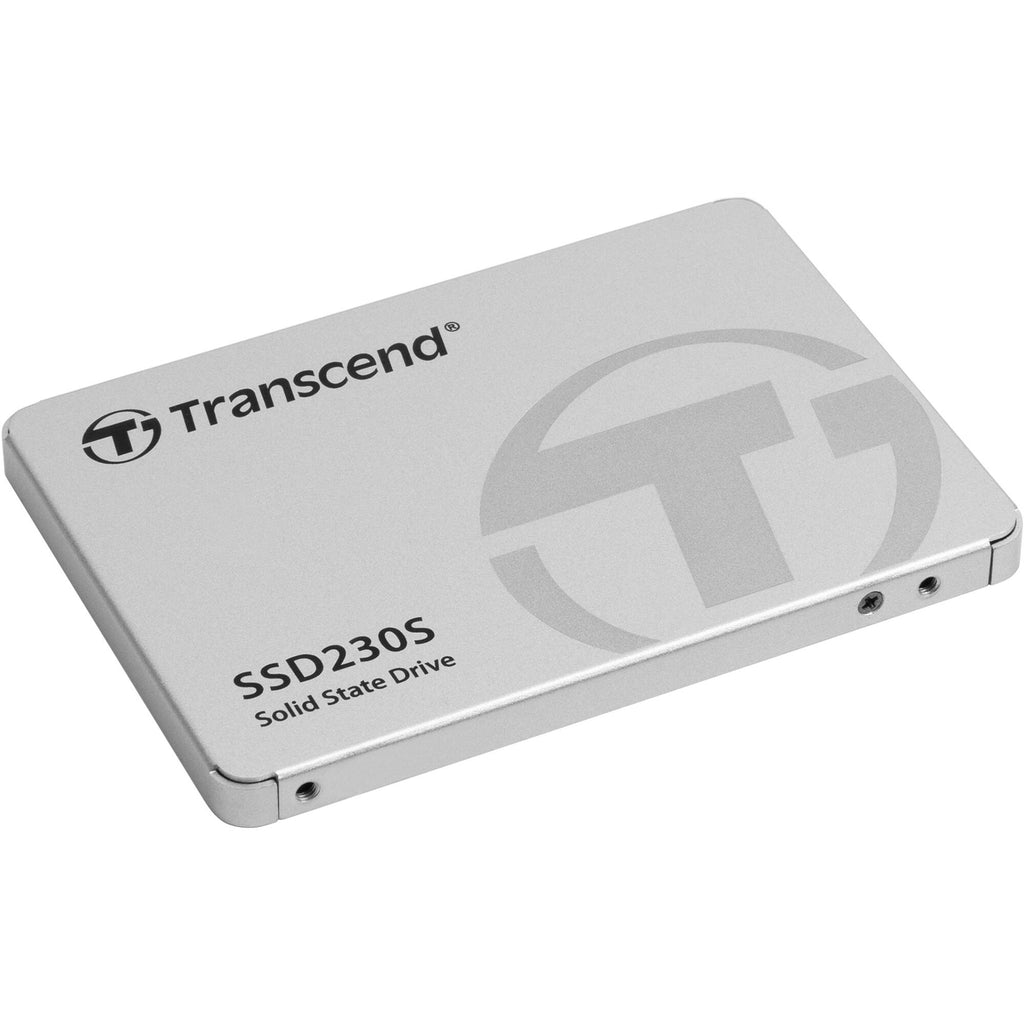

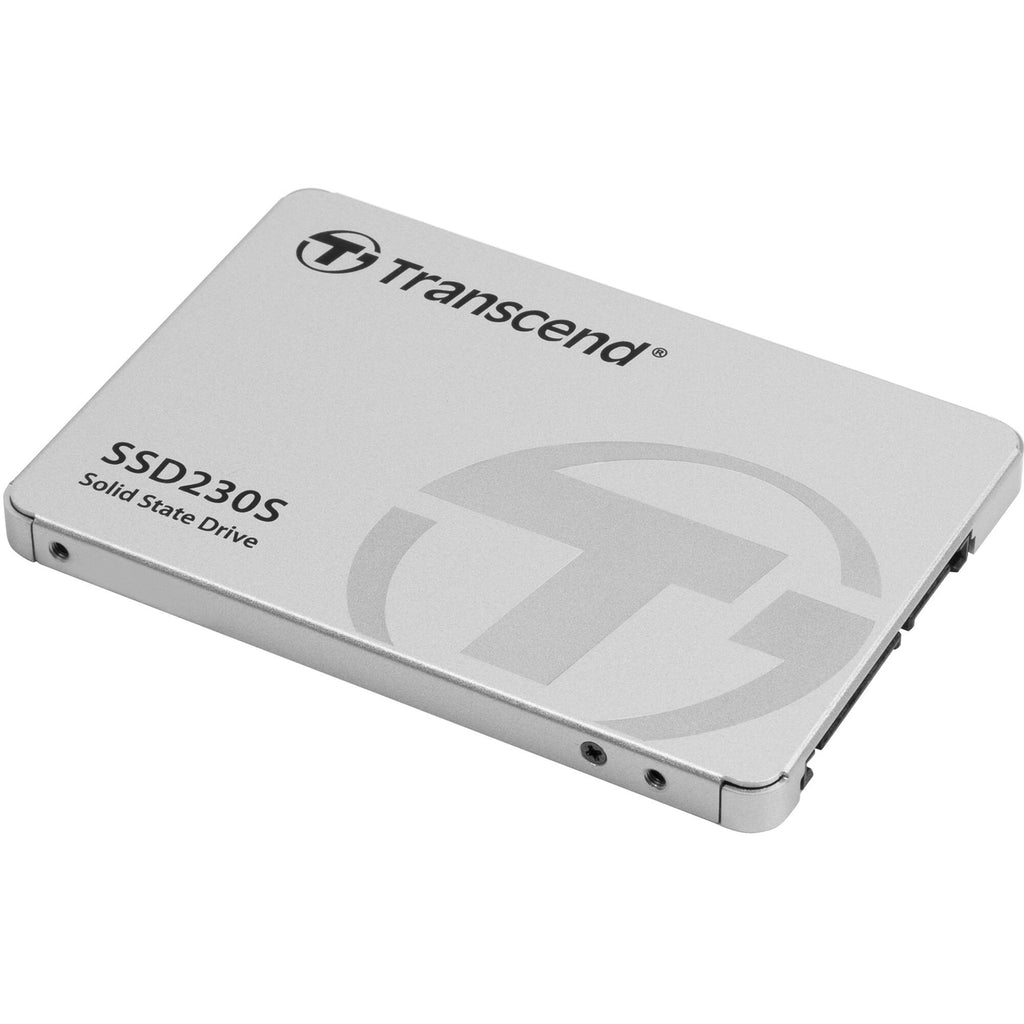

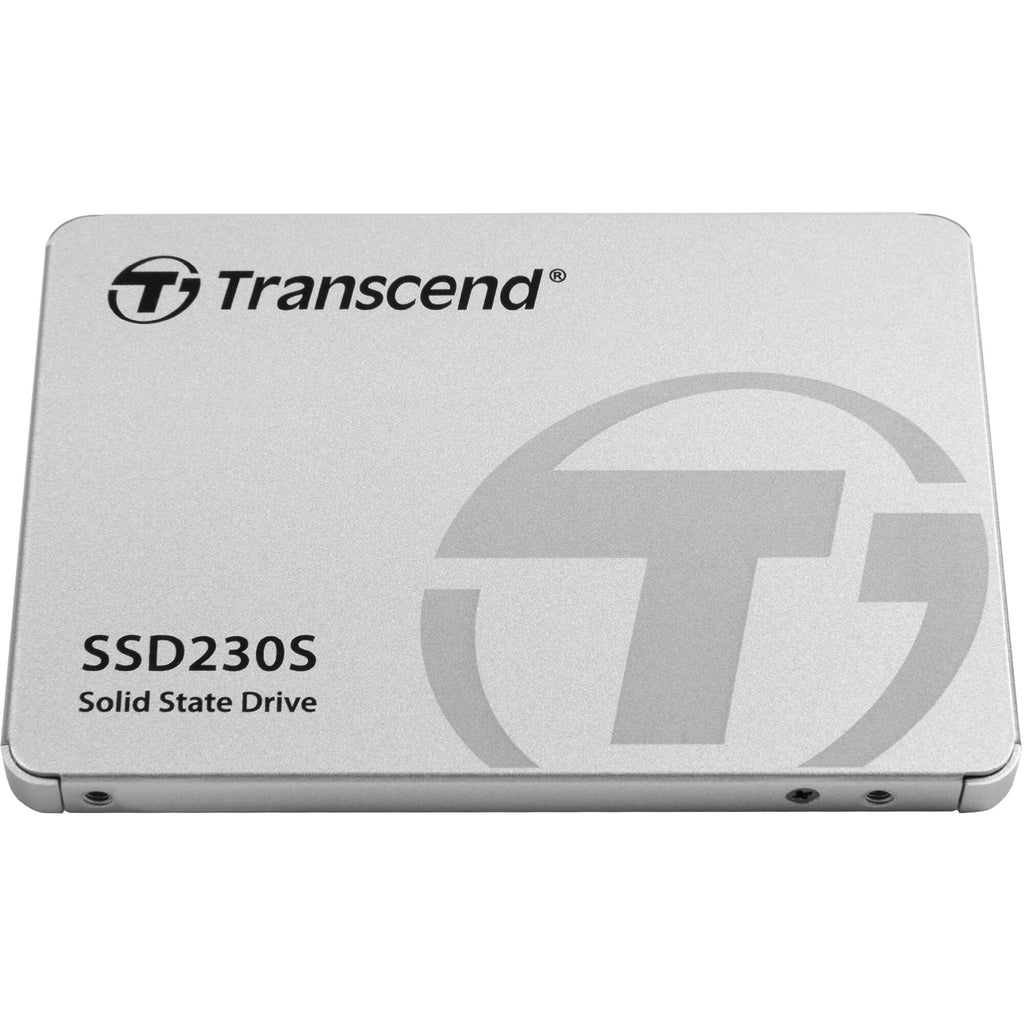

Transcend SSD230S Internal SSD Overview
-
1Description
-
23D NAND Flash
-
3DDR3 DRAM Cache
-
4Endurance & Reliability
-
5Save Power & Time
-
6SSD Scope
By Photo's
Steven Esposito
Add extra storage to your system with the 4TB SSD230 SATA III 2.5" Internal SSD from Transcend. This 2.5" solid-state drive features a SATA III 6Gb/s interface and provides you with read and write speeds of up to 560 MB/s and 520 MB/s respectively. With a SSD, you'll be able to boot up and load applications within seconds. Moreover, since this drive only measures 6.8mm tall, it's compatible with desktops and most laptops, providing them with a performance boost.
Unlike 2D planar NAND, 3D NAND flash memory cells are stacked vertically in multiple layers, which offer better performance and endurance.
The SSD230 is equipped with DDR3 DRAM cache to help improve read and write speeds. It's capable of up to 340 MB/s on 4K random read and write tests. For non-4K content, it can reach read and write speeds of up to 560 MB/s and 520 MB/s respectively via its SATA III 6 Gb/s interface.
Built with RAID engine and LDPC (Low-Density Parity Checking) coding, a powerful error checking algorithm, the SSD230 keeps your data secure while ensuring data integrity.
The SSD230 features SATA Device Sleep Mode (DevSleep), which turns off the drive when it's not in use to prolong your notebook's battery life. With a response time of less than 20 milliseconds, you'll be able to get back to work almost instantly.
Transcend's SSD Scope software, available as an optional download, lets you monitor the drive's health with S.M.A.R.T technology, enable the TRIM command for optimum write speeds, keep the drive's firmware up to date, and even migrate data from your original drive to a new one.
In the Box
- Transcend 4TB SSD230 SATA III 2.5" Internal SSD
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- 3D NAND Flash
- DDR3 DRAM Cache
- Endurance & Reliability
- Save Power & Time
- SSD Scope
Transcend SSD230S Internal SSD Specs
Storage Capacity |
Total: 4 TB SATA III (6 Gb/s) 2.5" (7 mm) SSD |
Read Speed |
Sequential: 560 MB/s Random: 90,000 IOPS 4 kB Files |
Write Speed |
Sequential: 520 MB/s Random: 85,000 IOPS 4 kB Files |
Buffer |
None |
SSD Specs
Flash Memory Type |
Tri-Level Cell (TLC) |
Reliability / Data Integrity
Encryption |
None |
Endurance (Total Bytes Written) |
2240 TB |
Environmental
Operating Temperature |
32 to 158°F / 0 to 70°C |
General
Certifications |
BSMI, CE, FCC *as per Manufacturer |
Dimensions |
3.94 x 2.75 x 0.28" / 100.08 x 69.85 x 7.11 mm |
Weight |
1.87 oz / 53 g |
Packaging Info
Package Weight |
0.155 lb |
Box Dimensions (LxWxH) |
7.1 x 5.05 x 0.35" |
