Transcend 830S Internal SSD Overview
-
1Description
-
23D NAND Flash
-
3SMART Capabilities
-
4TRIM Support
-
5LDPC Coding
-
6SSD Scope
-
7DDR3 DRAM Cache

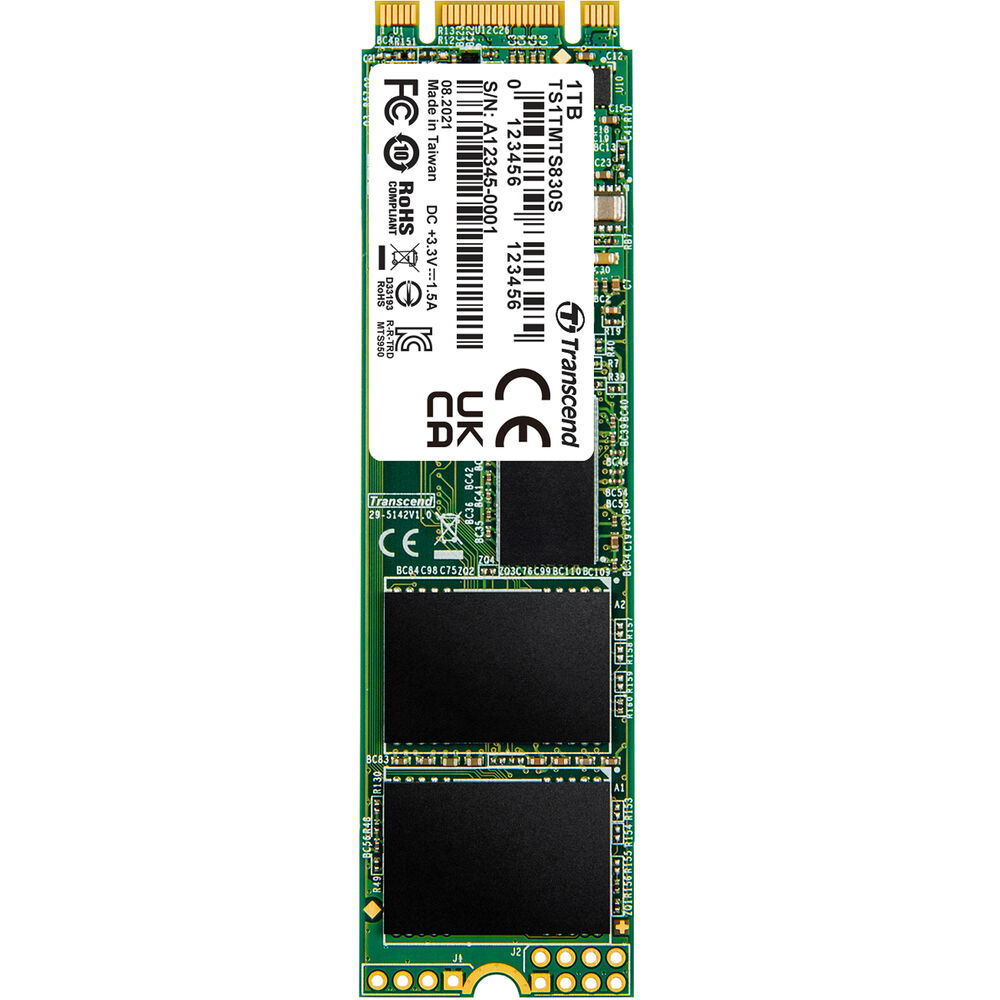

Increase the storage capacity of your desktop or laptop with the 1TB 830S SATA III M.2 SSD from Transcend. Whether you need extra room for your growing library of games or your work files, the 830S provides you with enough capacity to handle a multitude of programs and applications, making this ideal for anyone looking for some extra space.
The M.2 2280 form factor and SATA III interface provides read and write speeds up to 560 and 520 MB/s, respectively, giving you fast data transfer rates suitable for your needs. You can experience prolonged lifespan with 1120 Terabytes Written (TBW) endurance and up to 2 million-hour Meantime Between Failures (MTBF), giving you reliability suitable for your most important files and applications.
The 830S uses 3D NAND Flash controller to store your data in a series of stacked memory layers and cells, giving you ample room for your most important files without compromising speed or endurance.
Self-Monitoring, Analysis and Reporting Technology (SMART) detects and notifies you of various indicators of drive reliability while actively anticipating imminent hardware failures, allowing you to take preventative action to prevent data loss
Make the most out of your space with TRIM support. This command allows your operating system to inform the drive which blocks of data are not in use and can be wiped internally, enhancing read and writes speeds and preventing stagnant data from hampering performance.
Engineered with Low-Density Parity Check (LDPC) coding ensures secure data and stability throughout the lifespan of the SSD.
Included with the 220S is an advanced, user-friendly software that monitors the health of your drive while optimizing performance.
Sporting dedicated DDR3 DRAM cache, data is quickly accessed with ease. This DRAM cache directs the system to your data, creating an efficient system in which information can be quickly read and written.
Table of Contents
- Description
- 3D NAND Flash
- SMART Capabilities
- TRIM Support
- LDPC Coding
- SSD Scope
- DDR3 DRAM Cache
Transcend 830S Internal SSD Specs
| Storage Capacity |
Total: 1 TB SATA III (6 Gb/s) M.2 2280 SSD |
| Read Speed |
Random: 90,000 IOPS
Sequential: 560 MB/s |
| Write Speed |
Random: 85,000 IOPS
Sequential: 520 MB/s |
SSD Specs
| Flash Memory Type |
3D NAND |
| SMART Support |
Yes |
| TRIM Support |
Yes |
Reliability / Data Integrity
| Encryption |
None |
| Endurance (Total Bytes Written) |
1120 TB |
| Mean Time Between Failures (MTBF) |
2.0 Million Hours |
Electrical
| Supported Voltage |
3.3 VDC |
General
| Certifications |
BSMI, CE, FCC, RCM
*as per Manufacturer |
| Dimensions |
3.1 x 0.9 x 0.14" / 80 x 22 x 3.58 mm |
| Weight |
0.3 oz / 9 g |
Packaging Info
| Package Weight |
0.045 lb |
| Box Dimensions (LxWxH) |
5.05 x 3.95 x 0.35" |
