Description

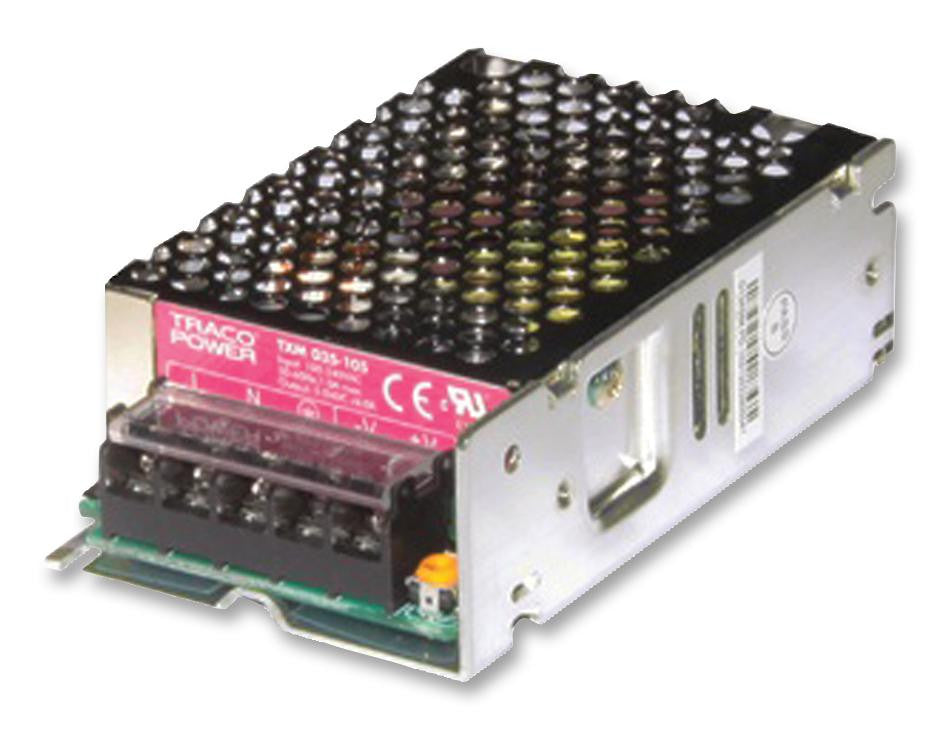

The TXM series encased Power Supply designed with a low profile metal case and screw terminal block connection, it is easy to install in any equipment.
- Screw terminal block
- Universal input AC input, full range
- Adjustable output voltage
- High operating temperature up to 70°C
- Low no load power consumption <0.5W up to 75 W units
- No internal fan up to 150W models
- Withstand 300VAC surge input for 5 seconds
Applications
Power Management
Product details
Power Supply Output Type | Adjustable, Fixed |
Output Power Max | 35W |
No. of Outputs | 1Outputs |
Output Voltage - Output 2 | - |
Output Current - Output 2 | - |
Input Voltage AC Max | 264V |
Input Voltage AC Min | 90V |
Product Range | TXM Series |
Output Voltage - Output 3 | - |
Output Voltage - Output 1 | 15V |
Output Current - Output 3 | - |
Output Current - Output 4 | - |
Output Voltage - Output 4 | - |
Output Current - Output 1 | 2.4A |
Other details
Brand | TRACOPOWER |
Part Number | TXM 035-115 |
Quantity | Each |
Technical Data Sheet EN |
