Description

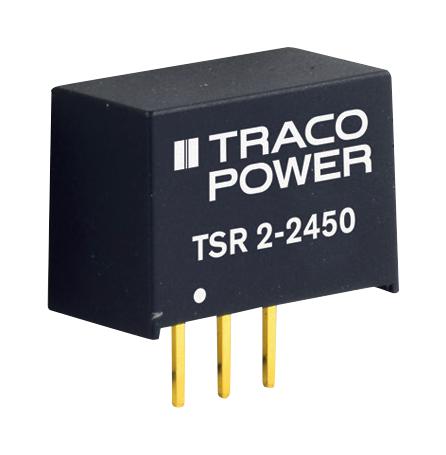

This is a Non Isolated POL DC/DC Converter, ITE, 1 Output, 10 W, 5 V, 2 A, Fixed product from TRACOPOWER with the model number TSR 2-2450
Product details
| Power Supply Applications | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 10W |
| Output Voltage Nom. | 5V |
| Output Current Max | 2A |
| DC / DC Converter Output Type | Fixed |
| DC / DC Converter Mounting | Through Hole |
| Input Voltage DC Min | 6.5V |
| Input Voltage DC Max | 36V |
| DC / DC Converter Type | SIP |
| Depth | 14mm |
| Width | 7.5mm |
| Height | 10.1mm |
| Product Range | TSR 2 Series |
Other details
| Brand | TRACOPOWER |
| Part Number | TSR 2-2450 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| CAD Multiple Formats EN | |
