The TSR 1-2418 is a 1-output 1.8W through-hole-mount non-isolated step-down Switching Regulator for inefficient 78xx linear regulators. A high efficiency up to 96% allows full load operation up to +60?C ambient temperature without the need of any heat-sink or forced cooling. The TSR-1 drop-in replacement switching regulator provide other significant features over linear regulators, i.e. better output accuracy (?2%), lower standby current of 2mA and no requirement of external capacitors. The high efficiency and low standby power consumption makes these regulators an ideal solution for many battery powered applications.
- High performance
- No heat-sink required
- Low standby current
- Short circuit protection
- Low output ripple and noise
- Built-in filter capacitors
- Excellent line/load regulation
Applications
Signal Processing, Power Management
Product details
| Power Supply Approvals |
ITE |
| No. of Outputs |
1 Output |
| Output Power Max |
1.8W |
| Output Voltage Nom. |
1.8V |
| Output Current Max |
1A |
| DC / DC Converter Output Type |
Fixed |
| DC / DC Converter Mounting |
Through Hole |
| Input Voltage DC Min |
4.6V |
| Input Voltage DC Max |
36V |
| DC / DC Converter Type |
SIP |

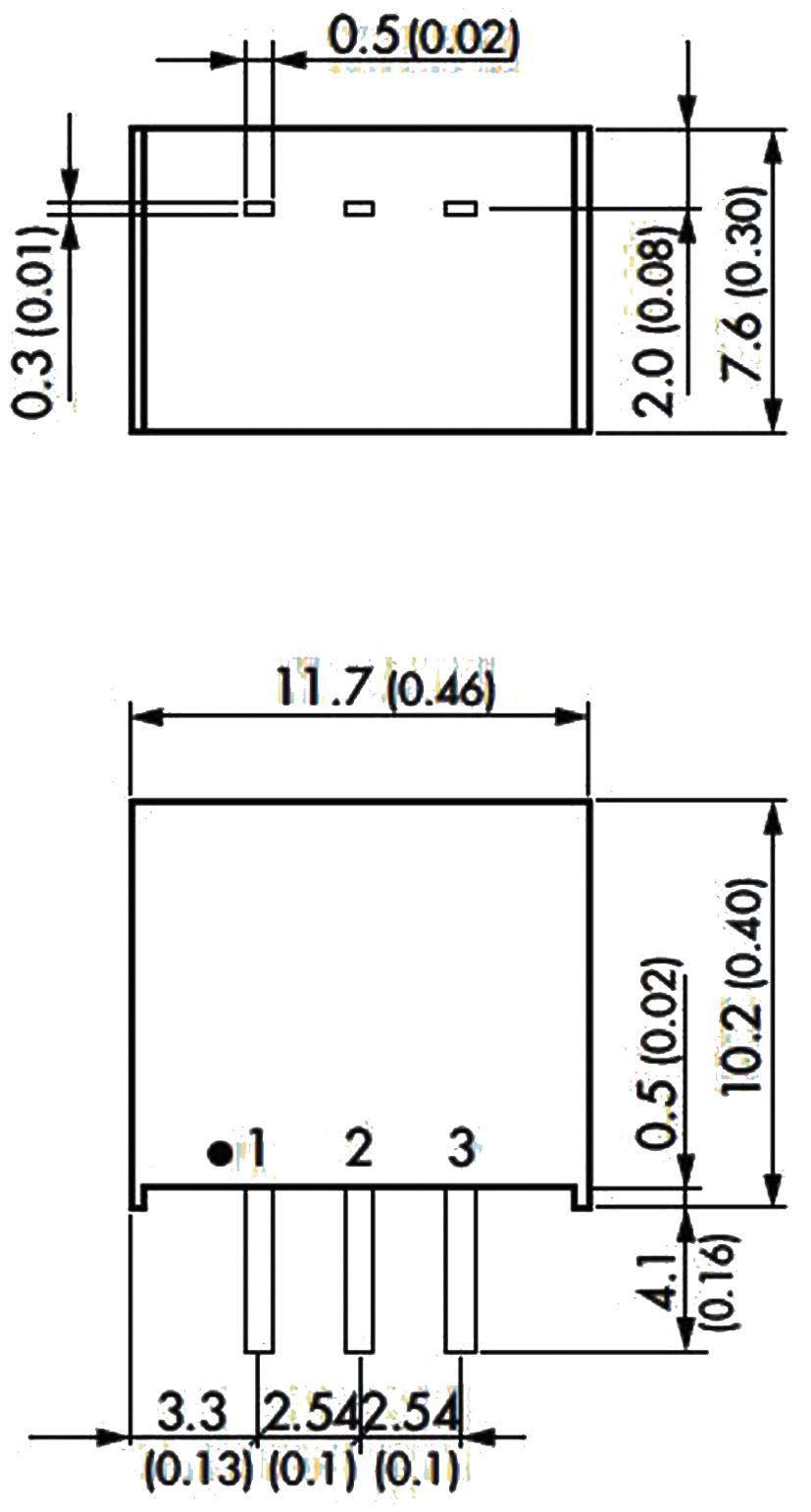

| Depth |
11.5mm |
| Width |
7.6mm |
| Height |
10.2mm |
| Product Range |
TSR 1 Series |
Other details
| Brand |
TRACOPOWER |
| Part Number |
TSR 1-2418 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Technical Data Sheet EN |
|
| CAD Multiple Formats EN |
|
| Miscellaneous EN |
|
