Description

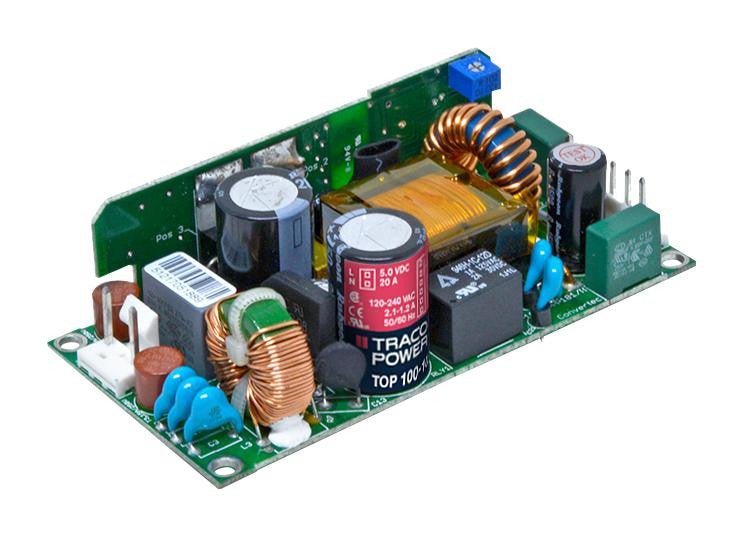

The TOP 100-124 is a 24V/100W AC/DC Power Supply feature the highest power rating in the industry standard 2 x 4-inch footprint. It can supply up to 100W output power with convection cooling over an industrial operating temperature range of -25 to 50�C. This performance could be realized by a state of the art design providing an extremely high efficiency of >90% which eliminates the need for a dedicated power supply cooling fan. TOP-100-series, high reliability is provided by use of industrial quality grade components and an excellent thermal management.
- Low leakage current
- Safety class-l and class-II operation
- -25 to 70�C Operating temperature range
Applications
Commercial, Industrial, Consumer Electronics
Product details
| Power Supply Output Type | Adjustable, Fixed |
| Output Power Max | 100W |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Input Voltage AC Max | 264V |
| Input Voltage AC Min | 90V |
| Product Range | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 24V |
| Output Current - Output 3 | - |
| Output Current - Output 4 | - |
| No. of Outputs | 1 Output |
| Output Voltage - Output 4 | - |
| Output Current - Output 1 | 4.2A |
Other details
| Brand | TRACOPOWER |
| Part Number | TOP 100-124 |
| Quantity | Each |
| Technical Data Sheet EN |  |
