Description
The TMR 3 series single/dual-output 3W isolated DC/DC Converter with regulated output, featuring wide 2:1 input voltage ranges. An excellent efficiency allows -40 to 85�C operation temperatures. Further features include remote ON/OFF control and continuous short-circuit protection. The compact dimensions of this converter make it an ideal solution for many space critical applications.
- Fully regulated output voltage
- Small footprint
- High efficiency up to 85%
- Models with 1500 and 3000VDC I/O isolation (functional insulation)
Applications
Power Management, Industrial, Sensing & Instrumentation
Product details
| Output Power Max | 3W |
| Input Voltage DC Min | 9V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | -12V |
| Output Current - Output 2 | 125mA |
| Depth | 21.8mm |
| Width | 9.2mm |
| Product Range | TMR 3 Series |
| DC / DC Converter Type | SIP |
| Approvals & Standards | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 3 | - |
| No. of Outputs | 2 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 18V |
| Output Current - Output 1 | 125mA |
| Height | 11.1mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TMR 3-1222 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
| Application Note EN | |

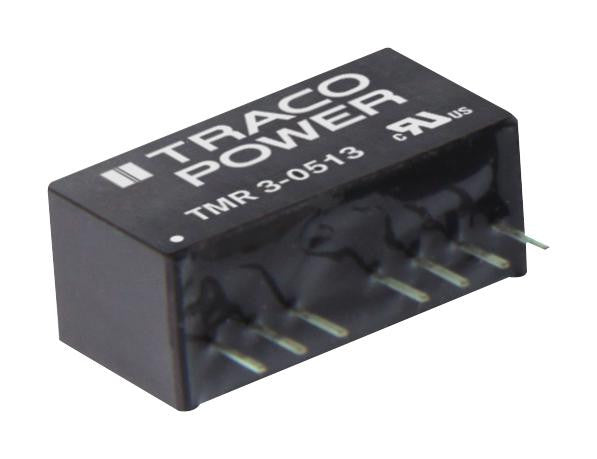

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
