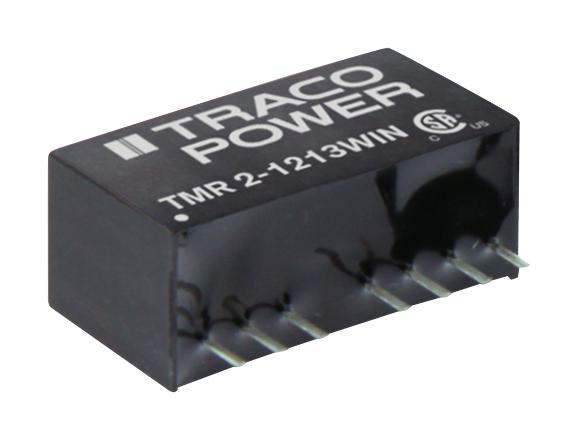

The TMR-2WIN series from Tracopower are isolated 2W DC to DC converter modules with accurately regulated output voltages. The product comes in a compact SIP-8 pin package featuring ultra-wide 4:1 input voltage range. Typical applications are distributed power architectures in communication, instrumentation and industrial electronics where space on the PCB is critical.
- Nominal input voltage : 12VDC/24VDC/48VDC
- Output voltage : 3.3/5/12/15/±5/±12/±15VDC
- Maximum output current : 500/400/167/134/±200/±83/±67mA
- Efficiency up to 82%, PFM switching frequency is 300KHz
- I/O isolation voltage (60sec) is 1500VDC
- Maximum I/O isolation capacitance is 500pF
- I/O isolation resistance is >1000Mohm at 500VDC
- Ripple and noise (20MHz bandwidth) is 100mVp-p maximum
- Remote on/off control, continuous short-circuit and overload protection
- Operating temperature range from -40°C to 90°C (natural convection 20 LFM), 3-year product warranty
Product details
| No. of Outputs |
1 Output |
| Output Power Max |
2W |
| Output Voltage - Output 1 |
15V |
| Output Current - Output 1 |
134mA |
| Output Voltage - Output 2 |
- |
| Output Current - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Current - Output 3 |
- |
| Product Range |
TMR 2WIN Series |
| Input Voltage DC Min |
9V |
| Input Voltage DC Max |
36V |
| DC / DC Converter Output Type |
Fixed |
| DC / DC Converter Type |
SIP |
| DC / DC Converter Mounting |
Through Hole |
| Width |
9.3mm |
| Height |
11.2mm |
| Depth |
21.8mm |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
TRACOPOWER |
| Part Number |
TMR 2-2413WIN |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
