Description
The TME 1212S is a 1-output 1W board-mount isolated DC to DC Converter that provide a cost effective solution to generate supplementary, isolated voltages. Full SMD-design and a 100% production test of parameters ensure a high reliability of this sub-miniature DC/DC converter.
- 1000VDC I/O Isolation
- High efficiency up to 80%
- Industry standard pinout
- 100% Burn-in (8h)
- -40 to +85°C Operating temperature range
Applications
Power Management
- :
- 1W
- :
- 10.8V
- :
- Through Hole
- :
- -
- :
- -
- :
- 11.5mm
- :
- 6.1mm
- :
- -
- :
- SIP
- :
- -
- :
- -
- :
- 12V
- :
- -
- :
- 1 Output
- :
- Fixed
- :
- 13.2V
- :
- 80mA
- :
- 10.2mm
Product details
| Output Power Max | 1W |
| Input Voltage DC Min | 10.8V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 11.5mm |
| Width | 6.1mm |
| Product Range | - |
| DC / DC Converter Type | SIP |
| Approvals & Standards | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 3 | - |
| No. of Outputs | 1 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 13.2V |
| Output Current - Output 1 | 80mA |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TME 1212S |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |

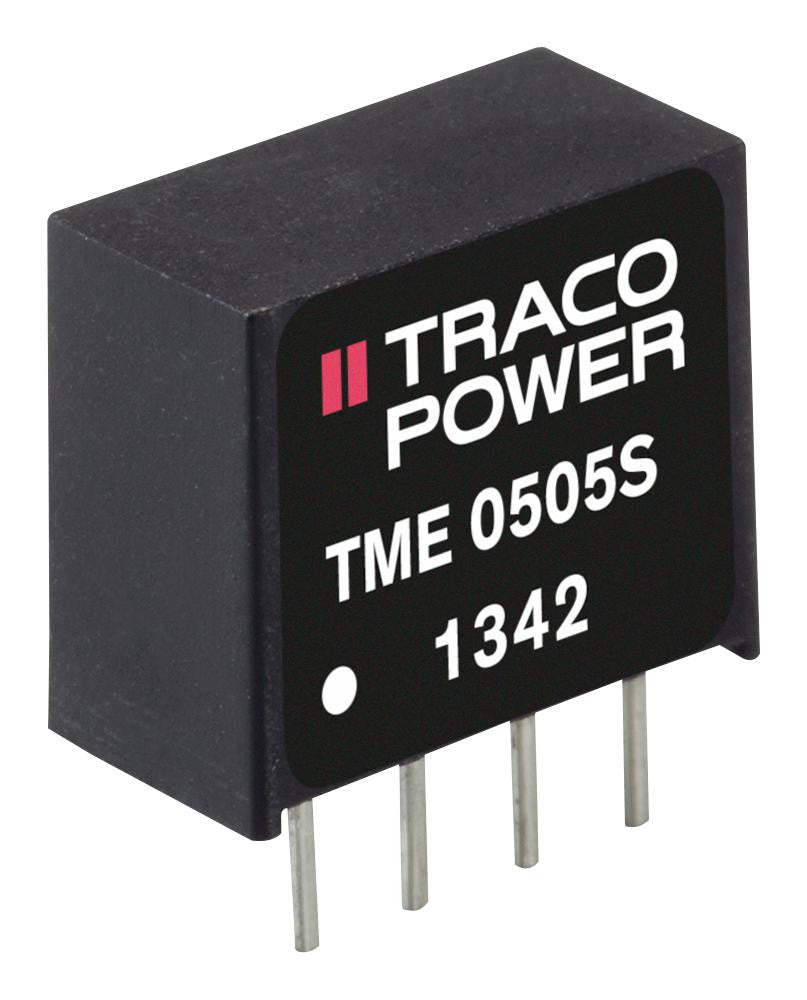

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
