| ₹ 828.79 includes GST and import duties. | |
| B2B customers can avail ₹ 126.39 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The TMA 0515D is a 2-output board-mount Isolated DC/DC Converter. A high efficiency allows a wide operating temperature range of -40 to +85°C. It requires only 1.2cm² board space and is an ideal solution in many space critical applications for board level power distribution. The use of SMD technology makes it possible to offer a high performance converter.
- 79% Efficiency
- 1000VDC I/O isolation
- ±0.02%/K Temperature coefficient
- 100µF Maximum capacitive load
- 100kHz Switching frequency
- 100% Burn-in (8 hour)
Applications
Industrial
- :
- 1W
- :
- 4.5V
- :
- Through Hole
- :
- -15V
- :
- 35mA
- :
- 19.5mm
- :
- 6.1mm
- :
- TMA Series
- :
- SIP
- :
- -
- :
- -
- :
- 15V
- :
- -
- :
- 2 Output
- :
- Fixed
- :
- 5.5V
- :
- 35mA
- :
- 10.2mm
Product details
| Output Power Max | 1W |
| Input Voltage DC Min | 4.5V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | -15V |
| Output Current - Output 2 | 35mA |
| Depth | 19.5mm |
| Width | 6.1mm |
| Product Range | TMA Series |
| DC / DC Converter Type | SIP |
| Approvals & Standards | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 15V |
| Output Current - Output 3 | - |
| No. of Outputs | 2 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 5.5V |
| Output Current - Output 1 | 35mA |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TMA 0515D |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |

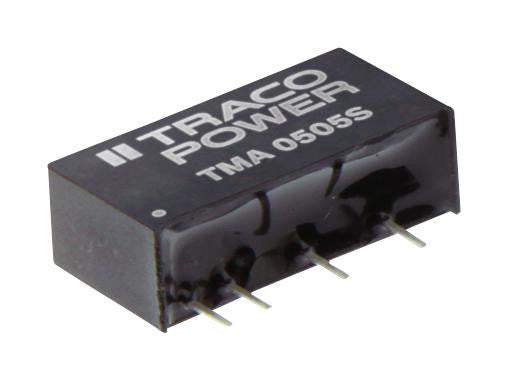

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 812.21 |
| 3-5 | ₹ 803.93 |
| 5-10 | ₹ 787.35 |
| 10+ | ₹ 770.77 |
Bulk discount will be automatically applied during checkout based on quantity.
