Description

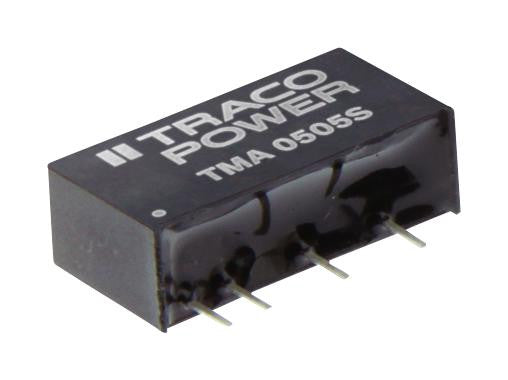

The TMA 0505S from Tracopower is a single output, miniature, isolated, 1W DC to DC converter in SIP package. It requires only 1.2cm² board space and ideal solution in many space critical applications for board level power distribution. The use of SMD technology makes it possible to offer a product with high performance at low cost.
- Input voltage is 5VDC
- Output voltage is 5VDC
- Output current is 200mA
- Typical efficiency is 71%
- I/O isolation is 1KVDC
- Operating temperature range from -40°C to 85°C
- Industry standard pin-out configuration
- Dimension is 19.5mm x 10.2mm x 6.1mm (D x H x W)
Applications
Industrial, Power Management
- :
- 1W
- :
- 4.5V
- :
- Through Hole
- :
- -
- :
- -
- :
- 19.5mm
- :
- 6.1mm
- :
- TMA Series
- :
- SIP
- :
- -
- :
- -
- :
- 5V
- :
- -
- :
- 1 Output
- :
- Fixed
- :
- 5.5V
- :
- 200mA
- :
- 10.2mm
Product details
| Output Power Max | 1W |
| Input Voltage DC Min | 4.5V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 19.5mm |
| Width | 6.1mm |
| Product Range | TMA Series |
| DC / DC Converter Type | SIP |
| Approvals & Standards | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 3 | - |
| No. of Outputs | 1 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 5.5V |
| Output Current - Output 1 | 200mA |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TMA 0505S |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
