Description

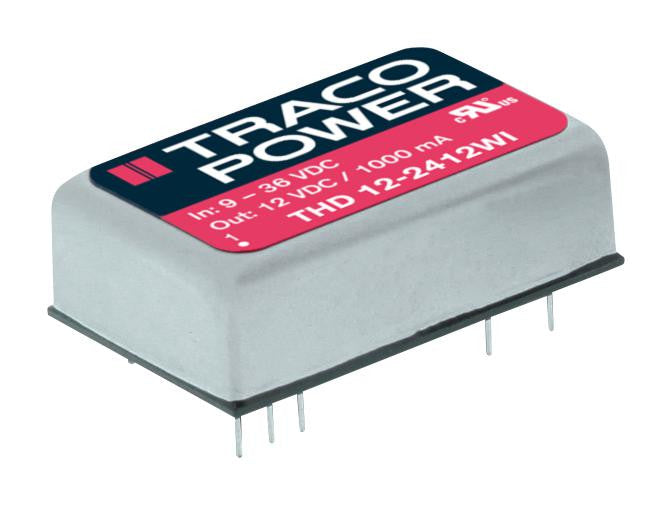

The THD 12-2412WI is a 1-output board-mount isolated DC to DC Converter with wide 4:1 input voltage range. The THD-12WI series 12W isolated high performance DC/DC converter features industry-standard footprint, overload and overvoltage protection as well as remote on/off. Built-in filters for both input and output minimize the need of external filtering. Full SMD-design with exclusive use of ceramic capacitors guarantees a high reliability and long product lifetime. This converter is ideal for applications which require isolated, tightly regulated voltages and space on the PCB is critical.
- Highest power density
- Very high efficiency up to 85%
- 1500V I/O isolation
- Input filter meets EN 55022A without external components
- Under-voltage lockout circuit
- Shielded metal case with insulated baseplate
- Continuous short-circuit protection
- -40 to +85�C Operating temperature range
Applications
Power Management, Communications & Networking, Industrial
Product details
| Output Power Max | 12W |
| Input Voltage DC Min | 9V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 31.8mm |
| Width | 20.3mm |
| Product Range | THD12WI Series |
| DC / DC Converter Type | DIP |
| Approvals & Standards | IEC, UL |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 3 | - |
| No. of Outputs | 1 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 36V |
| Output Current - Output 1 | 1A |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | THD 12-2412WI |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
| Application Note EN | |
