Description
The THD 12-2411WI is a 1-output board-mount Isolated DC/DC Converter. A high efficiency allows a wide operating temperature range of -40 to +85�C. Built-in filters for both input and output minimizes the need of external filtering. Full SMD-design with exclusive use of ceramic capacitors guarantees a high reliability and long product lifetime. It provides over voltage protection and short-circuit protection.
- Ultra-wide 4:1 input range
- 85% Efficiency
- 1500VDC I/O isolation
- �0.02%/K Temperature coefficient
- 2000�F Maximum capacitive load
- 400kHz Switching frequency
- Input filter meets EN 55022A without external components
- Remote ON/OFF
- Under-voltage lock-out circuit
- Shielded metal case with insulated baseplate
Applications
Power Management, Sensing & Instrumentation, Communications & Networking
Product details
| Output Power Max | 12W |
| Input Voltage DC Min | 9V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 32mm |
| Width | 20.3mm |
| Product Range | THD 12WI Series |
| DC / DC Converter Type | DIP |
| Approvals & Standards | IEC, UL |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5.1V |
| Output Current - Output 3 | - |
| No. of Outputs | 1 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 36V |
| Output Current - Output 1 | 2.4A |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | THD 12-2411WI |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
| Application Note EN | |

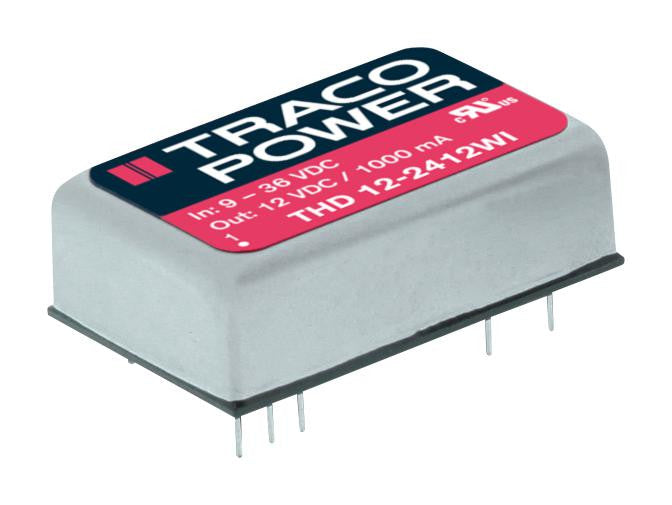

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
