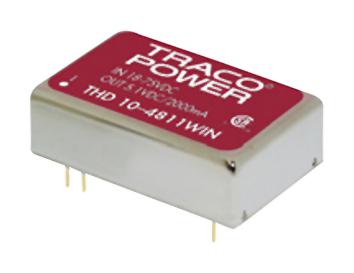

The THD 10-2415WIN from Tracopower is a THD 10WIN series 10W DC to DC converter in 24 pin DIP package. The THD 10WIN series is designed for an optimized cost/performance ratio of DC to DC converters with output power of 10W. They come with an internal EMI-filter to meet EN55022, class A without external components. General features like no minimum load requirement, overload protection and high efficiency make these converters easy to design in. With the popular DIP-24 standard package they are also a drop in replacement for many cost critical applications.
- Input voltage range from 9VDC to 36VDC (24VDC nominal)
- Output voltage is 24VDC
- Maximum output current is 416mA
- Typical efficiency is 87%
- I/O isolation voltage is 1500VDC, typical I/O isolation capacitance is 1000pF
- I/O isolation resistance is >1000Mohm at (500VDC)
- Input current at no load is 30mA typical
- Switching frequency is 330KHz, ultra-wide 4:1 input voltage range
- Operating temperature range from -40°C to +85°C
- UL/cUL 60950-1, IEC/EN 60950-1 safety standards
Applications
Industrial
Product details
| Power Supply Applications |
ITE |
| No. of Outputs |
1 Output |
| Output Power Max |
10W |
| Output Voltage - Output 1 |
24V |
| Output Current - Output 1 |
416mA |
| Output Voltage - Output 2 |
- |
| Output Current - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Current - Output 3 |
- |
| Product Range |
THD 10WIN Series |
| Input Voltage DC Min |
9V |
| Input Voltage DC Max |
36V |
| DC / DC Converter Output Type |
Fixed |
| DC / DC Converter Type |
DIP |
| DC / DC Converter Mounting |
Through Hole |
| Width |
20.3mm |
| Height |
10.2mm |
| Depth |
31.8mm |
Other details
| Brand |
TRACOPOWER |
| Part Number |
THD 10-2415WIN |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| CAD Multiple Formats EN |
|
