Description

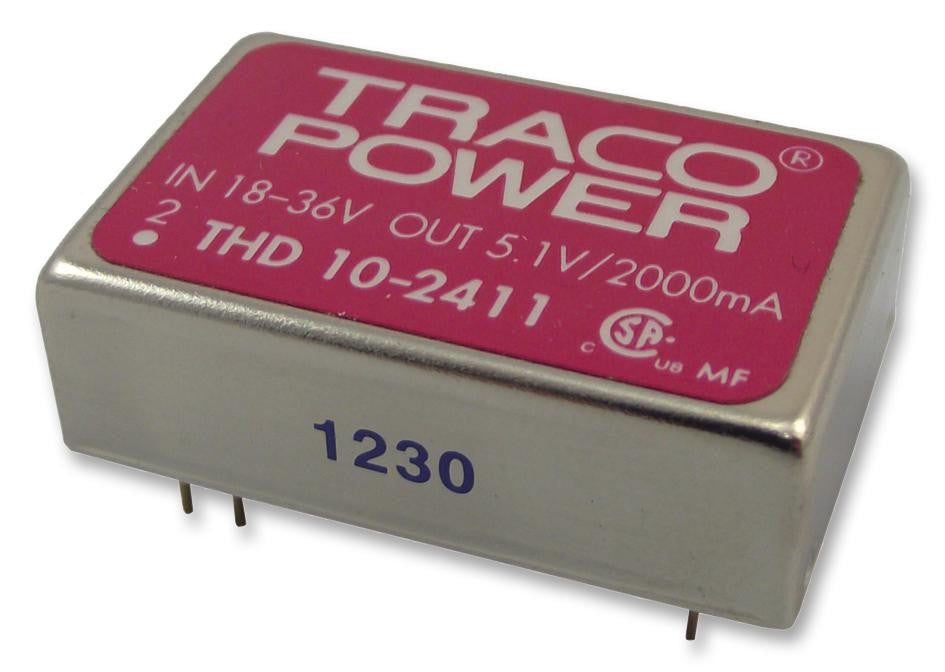

The THD 10-2411 is a 1-output board-mount isolated DC to DC Converter with wide 2:1 input voltage range. The THD-10 series 10W isolated high performance low profile DC/DC converter features built-in overvoltage protection and internal EMI-filter to meet EN 55022, class A. Full SMD-design with exclusive use of ceramic capacitors guarantees a high reliability and long product lifetime. This converter is ideal for applications which require isolated, tightly regulated voltages and space on the PCB is critical.
- Very high power density
- Very high efficiency up to 87%
- 1500V I/O isolation
- Low ripple and noise
- Continuous short-circuit protection
- -40 to +71°C Operating temperature range
Applications
Power Management, Communications & Networking, Industrial
- :
- 10W
- :
- 18V
- :
- Through Hole
- :
- -
- :
- -
- :
- 31.8mm
- :
- 20.3mm
- :
- -
- :
- DIP
- :
- CSA, IEC, UL
- :
- -
- :
- 5.1V
- :
- -
- :
- 1 Output
- :
- Fixed
- :
- 36V
- :
- 2A
- :
- 10.2mm
Product details
| Output Power Max | 10W |
| Input Voltage DC Min | 18V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 31.8mm |
| Width | 20.3mm |
| Product Range | - |
| DC / DC Converter Type | DIP |
| Approvals & Standards | CSA, IEC, UL |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5.1V |
| Output Current - Output 3 | - |
| No. of Outputs | 1 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 36V |
| Output Current - Output 1 | 2A |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | THD 10-2411 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
