Description

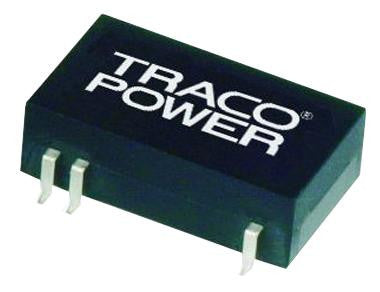

The TES 2N-2411 is a 1-output board-mount isolated DC to DC Converter with tightly regulated output voltage and wide 2:1 input voltage range. The TES-2N series 2W DC/DC converter has high efficiency and requires just 3cm² space on the PCB. A built-in EMI input filter complies with EN 55022, class A. This converter is ideal for applications which require isolated, tightly regulated voltages.
- Low profile
- 1500VDC I/O Isolation
- Input filter meets EN55022, class A
- Short-circuit protection
- Qualified for lead-free reflow solder process according IPC J-STD-020D.1
- Bears washing process
- -40 to +85°C Operating temperature range
Applications
Power Management, Communications & Networking, Industrial
- :
- 2W
- :
- 18V
- :
- Surface Mount Device
- :
- -
- :
- -
- :
- 24mm
- :
- 13.7mm
- :
- TES 2N Series
- :
- Surface Mount DIP
- :
- CSA, IEC, UL
- :
- -
- :
- 5V
- :
- -
- :
- 1 Output
- :
- Fixed
- :
- 36V
- :
- 400mA
- :
- 8mm
Product details
| Output Power Max | 2W |
| Input Voltage DC Min | 18V |
| DC / DC Converter Mounting | Surface Mount Device |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 24mm |
| Width | 13.7mm |
| Product Range | TES 2N Series |
| DC / DC Converter Type | Surface Mount DIP |
| Approvals & Standards | CSA, IEC, UL |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 3 | - |
| No. of Outputs | 1 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 36V |
| Output Current - Output 1 | 400mA |
| Height | 8mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TES 2N-2411 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
| Application Note EN | |
