Description

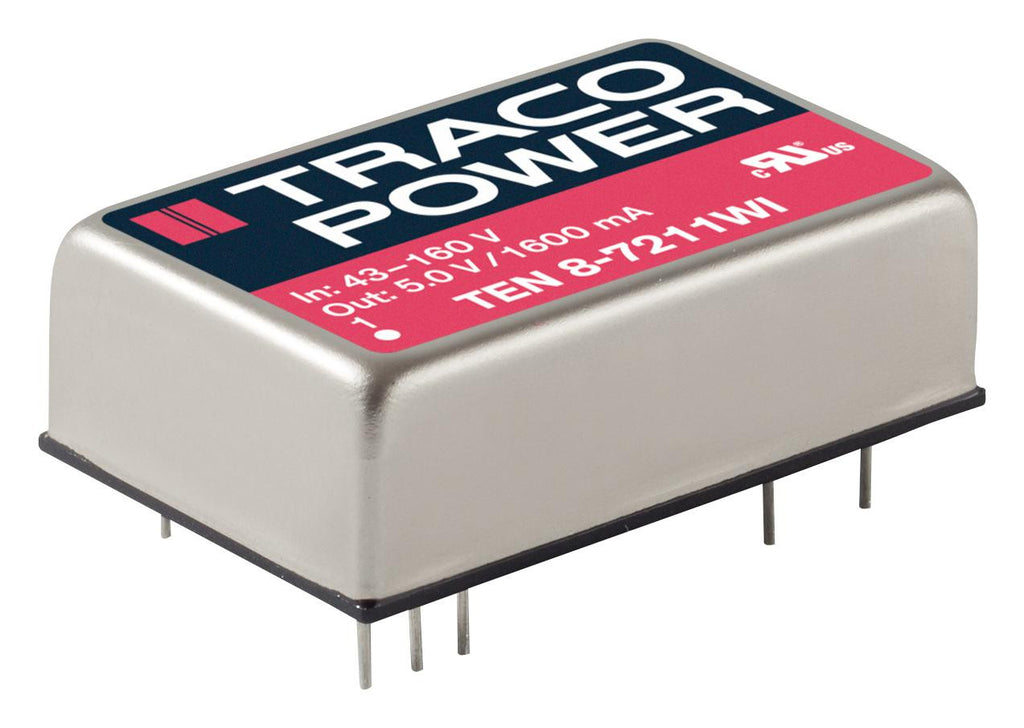

The TEN 8WI series high performance 8W DC/DC Converter Module features ultra wide 4:1 input voltage ranges with industry-standard footprint. Input voltages up to 160VDC, excellent EMC characteristics and EN 50155 approval make this device the best choice for many demanding applications in railroad and transportation systems. Further standard features include remote ON/OFF, over voltage protection, under voltage lockout and short circuit protection.
- No minimum load required
- Shielded metal case with insulated base plate
- Lead free design, RoHS compliant
- Up to 88% high efficiency
Applications
Signal Processing, Communications & Networking, Wireless, Test & Measurement, Industrial
Product details
| Output Power Max | 8W |
| Input Voltage DC Min | 18V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | -12V |
| Output Current - Output 2 | 333mA |
| Depth | 32mm |
| Width | 20.8mm |
| Product Range | TEN 8WI Series |
| DC / DC Converter Type | DIP |
| Approvals & Standards | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 3 | - |
| No. of Outputs | 2 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 75V |
| Output Current - Output 1 | 333mA |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TEN 8-4822WI |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
| Application Note EN | |
