Description

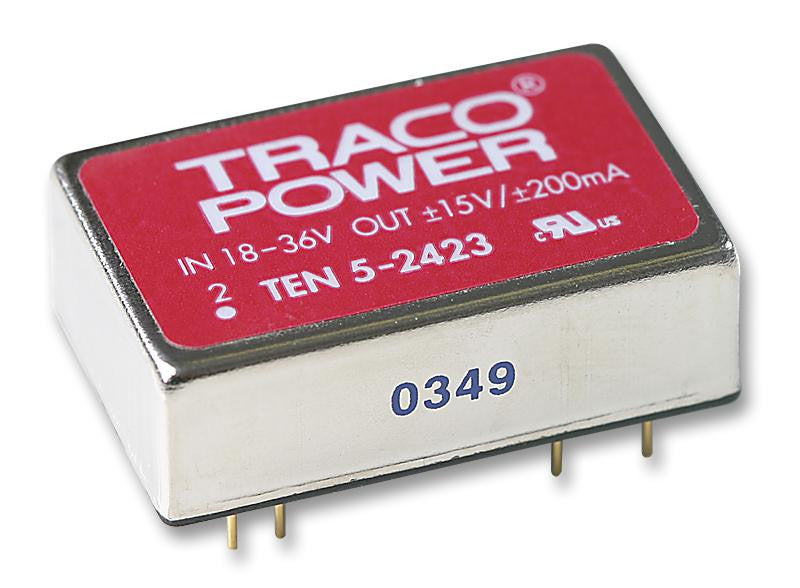

The TEN 5-2423 is a 2-output board-mount Isolated DC/DC Converter. It features ultra wide input voltage ranges of 18 to 36VDC. A high efficiency allows a wide operating temperature range of -40 to +85�C. State of the art SMD-technology guarantees very high reliability and good performance ratio.
- Wide 2:1 input range
- 86% Efficiency
- 1500VDC I/O isolation
- �0.02%/K Temperature coefficient
- 6800�F Maximum capacitive load
- 300kHz Switching frequency
- Full SMD design
- Input filter to meet EN 55022, class A and FCC, level A
- Shielded metal case with insulated baseplate
- 24 pin DIP with industry standard pinout
Applications
Power Management, Industrial, Communications & Networking
Product details
| Output Power Max | 6W |
| Input Voltage DC Min | 18V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | -15V |
| Output Current - Output 2 | 200mA |
| Depth | 32mm |
| Width | 20mm |
| Product Range | TEN 5 Series |
| DC / DC Converter Type | DIP |
| Approvals & Standards | IEC, UL |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 15V |
| Output Current - Output 3 | - |
| No. of Outputs | 2 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 36V |
| Output Current - Output 1 | 200mA |
| Height | 10mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TEN 5-2423 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
