Description
The TEN 5-2412WI is a 1-output board-mount Isolated DC/DC Converter Module features ultra wide input voltage ranges of 9 to 36VDC. It comes with industry-standard footprint. A high efficiency allows -40 to +70°C operation ambient temperatures at full load. It provides over voltage protection and short-circuit protection.
- Ultra-wide 4:1 input range
- 83% Efficiency
- 1500VDC I/O isolation
- ±0.02%/K Temperature coefficient
- 100µF Maximum capacitive load
- 450kHz Switching frequency
- Built-in filter
- Full SMD design
- Excellent load and line regulation
Applications
Power Management, Sensing & Instrumentation, Communications & Networking, Industrial
- :
- 5W
- :
- 9V
- :
- Through Hole
- :
- -
- :
- -
- :
- 31.8mm
- :
- 20.3mm
- :
- -
- :
- DIP
- :
- IEC, UL
- :
- -
- :
- 12V
- :
- -
- :
- 1 Output
- :
- Fixed
- :
- 36V
- :
- 500mA
- :
- 10.2mm
Product details
| Output Power Max | 5W |
| Input Voltage DC Min | 9V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 31.8mm |
| Width | 20.3mm |
| Product Range | - |
| DC / DC Converter Type | DIP |
| Approvals & Standards | IEC, UL |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 3 | - |
| No. of Outputs | 1 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 36V |
| Output Current - Output 1 | 500mA |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TEN 5-2412WI |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |

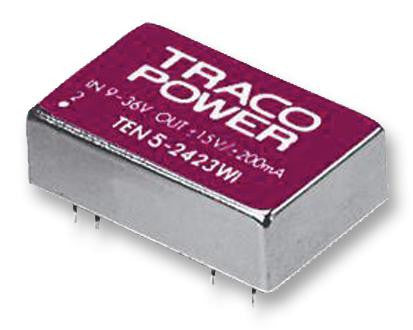

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3532.07 |
| 3-5 | ₹ 3496.03 |
| 5-10 | ₹ 3423.94 |
| 10+ | ₹ 3351.86 |
Bulk discount will be automatically applied during checkout based on quantity.
