Description

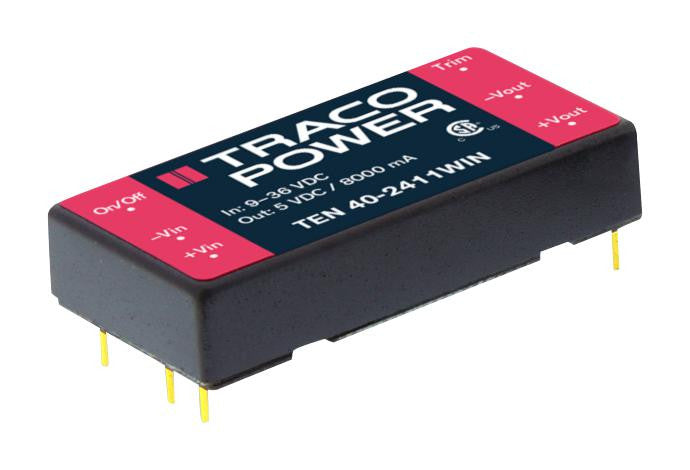

This is a Isolated Board Mount DC/DC Converter, Fixed, Adjustable, 1 Output, 18 V, 36 V, 40 W, 5 V product from TRACOPOWER with the model number TEN 40-2411N
Product details
| Output Power Max | 40W |
| Input Voltage DC Min | 18V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 50.8mm |
| Width | 25.4mm |
| Product Range | TEN 40N Series |
| DC / DC Converter Type | DIP |
| Approvals & Standards | CSA, IEC, UL |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 3 | - |
| No. of Outputs | 1 Output |
| DC / DC Converter Output Type | Fixed, Adjustable |
| Input Voltage DC Max | 36V |
| Output Current - Output 1 | 8A |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TEN 40-2411N |
| Quantity | Each |
| Technical Data Sheet EN |  |
