| ₹ 10942.08 includes GST and import duties. | |
| B2B customers can avail ₹ 1668.67 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

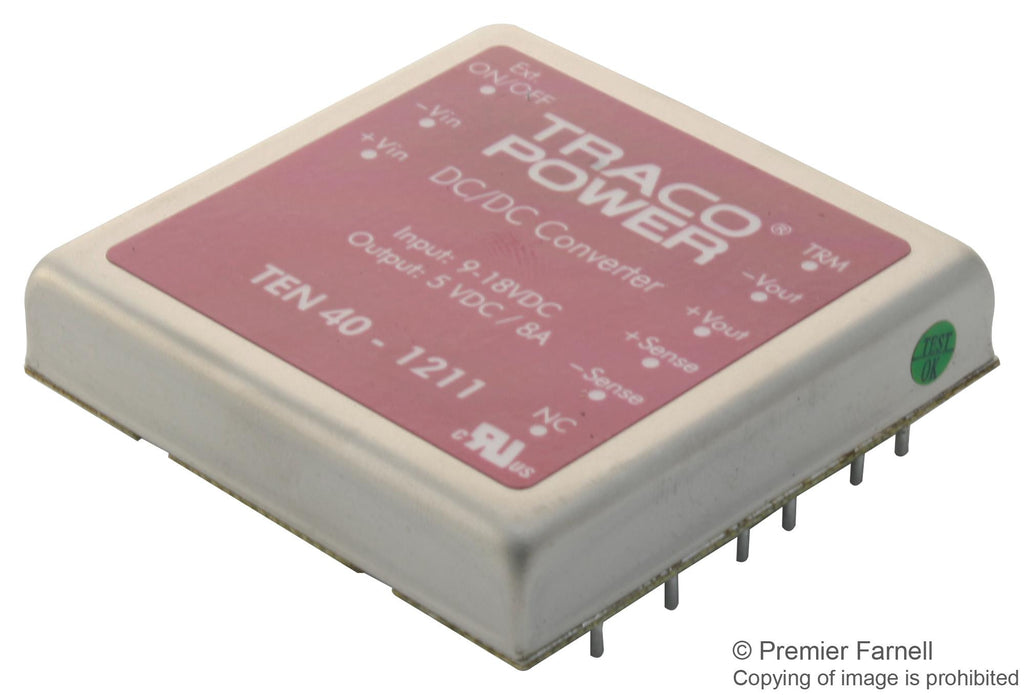

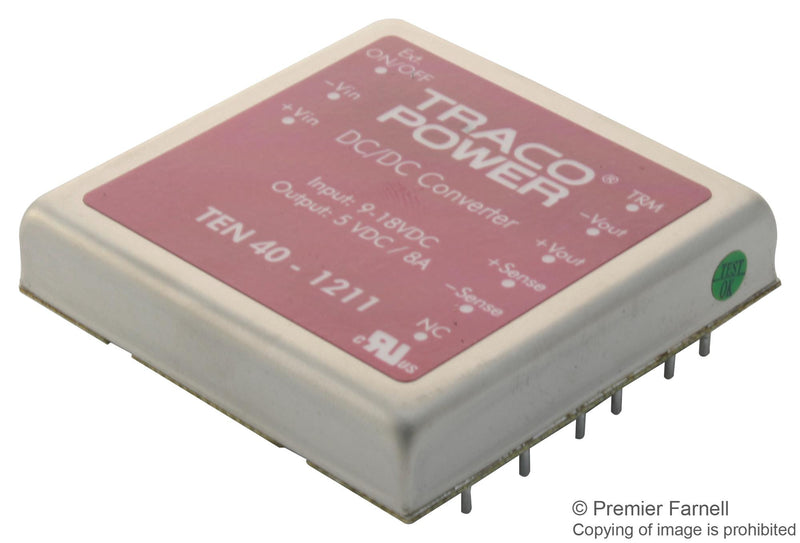

This is a Isolated Board Mount DC/DC Converter, Metal Case, 1 Output, 40 W, 5 V, 8 A product from TRACOPOWER with the model number TEN 40-1211
Product details
| Output Power Max | 40W |
| Input Voltage DC Min | 9V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 50.8mm |
| Width | 50.8mm |
| Product Range | TRACO TEN 40 Series |
| DC / DC Converter Type | DIP |
| Approvals & Standards | IEC, UL |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 3 | - |
| No. of Outputs | 1 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 18V |
| Output Current - Output 1 | 8A |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TEN 40-1211 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
| Application Note EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 10723.24 |
| 3-5 | ₹ 10613.82 |
| 5-10 | ₹ 10394.98 |
| 10+ | ₹ 10176.13 |
Bulk discount will be automatically applied during checkout based on quantity.
