Description

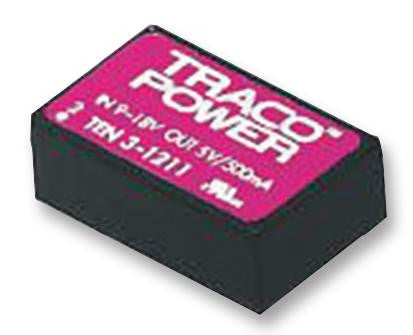

The TEN 3 series single/dual-output 3W isolated DC/DC Converter offers tight output regulation and very low output noise. Operating temperature range is -25 to 71�C. This device provides an effective solution for many applications.
- Very low output noise
- Short-circuit protection
- Internal filter
- Industry standard pin-out
- 1000VDC I/O isolation
Applications
Power Management, Industrial
Product details
| Output Power Max | 3W |
| Input Voltage DC Min | 18V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | -5V |
| Output Current - Output 2 | 250mA |
| Depth | 32mm |
| Width | 20.3mm |
| Product Range | TEN 3 Series |
| DC / DC Converter Type | DIP |
| Approvals & Standards | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 3 | - |
| No. of Outputs | 2 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 36V |
| Output Current - Output 1 | 250mA |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TEN 3-2421 |
| Quantity | Each |
| Technical Data Sheet EN |  |
