Description

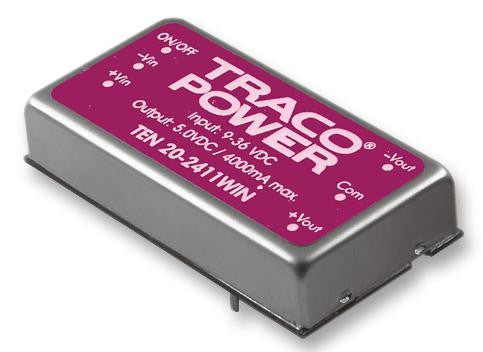

The TEN 20-2411WIN from Tracopower is a single output, 20W DC to DC converter. This module has an ultra wide 4:1 input voltage ranges in a ultra compact 2" x 1" low profile package. This module functions with remote On/Off, output voltage trimming, overvoltage protection and short-circuit protection. Typical applications for this converter are battery operated equipment, mobile instrumentation, distributed power architectures in communication and industrial electronics and everywhere where isolated, tightly regulated voltages are required.
- Input voltage range from 9VDC to 36VDC
- Output voltage is 5VDC
- Output current is 4A
- Typical efficiency is 88%
- I/O isolation is 1.5KVDC
- Operating temperature range from -40°C to 85°C
- No minimum load required
- Industry standard footprint
- Shielded metal case with insulated baseplate
- UL 60950-1, EN/IEC 60950-1 safety standards certified
Applications
Industrial, Power Management
Product details
| Output Power Max | 20W |
| Input Voltage DC Min | 9V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 50.8mm |
| Width | 25.4mm |
| Product Range | TEN 20WIN Series |
| DC / DC Converter Type | DIP |
| Approvals & Standards | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 3 | - |
| No. of Outputs | 1 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 36V |
| Output Current - Output 1 | 4A |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TEN 20-2411WIN |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
| Application Note EN | |
