| ₹ 6365.52 includes GST and import duties. | |
| B2B customers can avail ₹ 970.74 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The TEN 10-1211 is a 1-output board-mount isolated DC to DC Converter with tightly regulated output voltage and wide 2:1 input range. The TEN 10 series 10W converter offers high efficiency and over voltage protection. This converter is ideal for applications which require isolated and tightly regulated voltages.
- High reliability
- High power density
- Indefinite short-circuit protection
- 1500VDC I/O Isolation
- Input filter to meet EN 55022, class A and FCC, level A without external components
- Industry standard pinout
- Shielded metal case with insulated baseplate
- -40 to +85°C Operating temperature range
Applications
Power Management, Communications & Networking, Industrial
- :
- 10W
- :
- 9V
- :
- Through Hole
- :
- -
- :
- -
- :
- 50.8mm
- :
- 25.4mm
- :
- TEN 10 Series
- :
- DIP
- :
- -
- :
- -
- :
- 5V
- :
- -
- :
- 1 Output
- :
- Fixed
- :
- 18V
- :
- 2A
- :
- 10.2mm
Product details
| Output Power Max | 10W |
| Input Voltage DC Min | 9V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 50.8mm |
| Width | 25.4mm |
| Product Range | TEN 10 Series |
| DC / DC Converter Type | DIP |
| Approvals & Standards | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 3 | - |
| No. of Outputs | 1 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 18V |
| Output Current - Output 1 | 2A |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TEN 10-1211 |
| Quantity | Each |
| Technical Data Sheet EN |  |

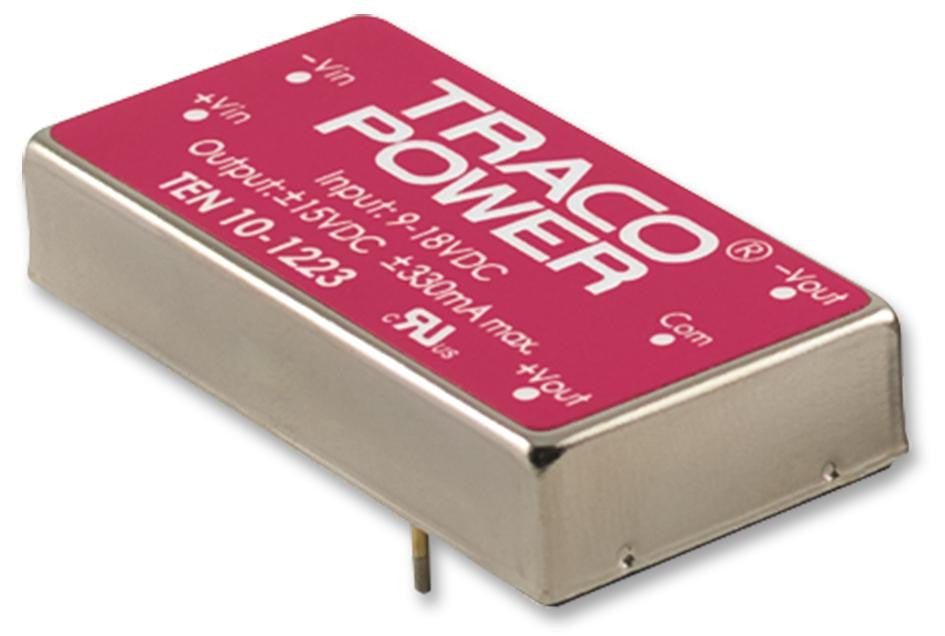

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 6238.21 |
| 3-5 | ₹ 6174.55 |
| 5-10 | ₹ 6047.24 |
| 10+ | ₹ 5919.93 |
Bulk discount will be automatically applied during checkout based on quantity.
