Description

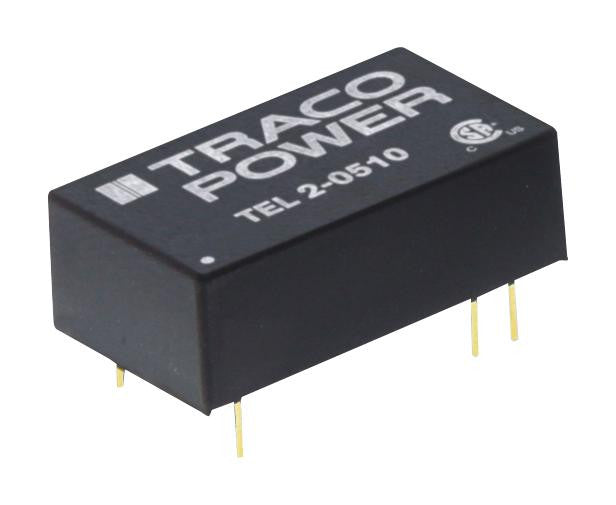

The TEL 2-2423 is a 2-output board-mount isolated DC to DC Converter with regulated output voltage and wide 2:1 input range. The TEL 2 series 2W converter requires only 3.25cm² of space on the PCB they provide a complete DC/DC converter without need of any external components. Wide input range and tightly regulated output voltage qualifies this converter for many cost critical applications.
- 1500V I/O isolation
- Input filter meets EN55022, class A without external components
- Low ripple and noise
- Indefinite short-circuit protection
- -40 to +75°C Operating temperature range
Applications
Industrial, Consumer Electronics
- :
- 2W
- :
- 18V
- :
- Through Hole
- :
- -15V
- :
- 65mA
- :
- 23.8mm
- :
- 13.7mm
- :
- TRACO TEL-2 Series
- :
- DIP
- :
- CSA, IEC, UL
- :
- -
- :
- 15V
- :
- -
- :
- 2 Output
- :
- Fixed
- :
- 36V
- :
- 65mA
- :
- 7.2mm
Product details
| Output Power Max | 2W |
| Input Voltage DC Min | 18V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | -15V |
| Output Current - Output 2 | 65mA |
| Depth | 23.8mm |
| Width | 13.7mm |
| Product Range | TRACO TEL-2 Series |
| DC / DC Converter Type | DIP |
| Approvals & Standards | CSA, IEC, UL |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 15V |
| Output Current - Output 3 | - |
| No. of Outputs | 2 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 36V |
| Output Current - Output 1 | 65mA |
| Height | 7.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TEL 2-2423 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
