Description

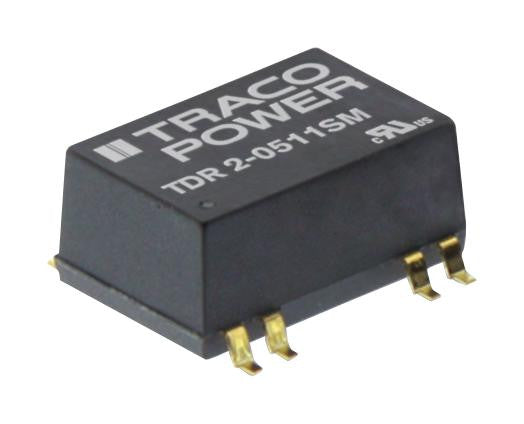

The TDR 2 series compact 2W DC/DC Converter with 2:1 input voltage ranges and tightly regulated output voltages even under no load conditions. It works with high efficiency over the full load range and come with a remote ON/OFF input. The usability in temperature ranges of up to 85�C without power derating, continuous short-circuit protection and excellent immunity against environmental influences make this converter very reliable. This converter is the ideal solution for space critical high end applications.
- Fully regulated outputs
- Low ripple and noise
- No minimum load required
- Fully RoHS compliant
- 1600VDC I/O isolation
Applications
Communications & Networking, Sensing & Instrumentation, Consumer Electronics, Industrial
Product details
| Output Power Max | 2W |
| Input Voltage DC Min | 18V |
| DC / DC Converter Mounting | Surface Mount Device |
| Output Voltage - Output 2 | -15V |
| Output Current - Output 2 | 67mA |
| Depth | 18.9mm |
| Width | 12.8mm |
| Product Range | TDR 2 Series |
| DC / DC Converter Type | Surface Mount DIP |
| Approvals & Standards | IEC, UL |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 15V |
| Output Current - Output 3 | - |
| No. of Outputs | 2 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 36V |
| Output Current - Output 1 | 67mA |
| Height | 8.7mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TDR 2-2423SM |
| Quantity | Each |
| Technical Data Sheet EN |  |
