Description

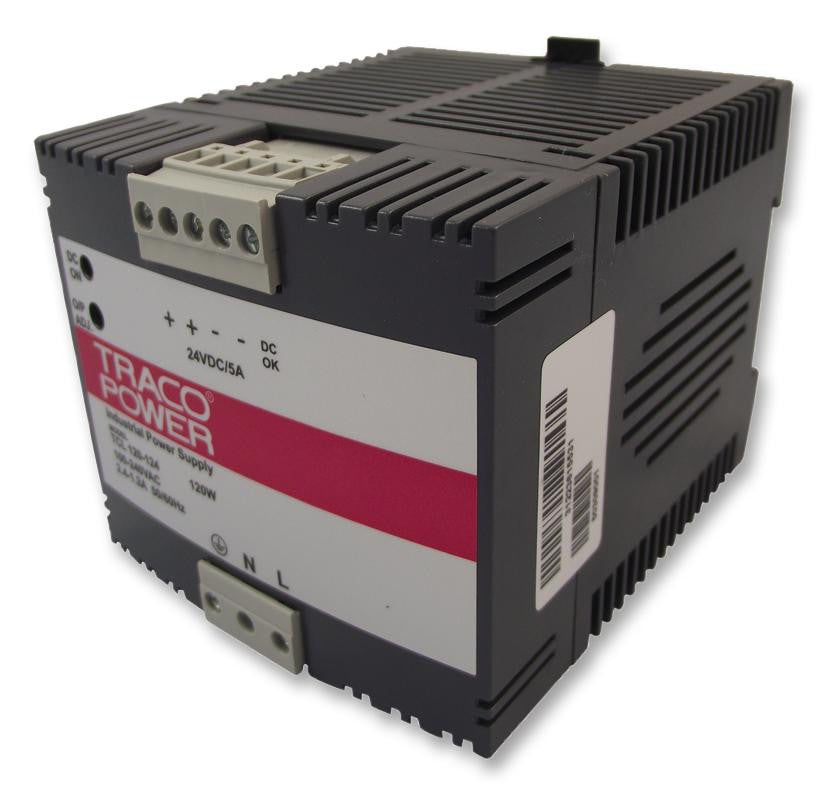

The TCL 120-124 is a TCL-series 120W 24VDC 5A industrial Power Supply with ultra compact plastic housing, connection by spring clamp terminals or detachable screw terminal block, reliable snap-on mounting on DIN-rails. Power supplies with an excellent price/performance ratio with tightly regulated output voltage and high immunity against electrical disturbances on the mains they provide a reliable power source for sensitive loads in industrial process controls, machine tools and other equipment exposed to a difficult industrial environment.
- Adaptor for wall mounting
- Universal input 85 to 264VAC
- Output voltage adjustable
- Power OK signal
- Low ripple and noise
- Overload and short-circuit protection
- Parallel operation possible
- Redundancy module
- Detachable screw terminal block connection
Applications
Power Management
Product details
| Power Supply Output Type | Adjustable, Fixed |
| Output Power Max | 120W |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Input Voltage AC Max | 264VAC |
| Input Voltage AC Min | 85VAC |
| Product Range | TCL Series |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 3 | - |
| Output Current - Output 4 | - |
| No. of Outputs | 1 Output |
| Output Voltage - Output 4 | - |
| Output Current - Output 1 | 5A |
Other details
| Brand | TRACOPOWER |
| Part Number | TCL 120-124 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Handling Instructions EN | |
