| ₹ 14951.77 includes GST and import duties. | |
| B2B customers can avail ₹ 2280.14 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

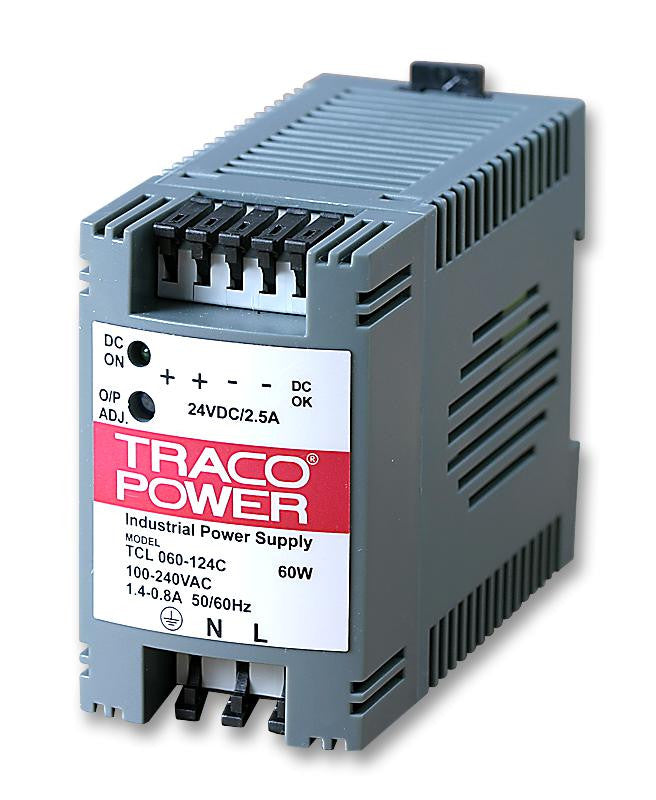

The TCL 060-124C is a 24V/60W Power Supply, TCL-series is a family of DIN-rail power supply with ultra compact plastic housing, tightly regulated output voltage and high immunity against electrical disturbances on the mains they provide a reliable power source for sensitive loads in industrial process controls, machine tools and other equipment exposed to a difficult industrial environment. Compact size, light weight, easy snap-on mounting on DIN-rails and the choice of two connection terminal versions are other features of these power supplies.
- Connection by detachable screw terminal block
- Reliable snap-on mounting on DIN-rails
- Universal input 85 to 264VAC, 50/60Hz
- Power OK signal
- Low ripple and noise
- Overload and short-circuit protection
- Parallel operation possible
- Redundancy module
- 88% Efficiency
- -10 to 70°C Maximum operating temperature range
Applications
Industrial, Consumer Electronics
Product details
| Power Supply Output Type | Adjustable, Fixed |
| Output Power Max | 60W |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Input Voltage AC Max | 264VAC |
| Input Voltage AC Min | 85VAC |
| Product Range | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 24VDC |
| Output Current - Output 3 | - |
| Output Current - Output 4 | - |
| No. of Outputs | 1 Output |
| Output Voltage - Output 4 | - |
| Output Current - Output 1 | 2.5A |
Other details
| Brand | TRACOPOWER |
| Part Number | TCL 060-124C |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Handling Instructions EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 14652.73 |
| 3-5 | ₹ 14503.22 |
| 5-10 | ₹ 14204.18 |
| 10+ | ₹ 13905.15 |
Bulk discount will be automatically applied during checkout based on quantity.
