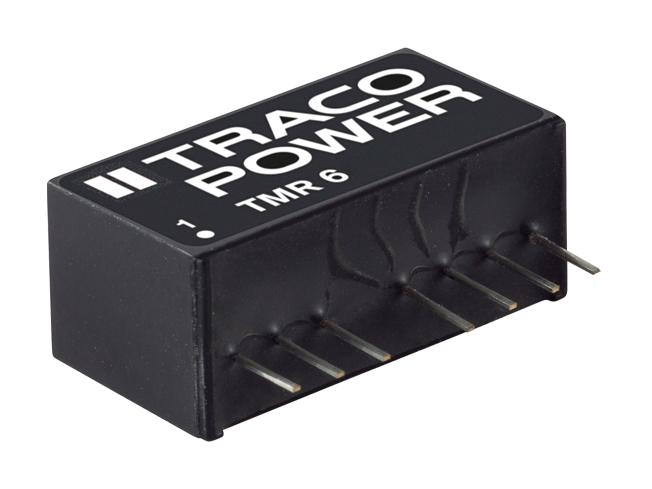

TMR-6 series is a new family of isolated 6W DC/DC converter modules with regulated output, featuring wide 2:1 input voltage ranges. The product comes in an ultra-compact SIP-8 plastic package with a small footprint occupying only 2.0cm² of board space. Further features include remote on/off control and continuous short circuit protection. The very compact dimensions of these converters make them an ideal solution for space critical applications.
- Temperature range from -40° to +78°C
- High efficiency
- I/O isolation of 1600VDC
- 3-year product warranty
- EN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, UL 60950-1, UL 62368-1 safety standards
- Pollution degree PD 2
- Natural convection (20 LFM) cooling
- Switching frequency of 100KHz minimum (RCC)
- Non-conductive plastic housing, silicone (UL 94 V-0 rated) potting
- THD (through-hole device) connection
Other details
| Brand |
TRACO POWER |
| Part Number |
TMR 6-2415 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
