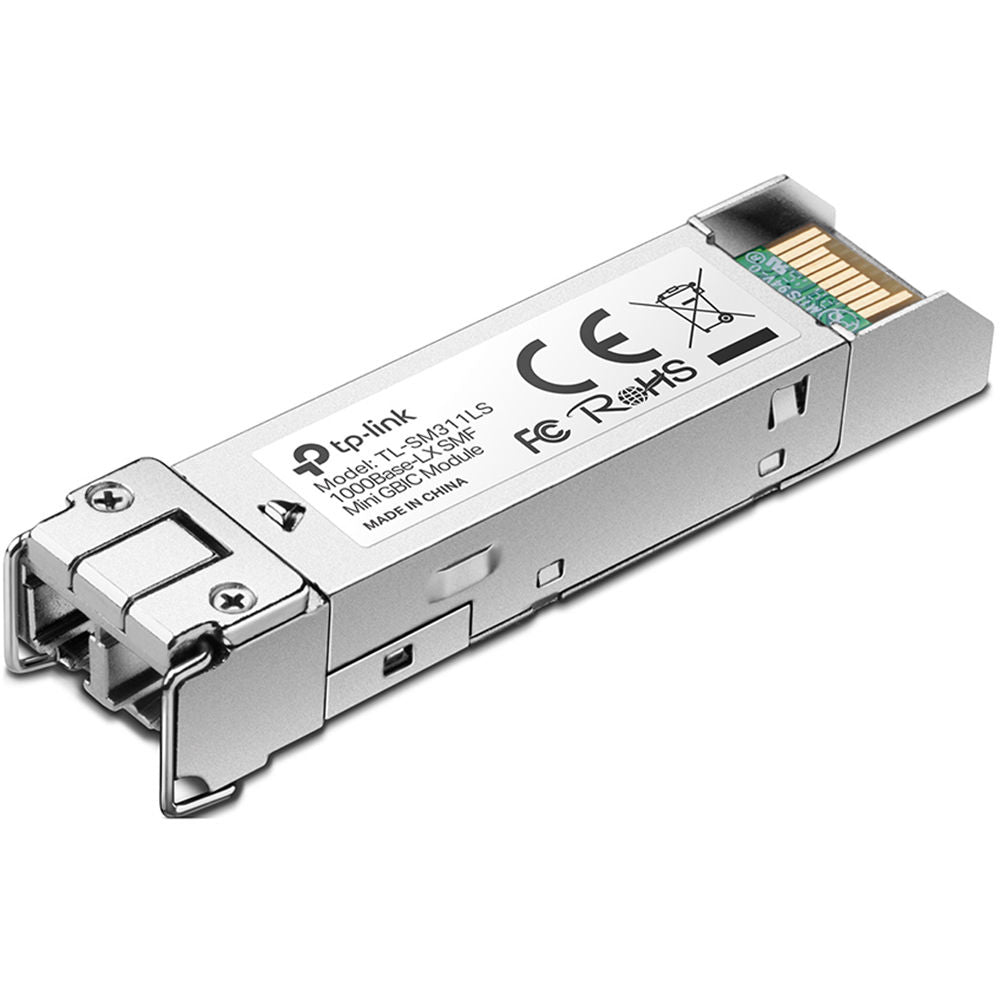

TP-Link TL-SM311LS Overview
Connect the TP-Link TL-SM311LS Mini-GBIC Single-Mode Module to a compatible switch to extend data transfer distances. This module is compatible with all SFP ports and works with a single-mode fiber connection using the IEEE 802.3z protocol to transfer data at up to 1.25 Gb/s. Featuring a 1310nm wave length, the TL-SM311LS has a transmission range of up to 12.43 miles over a 9/125 µm single-mode fiber cable.
UPC: 845973030216
In the Box
- TP-Link TL-SM311LS Mini-GBIC Single-Mode Module
- Limited Lifetime Warranty
TP-Link TL-SM311LS Specs
Form Factor |
SFP |
Ethernet Standards |
IEEE 802.3z |
Ports |
1 x Duplex LC |
Wavelength |
1310 nm |
Protocol |
CSMA/CD |
Maximum Networking Distance |
12.4 Miles / 20 km |
Maximum Data Rate |
1.25 Gb/s |
Mode |
Single-Mode |
DC Input Power |
3.3 VDC |
Operating Temperature |
32 to 158°F / 0 to 70°C |
Operating Humidity |
10 to 90% |
Storage Temperature |
-40 to 176°F / -40 to 80°C |
Packaging Info
Package Weight |
0.235 lb |
Box Dimensions (LxWxH) |
8.2 x 5.9 x 1.5" |
