Description
TP-Link TL-SG3428XMP Overview
- 1Description
- 2Centralized Management
- 3Security Features
- 4L2+ and L3 Support
- 5Enterprise Level Features
- 6Static Routing
- 7Optimized Video & Voice Traffic
- 8ISP Features
- 9IPv6 Support
- 10Quiet Cooling

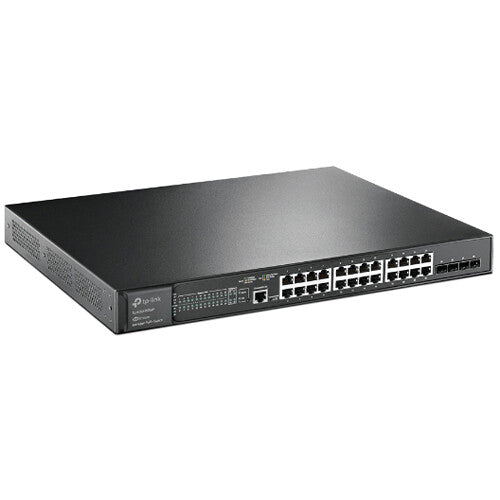

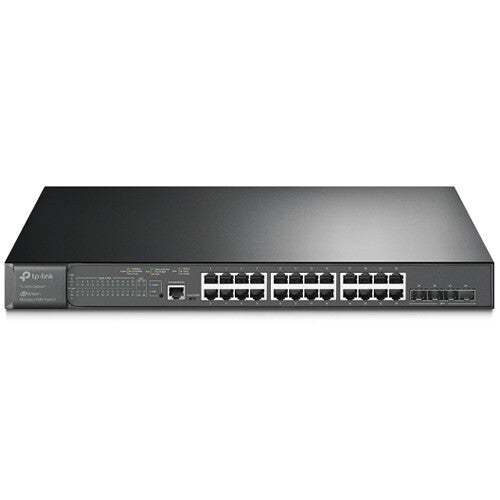

Expand your office or business network capacity to handle a multitude of high-bandwidth applications with the TL-SG3428XMP JetStream 24-Port PoE+ Compliant Gigabit Managed Switch from TP-Link. This managed rack-mountable switch features 24 PoE+ compliant Gigabit Ethernet ports with a power budget of 384W to operate compatible devices such as IP security cameras, VoIP phones, wireless access points, and more. There are also four 10 Gigabit SFP+ ports for high-speed fiber uplinks. With its 128 Gb/s switching capacity and 95.23 Mpps forwarding rate, the TL-SG3428XMP provides smooth data transfers. The broad range of L2+ and L3 features allows you to configure and manage your network to best suit your business's needs. A host of security features includes an Access Control List (ACL), Storm Control, and DHCP Snooping to help defend your network against threats. Use the Omada Software Defined Networking platform to manage your connected network devices remotely with the Omada app.
Centralized Management
The Omada Software Defined Networking (SDN) platform integrates access points, switches, gateways, and other network devices to provide high efficiency, security, and reliability. Configure, manage, and monitor your network using a single interface, from almost anywhere in the world, through the cloud portal interface and Omada smartphone and tablet app.
Security Features
Protect your network from attacks and intrusions with IP-MAC-Port Binding, Access Control List, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
L2+ and L3 Support
Extensive L2+ and L3 features help to build a highly scalable and robust network for businesses, campuses, and ISPs.
Note:
L3 features can only be configured in standalone mode.
Enterprise Level Features
The complete lineup of L2+ features include 802.1Q VLAN, Port Mirroring, Link Aggregation Control Protocol, and 802.3x Flow Control.
Static Routing
Static Routing segments the network and internally routes traffic through the switch for improved efficiency.
Optimized Video & Voice Traffic
Advanced IGMP Snooping cuts unnecessary traffic by intelligently forwarding multicast streams to the appropriate subscribers, while IGMP throttling and filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more to help ensure smooth broadcasts and clear calls, even when bandwidth is limited.
ISP Features
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are included with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
Note:
ISP features can only be configured in standalone mode.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover help to ensure that your network is ready for the Next Generation Network (NGN) without having to upgrade your hardware.
Quiet Cooling
Dual low-noise fans help to maintain optimal temperatures and efficient operation.
UPC: 845973088101
In the Box
- TP-Link TL-SG3428XMP JetStream 24-Port PoE+ Compliant Gigabit Managed Switch with SFP+
- Power Cable
- Rackmount Kit
- Rubber Feet
- Limited Lifetime Warranty
Table of Contents
- Description
- Centralized Management
- Security Features
- L2+ and L3 Support
- Enterprise Level Features
- Static Routing
- Optimized Video & Voice Traffic
- ISP Features
- IPv6 Support
- Quiet Cooling
TP-Link TL-SG3428XMP Specs
Interfaces
| Ports | 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ 4 x 10Gb SFP+ 1 x Ethernet (RJ45) (Console) 1 x Micro-USB (Console) |
Protocols
| Layer Services Supported | Layer 2 Support, Layer 3 Support, Layer 4 Support |
| Supported Protocols | Auto-MDIX/MDI IGMP Snooping IPv4 IPv6 Link Aggregation Port Mirroring SNMPv1 SNMPv2c SNMPv3 |
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 16K |
Security
| Security Features | DHCP Snooping DoS Attack Prevention RADIUS Authentication Storm Control |
| Static Routes | 48 |
| SNMP Support | 1, 2c, 3 |
Standards
| Supported IEEE Standards | 802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3ad, 802.3af, 802.3at, 802.3x |
Performance
| Forwarding Rate | 95.23 Mpps |
| Switching Bandwidth | 128 Gb/s |
| Priority Queues | 8 |
Electrical
| Power Draw | 34.4 W 465.8 W (Max) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| PoE Power Budget | 384 W |
| PoE per Port | 30 W |
| Power Supply Type | Internal |
Environmental
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 90% |
General
| Cooling System | Fan |
| Rack Form Factor | 1 RU |
| Dimensions | 17.3 x 13 x 1.7" / 440 x 330 x 44 mm |
Packaging Info
| Package Weight | 13.54 lb |
| Box Dimensions (LxWxH) | 20.9 x 17.6 x 4" |
