Description
TP-Link TL-SG116P Overview
- 1Description
- 2Intelligent Power Management
- 3Extend Mode
- 4Priority Mode
- 5Isolation Mode
- 6PoE Auto Recovery

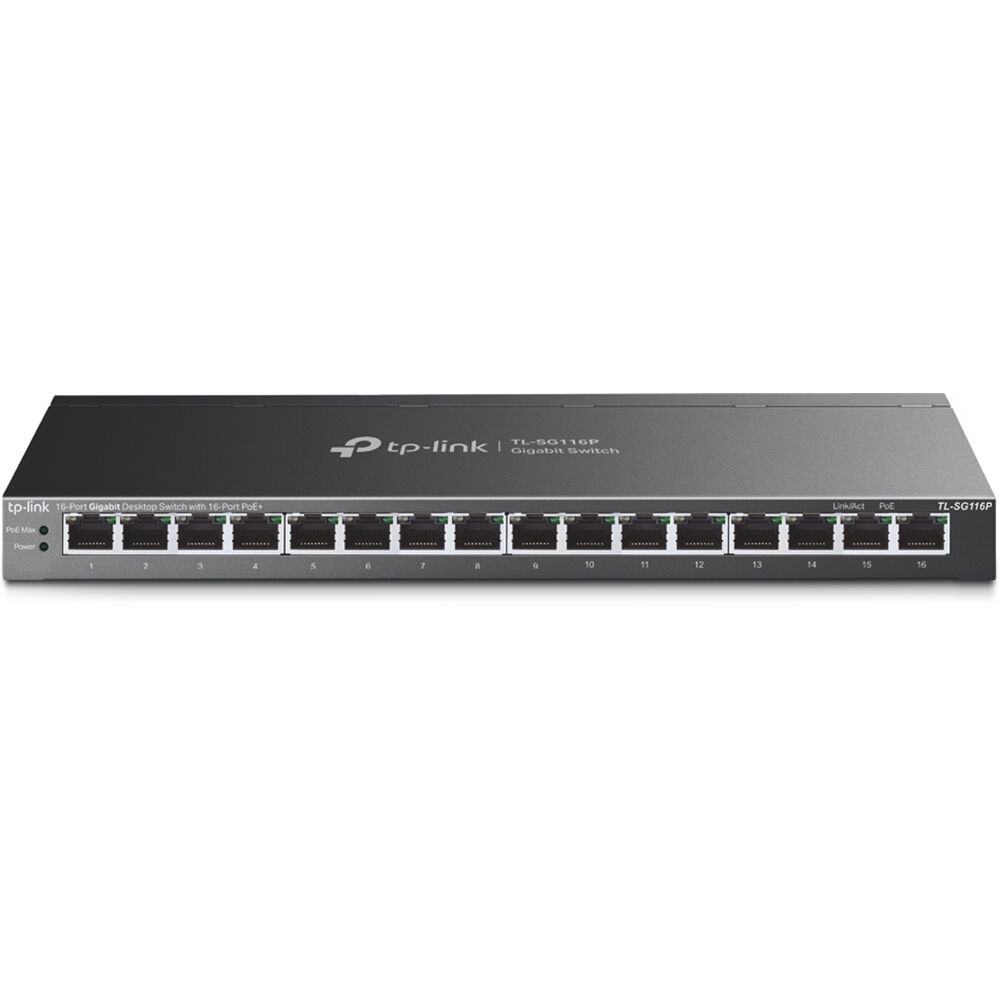

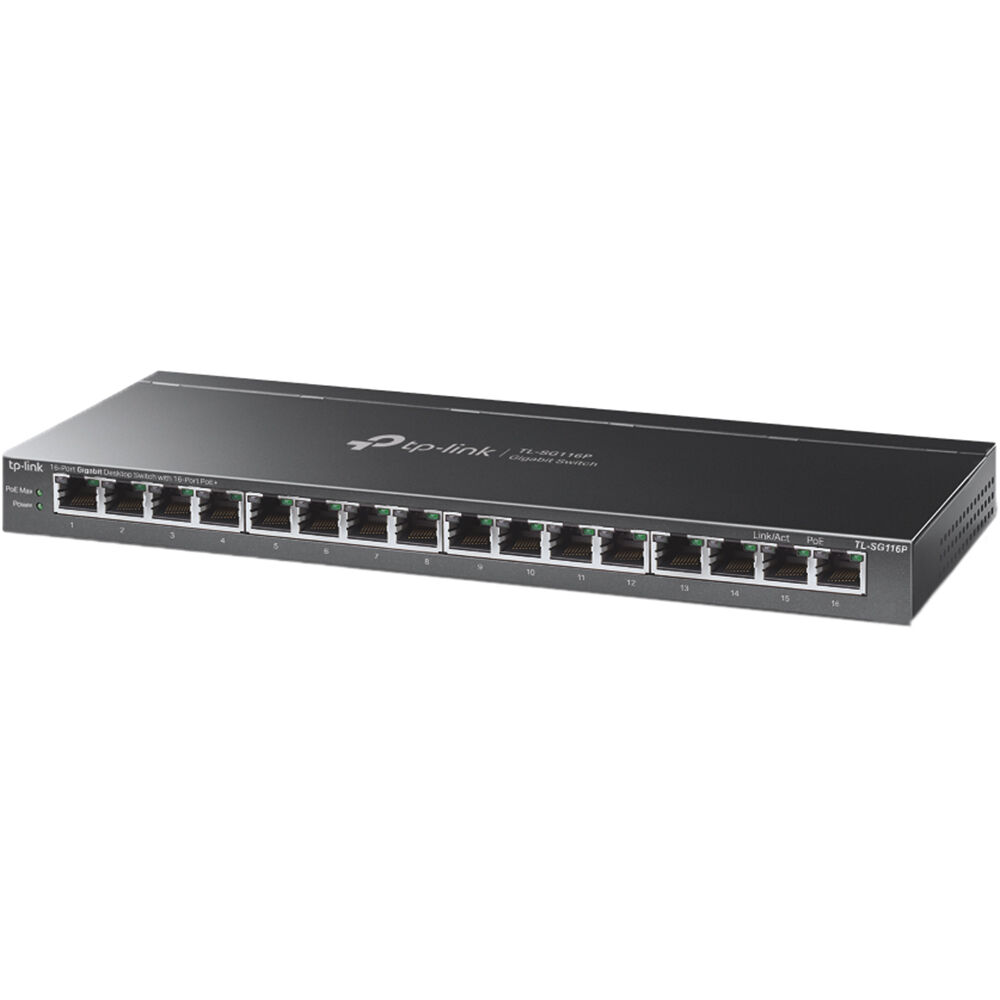

Quickly grow your business's network capacity to support IP security cameras, access points, VoIP phones, and other devices with the TL-SG116P 16-Port Gigabit PoE+ Compliant Unmanaged Network Switch from TP-Link. Each of the 16 Gigabit speed Ethernet ports support up to 30W of power with a total budget of 230W to operate PoE compatible devices. With its unmanaged design and automated features, you simply have to plug this switch in to get started.
Ports 1 to 4 may be configured for Extend Mode, which supports long-range camera installations up to an 820.21' range at 10 Mb/s data speeds. This switch delivers smooth data transfers with 32 Gb/s switching capacity and a 23.8 Mpps forwarding rate. Its durable metal enclosure and fanless design allows it to maintain optimal performance while working silently in the background.
In the Box
- TP-Link TL-SG116P 16-Port Gigabit PoE+ Compliant Unmanaged Network Switch
- Power Adapter
- Limited Lifetime Warranty
- Description
- Intelligent Power Management
- Extend Mode
- Priority Mode
- Isolation Mode
- PoE Auto Recovery
TP-Link TL-SG116P Specs
| Inputs/Outputs |
16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
|
| PoE Power Budget |
120 W
|
| Inputs/Outputs |
16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
|
| Supported Protocols |
Auto-MDIX/MDI
|
| Transmission Method |
Store-and-Forward
|
| MAC Address Table Size |
8K
|
| Supported IEEE Standards |
802.3af, 802.3at, 802.3i, 802.3u, 802.3x, 802.3z
|
| Forwarding Rate |
23.8 Mpps
|
| Switching Bandwidth |
32 Gb/s
|
| Power Draw |
144.28 W (Max)
|
| DC Input Power |
53.5 VDC at 2.43 A
|
| AC Input Power |
No
|
| PoE Power Budget |
120 W
|
| PoE per Port |
30 W
|
| Power Supply Type |
External
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
10 to 90%
|
| Storage Temperature |
-40 to 158°F / -40 to 70°C
|
| Storage Humidity |
5 to 90%
|
| Certifications |
FCC, CE, RoHS
|
| Cooling System |
Passive
|
| Material of Construction |
Metal
|
| Indicator Lights |
Link/Activity, PoE
|
| Dimensions |
11.3 x 4.4 x 1" / 286 x 111.7 x 25.4 mm
|
| Package Weight |
4.295 lb
|
| Box Dimensions (LxWxH) |
17.9 x 9.4 x 2.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 23098.6 |
| 3-5 | ₹ 22862.9 |
| 5-10 | ₹ 22391.5 |
| 10+ | ₹ 21920.1 |
Bulk discount will be automatically applied during checkout based on quantity.
