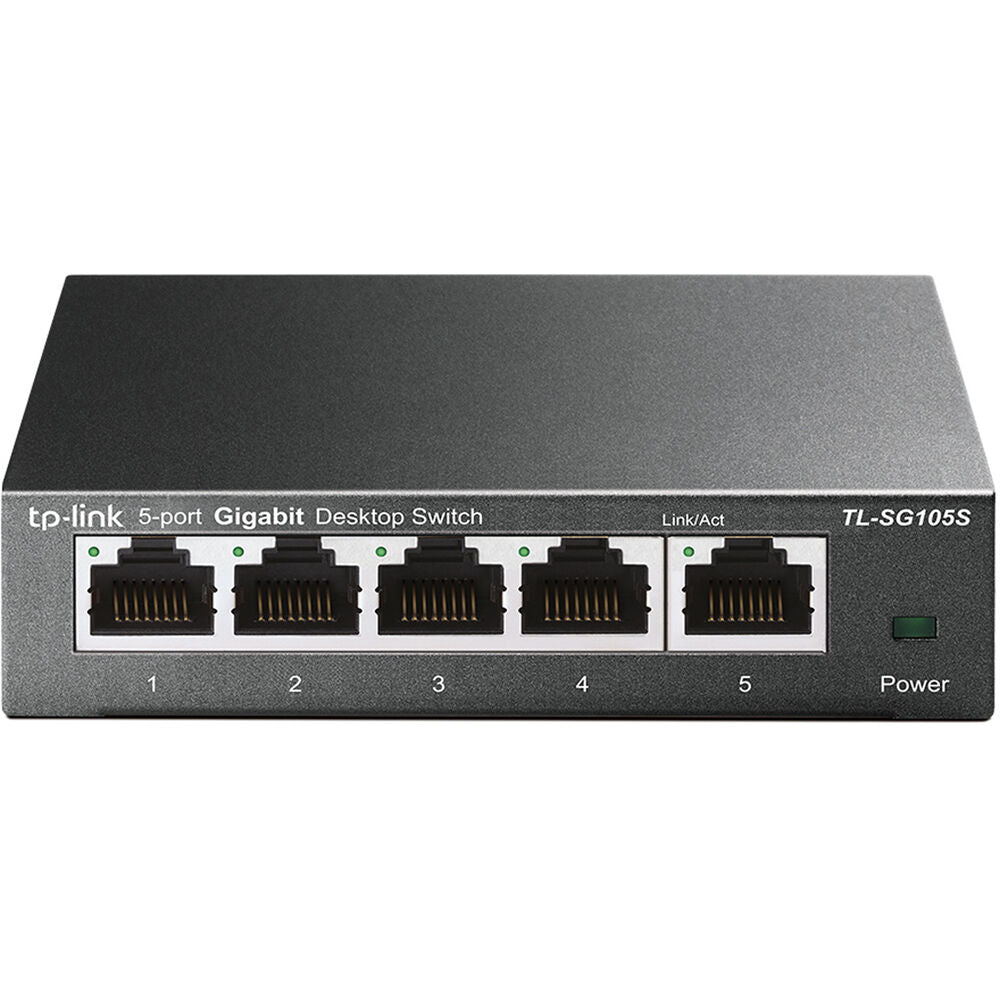

TP-Link TL-SG105S Overview
Quickly expand your business's network capacity to support additional computers and other wired Ethernet devices with the TL-SG105S 5-Port Gigabit Unmanaged Network Switch from TP-Link. Featuring five Gigabit RJ45 Ethernet ports, a 7.4 Mpps forwarding rate, and a 1Mb packet buffer, this unmanaged desktop network switch provides fast and reliable data transfers between connected devices. With its compact plug-and-play design, you don't have to perform any extra configuration to integrate the switch into your network. Additionally, the TL-SG105S's fanless and energy-efficient design means that your business can save on power expenses while the switch operates silently.
In the Box
- TP-Link TL-SG105S 5-Port Gigabit Unmanaged Network Switch
- Power Adapter
- Rubber Feet
TP-Link TL-SG105S Specs
Interfaces
| Inputs/Outputs |
5 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
Protocols
| Supported Protocols |
Auto-MDIX/MDI
IGMP Snooping |
| Transmission Method |
Store-and-Forward |
| Jumbo Frames Support |
16,000 Bytes |
| MAC Address Table Size |
2K |
Standards
| Supported IEEE Standards |
802.3ab, 802.3i, 802.3p, 802.3u, 802.3x |
Performance
| Forwarding Rate |
7.4 Mpps |
| Packet Buffer |
1 Mb |
Electrical
| Power Draw |
2.4 W |
| DC Input Power |
9 VDC at 0.6 A |
| Power Supply Type |
External |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
10 to 90% |
| Storage Temperature |
-40 to 158°F / -40 to 70°C |
| Storage Humidity |
5 to 90% |
General
| Cooling System |
Passive |
| Indicator Lights |
Link/Activity |
| Dimensions |
3.9 x 3.9 x 1" / 100 x 98 x 25 mm |
Packaging Info
| Package Weight |
0.805 lb |
| Box Dimensions (LxWxH) |
5.2 x 5.1 x 3.7" |
