Description

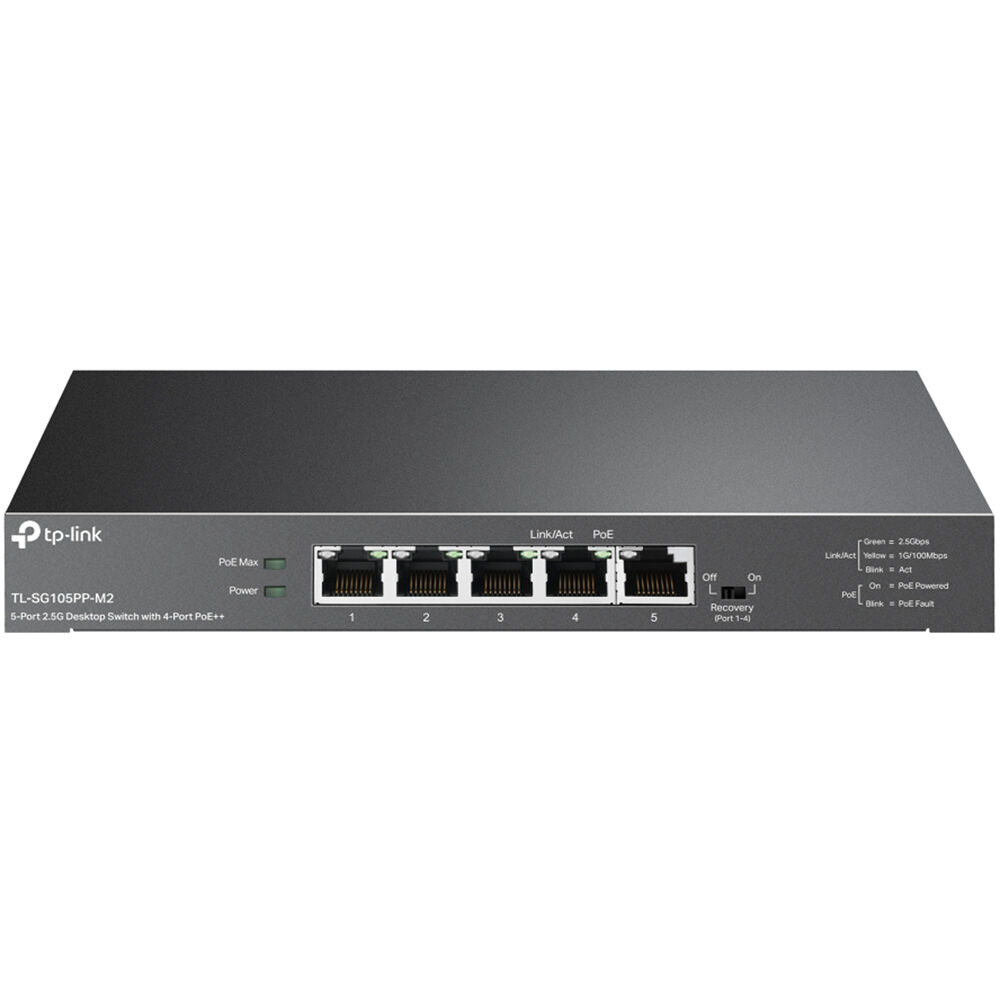

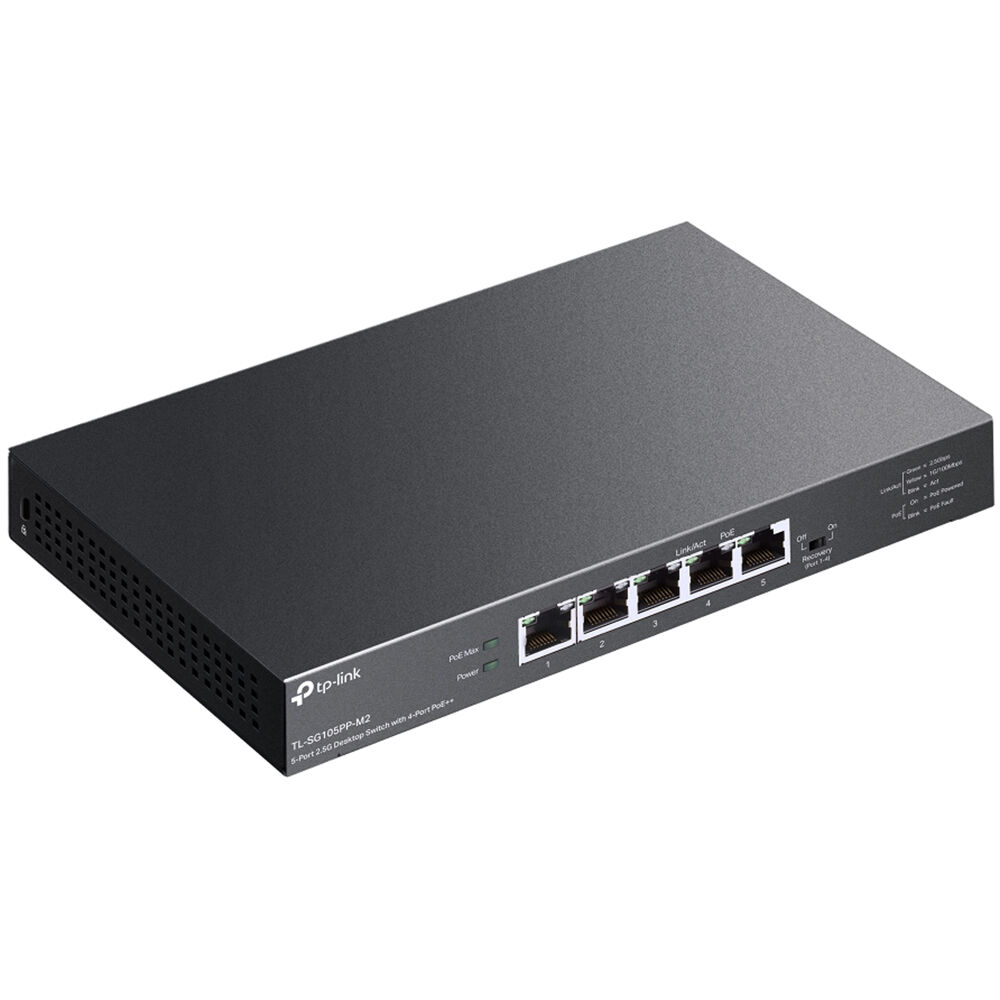

TP-Link TL-SG105PP-M2 Overview
Expand your office or business network capacity to handle a multitude of high-bandwidth applications with the TL-SG105PP-M2 5-Port 2.5G PoE++ Compliant Unmanaged Network Switch from TP-Link. This entry-level desktop switch features five 2.5G Ethernet ports, four of which provide up to 60W PoE++ to compatible devices such as advanced security cameras, access points, and more with a 123W power budget. With its plug and play design, no complex configuration is required.
Performance
The 25 Gb/s switching capacity, 18.6 Mpps forwarding rate, and 802.1p/DSCP QoS enable smooth latency-sensitive traffic between connected devices.
PoE Auto Recovery
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive devices.
Silent Cooling
The fanless design helps to maintain optimal performance without disturbing your environment.
UPC: 840030705717
Items Included
- TP-Link TL-SG105PP-M2 5-Port 2.5G PoE++ Compliant Unmanaged Network Switch
- Power Adapter
- Rubber Feet
- Limited 3-Year Manufacturer Warranty
Additional Resources
TP-Link TL-SG105PP-M2 Specs
Key Specs
| Inputs/Outputs |
1x RJ45 2.5 GbE
4x RJ45 2.5 GbE PoE++ (60 W, 802.3bt Type 3) |
| PoE Power Budget |
123 W
|
Interfaces
| Inputs/Outputs |
1x RJ45 2.5 GbE
4x RJ45 2.5 GbE PoE++ (60 W, 802.3bt Type 3) |
| Stackable |
No
|
Protocols
| Supported Protocols |
Auto-MDIX/MDI
IGMP Snooping |
| Transmission Method |
Store-and-Forward
|
| MAC Address Table Size |
4K
|
Standards
| Supported IEEE Standards |
802.1p, 802.3af (PoE 15.4 W), 802.3at (PoE+ 30 W), 802.3bt Type 3 (PoE++ 60 W), 802.3x
|
Performance
| Forwarding Rate |
18.6 Mpps
|
| Switching Bandwidth |
25 Gb/s
|
Electrical
| Power Draw |
143.37 W (Max)
|

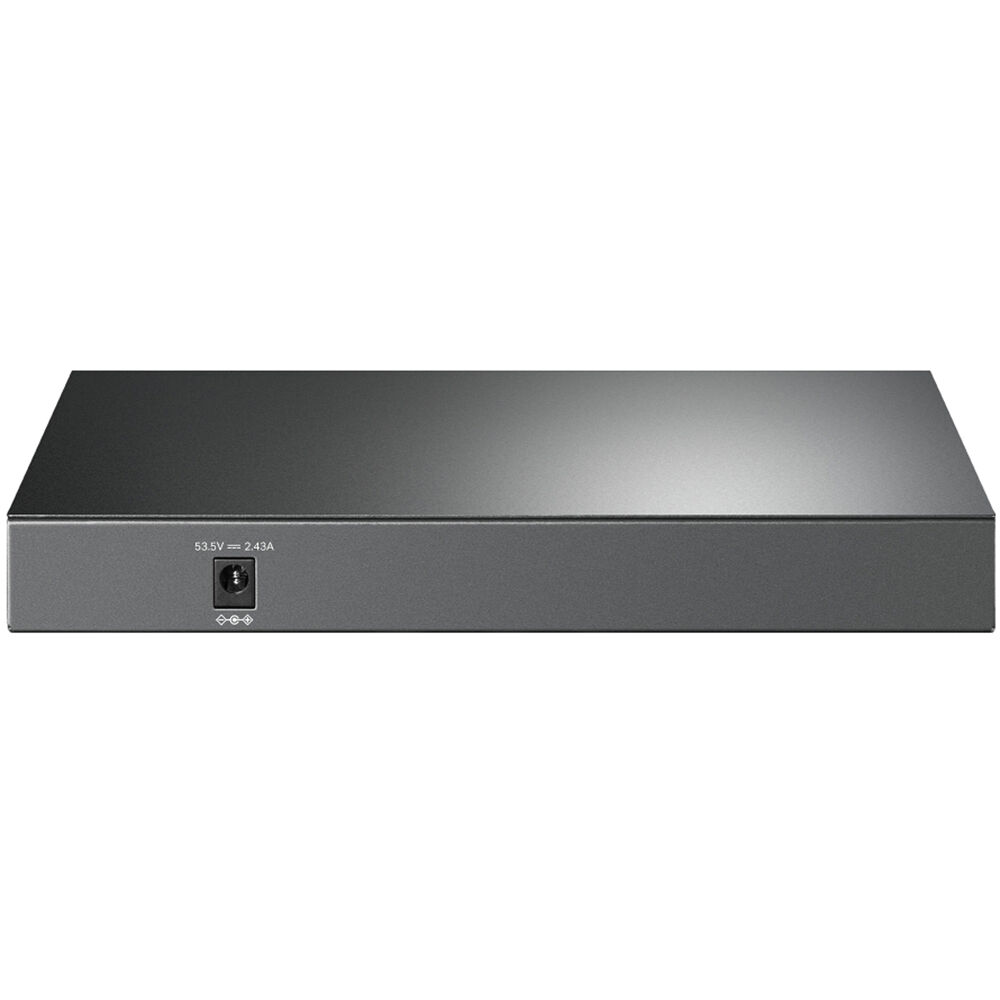

| DC Input Power |
53.5 VDC at 2.43 A
|
| AC Input Power |
No
|
| PoE Power Budget |
123 W
|
| PoE per Port |
60 W
|
| Power Supply Type |
External
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
10 to 90%
|
| Storage Temperature |
-40 to 158°F / -40 to 70°C
|
| Storage Humidity |
5 to 90%
|
General
| Certifications |
FCC, CE, RoHS
|
| Cooling System |
Passive
|
| Dimensions |
8.2 x 5 x 1" / 209 x 126 x 26 mm
|
Packaging Info
| Package Weight |
3.335 lb
|
| Box Dimensions (LxWxH) |
12.3 x 9.6 x 2.8"
|
