Description

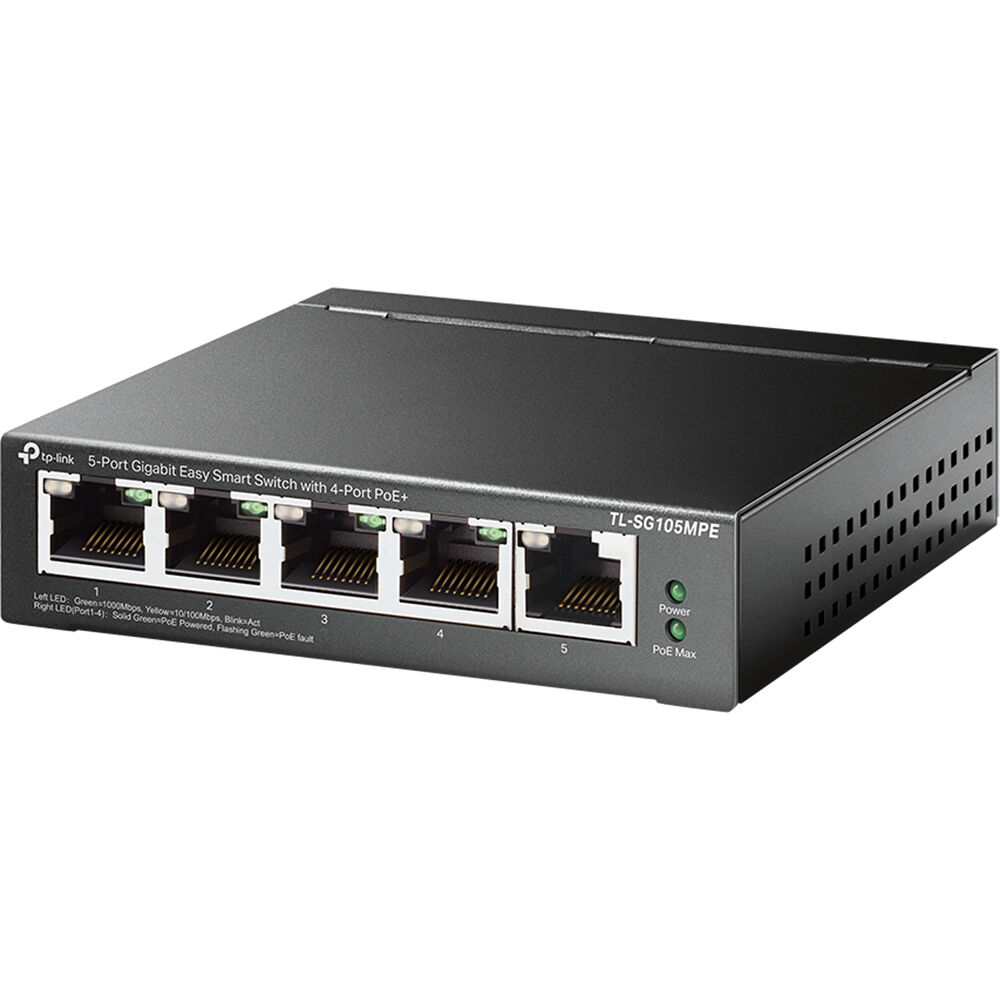

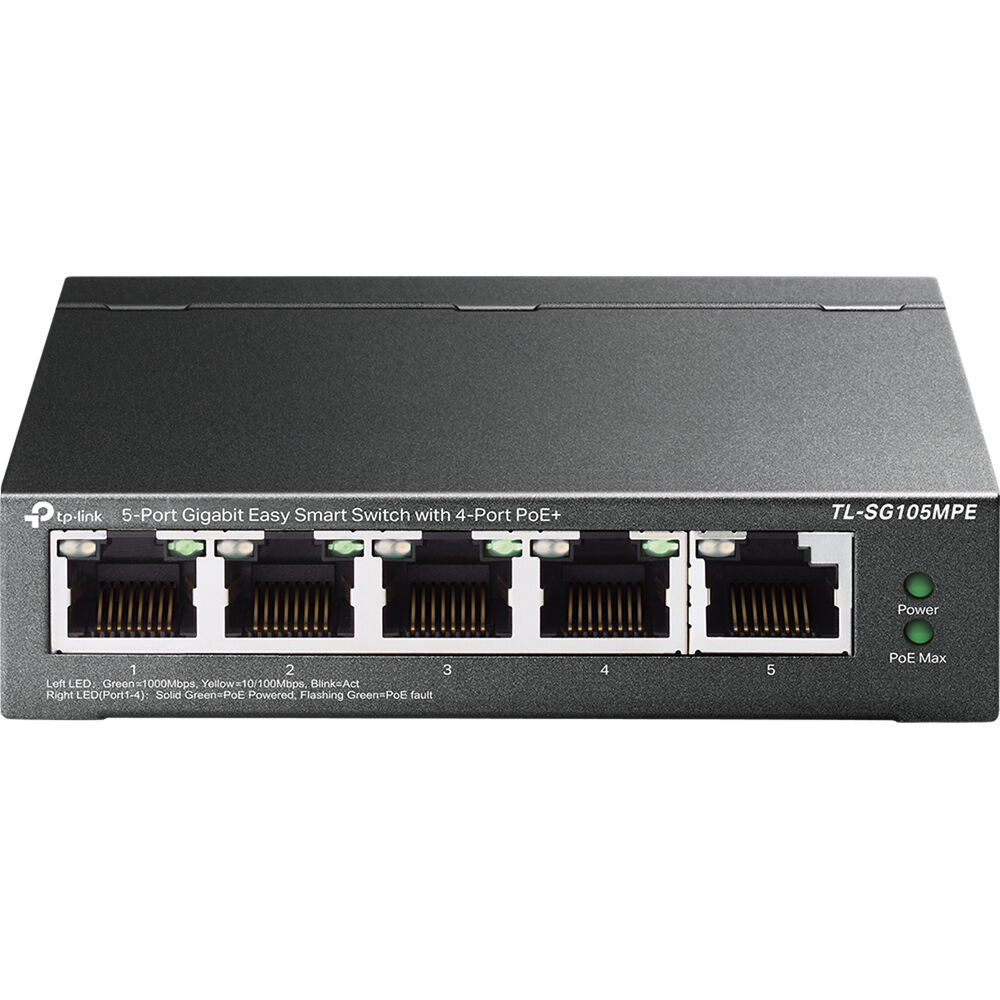

TP-Link TL-SG105MPE Overview
Quickly add powered network devices such as IP security cameras, VoIP phones, and access points to your business with the TL-SG105MPE 5-Port Gigabit PoE+ Compliant Managed Switch from TP-Link. This easy to use desktop switch includes five Gigabit Ethernet ports, four of which can deliver up to 30W of PoE+ power to compatible devices with a total budget of 120W. The switch automatically detects when a PoE compatible device is connected and provides it with the required power. It can also reboot devices when they go offline to help ensure stable operation.
With a 10 Gb/s switching capacity and 7.44 forwarding rate, the TL-SG105MPE provides smooth data transfers. Advanced features help to ensure optimized multimedia experiences. Use the web-based interface and management utility to configure and monitor your network.
In the Box

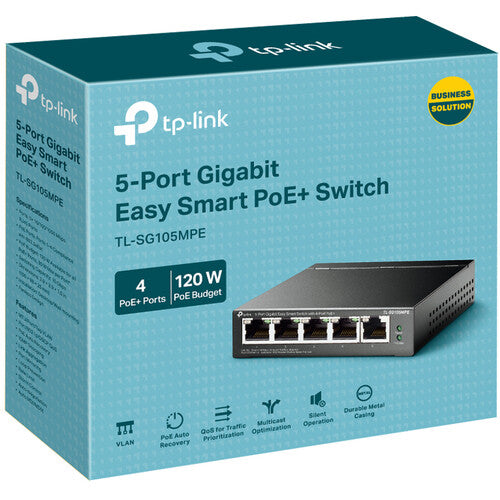

- TP-Link TL-SG105MPE 5-Port Gigabit PoE+ Compliant Managed Switch
- Power Adapter
- Rubber Feet
- Limited Lifetime Warranty
TP-Link TL-SG105MPE Specs
| Inputs/Outputs |
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| PoE Power Budget |
120 W
|
| Inputs/Outputs |
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| Supported Protocols |
Auto-MDIX/MDI
IGMP Snooping Link Aggregation |
| Transmission Method |
Store-and-Forward
|
| Jumbo Frames Support |
16,000 Bytes
|
| MAC Address Table Size |
2K
|
| VLAN Groups |
32
|
| VLAN IDs |
4000
|
| Security Features |
Storm Control
|
| Supported IEEE Standards |
802.1p, 802.3ab, 802.3af, 802.3at, 802.3i, 802.3p, 802.3q, 802.3u, 802.3x
|
| Forwarding Rate |
7.44 Mpps
|
| Switching Bandwidth |
10 Gb/s
|
| Priority Queues |
4
|
| Packet Buffer |
1 Mb
|
| Power Draw |
137.01 W (Max)
|
| DC Input Power |
53.5 VDC at 2.43 A
|
| PoE Power Budget |
120 W
|
| PoE per Port |
30 W
|
| Power Supply Type |
External
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
10 to 90%
|
| Storage Temperature |
-40 to 158°F / -40 to 70°C
|
| Storage Humidity |
5 to 95%
|
| Cooling System |
Passive
|
| Dimensions |
3.9 x 3.9 x 1" / 99.8 x 98 x 25 mm
|
| Package Weight |
2.35 lb
|
| Box Dimensions (LxWxH) |
9.7 x 9 x 2.7"
|
