| ₹ 4160.0 includes GST and import duties. | |
| B2B customers can avail ₹ 634.4 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
- 5 10/100/1000 Mb/s RJ-45 Ports
- IEEE 802.3/3u/3ab/3x/1q/1p Standards
- AUTO Negotiation/AUTO MDI/MDIX
- Provides Network Monitoring
- Traffic Prioritization and VLAN Features
- Energy-Efficient Technology
- Plug-and-Play Connectivity
- Easy Smart Configuration Utility
- Support Port Based/802.1p Based Priority

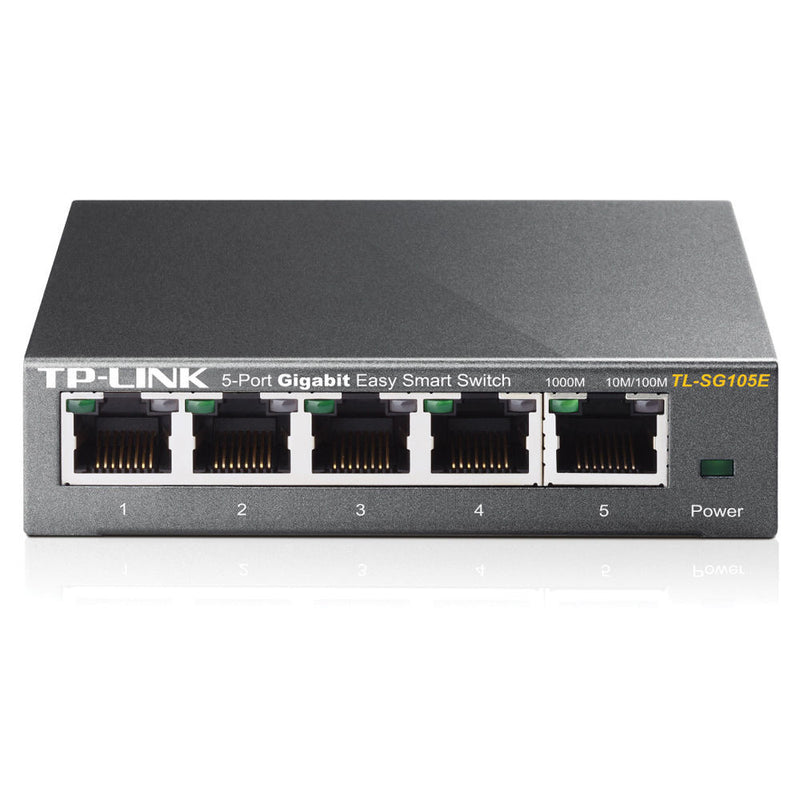

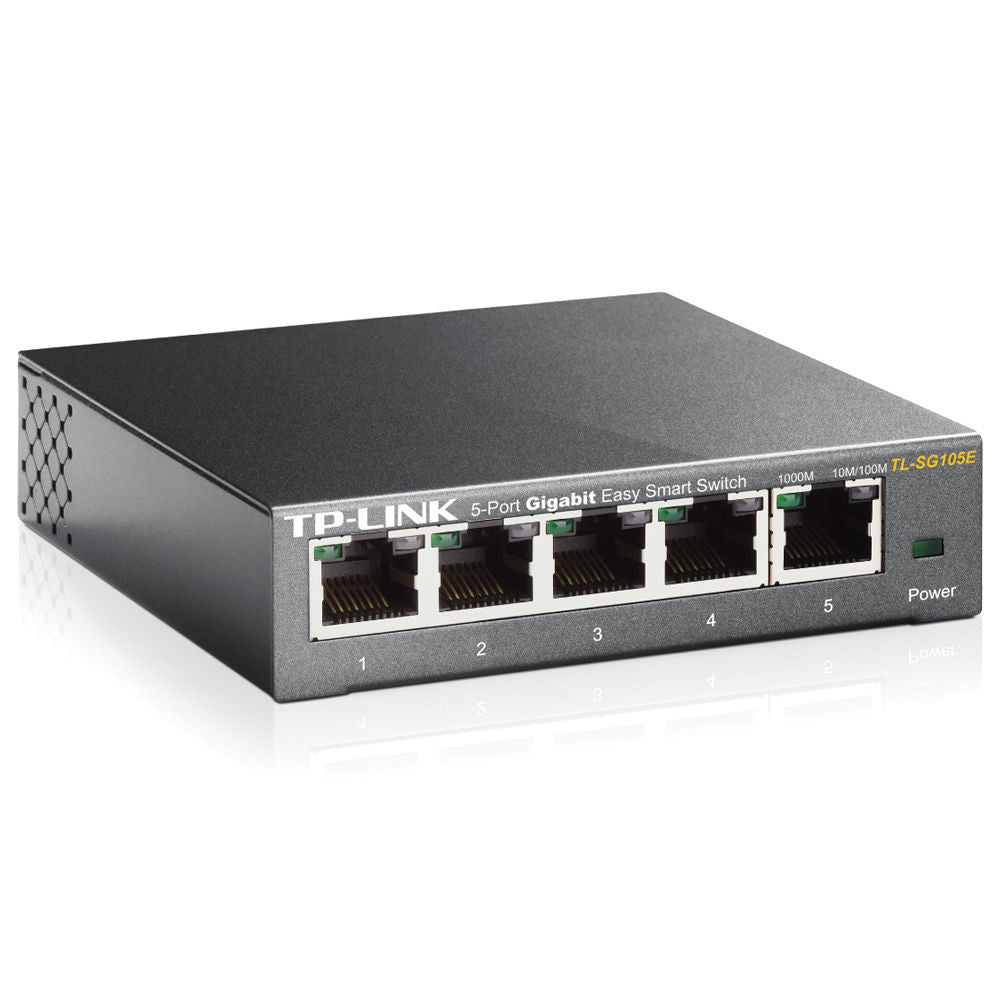

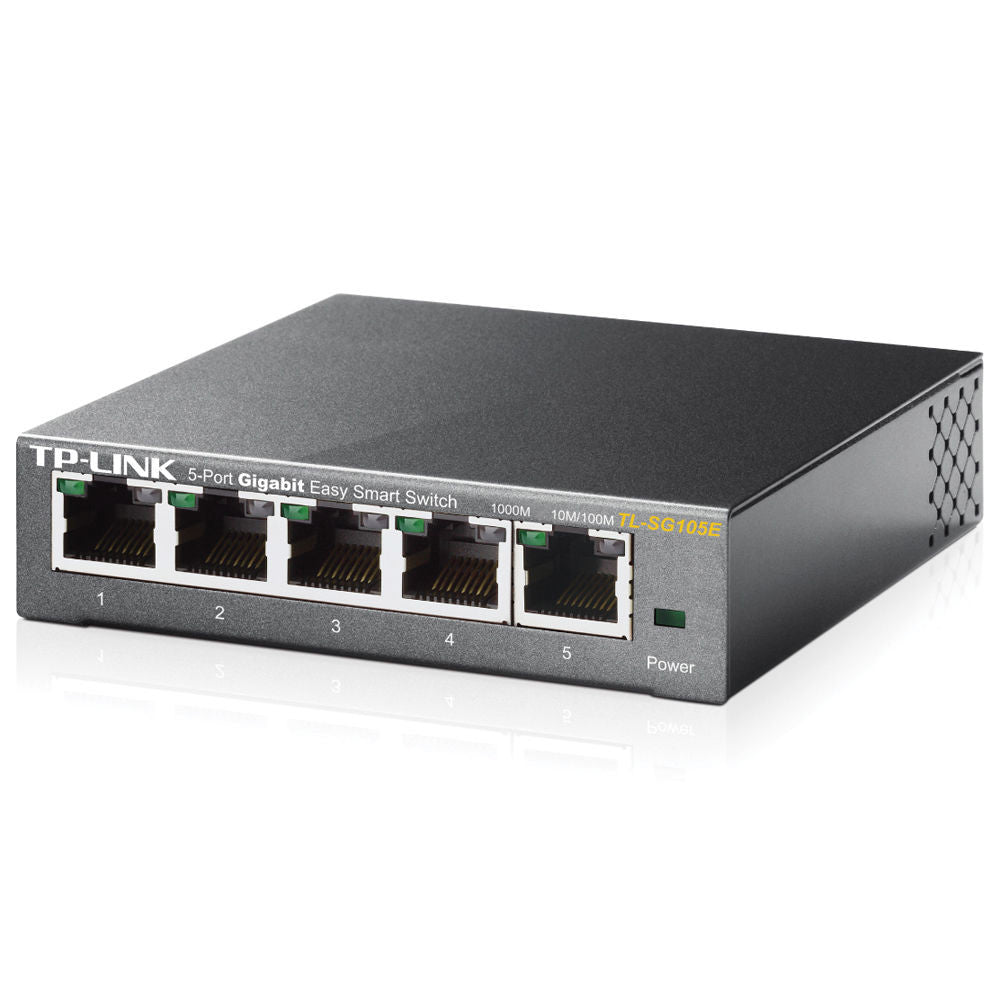

The TL-SG105E 5-Port Gigabit Easy Smart Switch from TP-Link is an upgrade from an unmanaged switch, designed for small and medium business networks that require simple network management. Five 10/100/1000 Mb/s ports provide instant large file transfers. IEEE 802.3x flow control provides reliable data transfers. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention, and Cable Diagnostics features. To optimize traffic on your business network, the switch offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Furthermore, port-based, tag-based, and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its energy-efficient technology, the TL-SG105E can save up to 75% of power consumption, making it an eco-friendly solution for your business network.
This switch offers network monitoring for you to observe traffic behavior. With Port Mirroring, Loop Prevention, and Cable Diagnostics features, TL-SG105E can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority and 802.1P Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, the switch supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. The switch is an upgrade from the plug-and-play Unmanaged Switch, delivering optimal value while empowering your network and similarly delivering great value to the end user.- Eco-Friendly
- This Smart Switch features an energy-efficient technology that can expand your network's capacity with much less power. This energy-efficient technology reduces power consumption by up to 75%. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
- Power Down Idle Ports
- When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. This switch can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
- Power Budget According to Cable Length
- Ideally, shorter cables would use less power with less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50m in length. The TL-SG105E analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.
- Ease of Use
- This Smart Switch is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mb/s) and adjusts for compatibility and optimal performance. Its compact size makes it suitable for desktops with limited space while also being rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
- All-in-One Features
- 16K Jumbo frame improves performance of large data transfers
Port and tag-based QoS enable smooth latency-sensitive traffic
Abundant VLAN features improve network security via traffic segmentation
IGMP Snooping optimizes multicast applications
Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility
UPC: 845973022037
| Performance | |
|---|---|
| MAC Address Table | 8K |
| Packet Buffer Memory | 2 MB |
| Packet Forwarding Rate | 7.4 Mp/s |
| Jumbo Frame | 16 KB |
| Hardware Features | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 5 x 10/100/1000 Mb/s RJ-45 ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable maximum 328.1' (100.0 m) EIA/TIA-568 100 ohms STP maximum 328.1' (100.0 m) 100BASE-TX: UTP category 5, 5e cable maximum 328.1' (100.0 m) EIA/TIA-568 100 ohms STP maximum 328.1' (100.0 m) 1000BASE-T: UTP category 5, 5e, 6 or above cable maximum 328.1' (100.0 m) EIA/TIA-568 100 ohms STP maximum 328.1' (100.0 m) |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Software Features | |
|---|---|
| Quality of Service | Support Port Based/802.1p Based priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Transmission Method | Store-and-Forward |
| Environmental | |
|---|---|
| Operating Temperature | 32 to 104? (0 to 40?) |
| Storage Temperature | -40 to +158? (-40 to +70?) |
| Operating Humidity | 10 to 90% (non-condensing) |
| Storage Humidity | 5 to 90% (non-condensing) |
| Requirements | |
|---|---|
| System Requirements | Microsoft Windows XP/Vista/7/8 Mac OS, NetWare, UNIX, or Linux |
| Standards and Certifications | |
|---|---|
| Certifications | FCC, CE, RoHS |
| Physical Characteristics | |
|---|---|
| Dimensions (W x H x D) | 3.9 x 1.0x 3.9" (10.0 x 2.5 x 9.8 cm) |
| Packaging Info | |
|---|---|
| Package Weight | 1.05 lb |
| Box Dimensions (LxWxH) | 6.6 x 4.4 x 4.0" |
In the Box
TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch
- Power Cord
- Resource CD
- Rubber Feet
- Limited 1-Year Warranty
Bulk Discount
| Quantity | Price |
| 2 | ₹ 4076.8 |
| 3-5 | ₹ 4035.2 |
| 5-10 | ₹ 3952.0 |
| 10+ | ₹ 3868.8 |
Bulk discount will be automatically applied during checkout based on quantity.
