Description
- IEEE 802.3i, 802.3u, 802.3ab, 802,3x
- 24 x 10/100/1000 Mbps RJ-45 Ports
- 48 Gbps Switching Capacity
- 8K MAC Address Table
- Auto Negotiation
- Auto MDI/MDIX

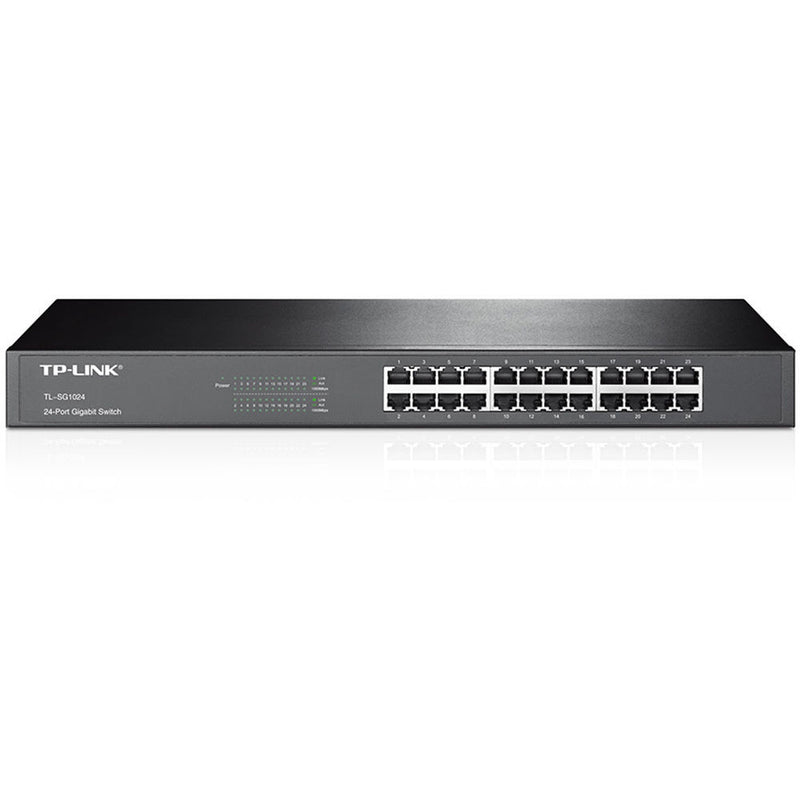

The TL-SG1024 24-Port Gigabit Rackmount Switch from TP-Link comes in an energy efficient configuration allowing you to save up to 25% over traditional network switches. With a variety of IEEE standards, including 802.3i, 802.3u, 802.3ab, and 802,3x, this switch can be easily configured to meet a variety of needs. 802.3 compatibility is a general collection of IEEE standards used within a local area network when connecting hubs, switches, and routers. IEEE 802.3u, otherwise known as Fast Ethernet, is a standard that carries traffic at the normal rate of 100 Mbps against the original Ethernet speed of 10 Mbps. The IEEE 802.3x standard refers to a flow control standard allowing you to control traffic throughout the switch.
With 24 x 10/100/1000 Mbps RJ-45 ports, you can connect a number of devices to the Gigabit Switch to allow for multiple devices to connect to the Internet. The 48 Gbps switching capacity provides for ultra fast data transfer speeds along with the 8K MAC address table giving you the necessary space to store a large number of MAC addresses. Auto MDI/MDIX eliminates the need for crossover cables allowing for a seamless connection.
The TL-SG1024 24-Port Gigabit Rackmount Switch operates using 100-240 VAC at 50/60 Hz and consumes a maximum of 14.6W. It has a packet forwarding rate of 35.7 Mbps and includes a power cord, rackmount kits, and rubber feet. It is protected by a limited 5-year warranty.
- TP-LINK Green Technology
- The TL-SG1024 Gigabit Switch features innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled
- High Performance
- All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10 Mbps and 100 Mbps Ethernet devices. Featuring non-blocking switching architecture, the TL-SG1024 forwards and filters packets at full wire-speed for high throughput. With 10KB Jumbo frame, the performance of large files transfers is improved as well. Additionally, IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode help to alleviate the traffic congestion and make The TL-SG1024 work reliably. It's a well-suited choice to update your network to Gigabit while protecting your previous investment properly
- Ease to Use
- The auto features of this Gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance
- Energy-efficient technology saves power up to 25%
- 100% Data filtering rate eliminates all error packets
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
- 48 Gbps Switching Capacity
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Support the port N-Way Auto-Negotiation, Store, and Forward
- Compact size design for desktops, also rack-mountable
- The plug and play design helps to simplify installation
Hardware Features | |
---|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x |
Interface | 24 x 10/100/1000 Mbps RJ-45 Ports (Auto Negotiation/Auto MDI/MDIX) |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 328' / 100 m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 328' / 100 m) |
Fan Quantity | Fanless |
Power Supply | 100-240 VAC, 50/60 Hz |
Power Consumption | Maximum: 14.6 W (220 V / 50 Hz) |
Performance | |
---|---|
Switching Capacity | 48 Gbps |
Packet Forwarding Rate | 35.7 Mbps |
MAC Address Table | 8K |
Jumbo Frame | 10 KB |
Green Technology | Energy-efficient technology saves power up to 25% |
Transfer Method | Store-and-Forward |
Others | |
---|---|
Certification | FCC, CE, RoHS |
Environment | Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -40 to 158°F / -40 to 70°C Operating Humidity: 10~90% non-condensing Storage Humidity: 5~90% non-condensing |
System Requirements | Microsoft Windows 8, 7, Vista, and XP Mac OS NetWare UNIX Linux |
Dimensions | 17.3 x 7.1 x 1.7" / 439.4 x 180.3 x 43.2 mm |
Weight | Not specified by manufacturer |
Packaging Info | |
---|---|
Package Weight | 6.25 lb |
Box Dimensions (LxWxH) | 20.8 x 10.0 x 3.1" |
- Power Cord
- Rackmount Kits
- Rubber Feet
- Limited 5-Year Warranty
