Description

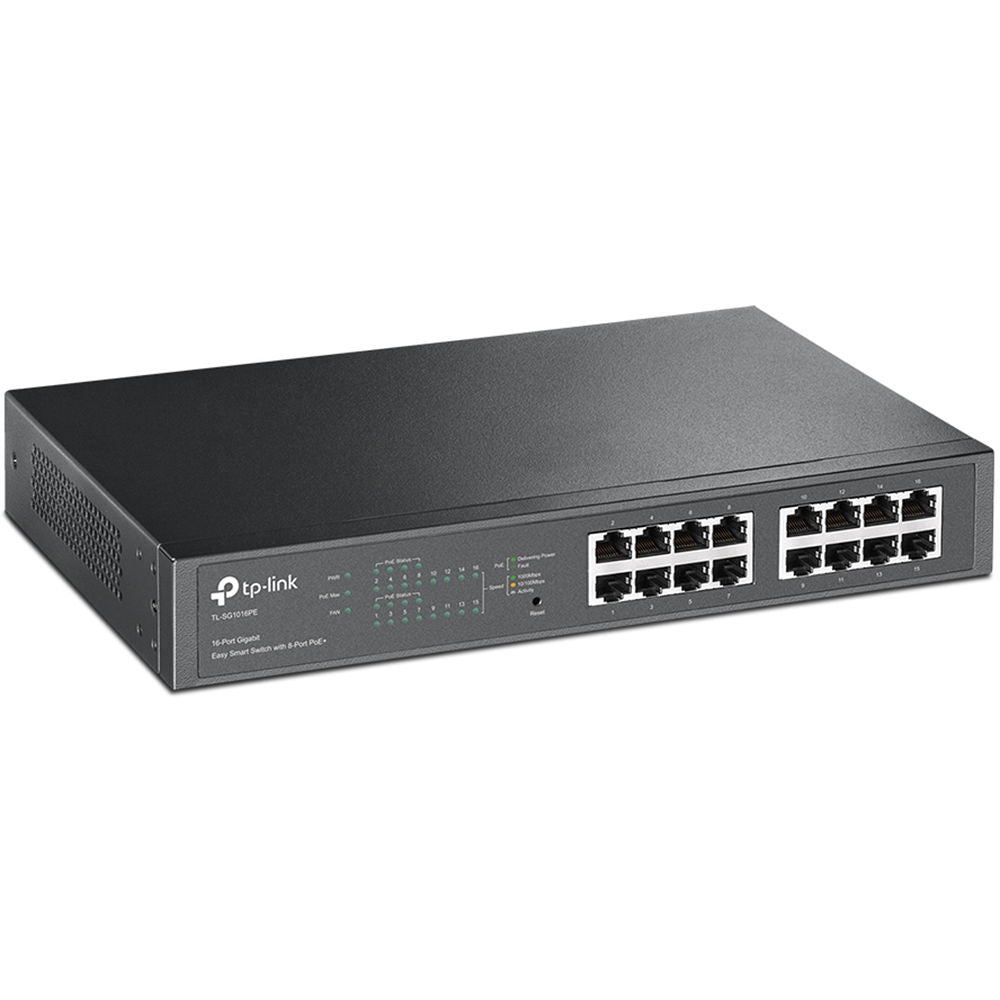

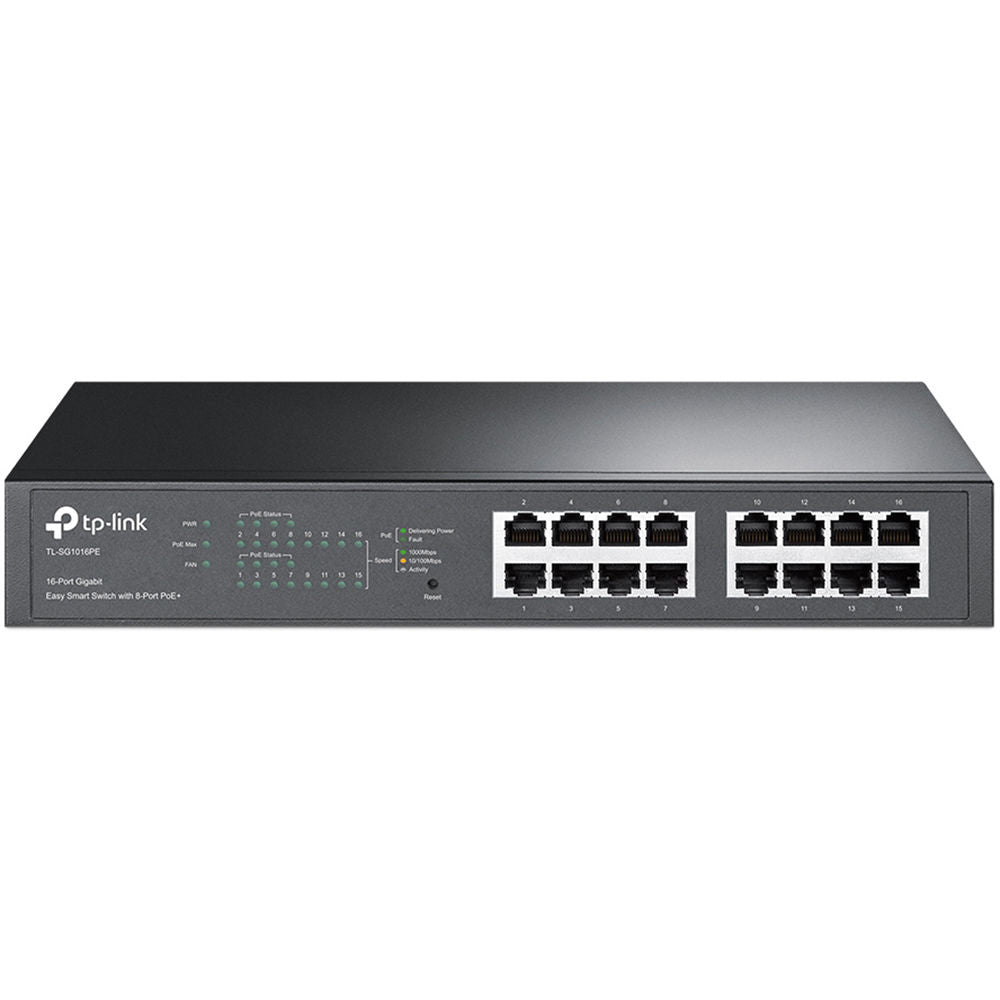

TP-Link TL-SG1016PE Overview
With support for the 802.3af/at PoE networking standard, the TL-SG1016PE 16-Port Gigabit PoE+ Managed Switch from TP-Link is designed to power a variety of PoE-compatible devices such as IP cameras, IP phones, access points, and more.
Simply plug in your PoE-compliant device into any of the eight Gigabit Ethernet PoE-compliant ports and you can begin powering that device directly through the network connection. Along with the PoE ports, you will find eight additional Gigabit Ethernet ports to connect a total of sixteen Ethernet-enabled devices to the switch. The TL-SG1016PE switch features a 32 Gb/s switching capacity, a 23.8 Mb/s forwarding rate, an 8K MAC address table, and a 9KB jumbo frame to ensure the switch operates smoothly even under demanding network conditions.
- 16 x 10/100/1000 Mb/s RJ45 ports
- Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Simple network setup on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
In the Box
- TP-Link TL-SG1016PE 16-Port Gigabit PoE+ Managed Switch
- Power Cord
- Rackmount Kit
- Rubber Feet
- Limited 5-Year Warranty
TP-Link TL-SG1016PE Specs
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 16 x 10/100/1000 Mb/s RJ-45 ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 328' / 100 m) EIA/TIA-568 100? STP (maximum 328' / 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 328' / 100 m) EIA/TIA-568 100? STP (maximum 328' / 100 m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 328' / 100 m) EIA/TIA-568 100? STP (maximum 328' / 100 m) |
| Fan Quantity | 1 |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Power Consumption | Maximum: 124.4 W (220 V/50 Hz) |
| PoE Ports | Standard: 802.3at compliant PoE Ports: Port 1- port 8 PoE Power Budget: 110 W |
| Switching Capacity | 32 Gb/s |
| Packet Forwarding Rate | 23.8 Mb/s |
| MAC Address Table | 8 K |
| Packet Memory Buffer | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| Quality of Service (QoS) | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Services | IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Management | Web-based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| Certifications | FCC, CE, RoHS |
| System Requirements | Microsoft Windows for running Utility |
| Temperature & Humidity | Operating Temperature 32 to 104°F / 0 to 40°C Storage Temperature -40 to 158°F / -40 to 70°C Operating Humidity 10 to 90% non-condensing Storage Humidity 5 to 90% non-condensing |
| Dimensions | 11.6 x 7.1 x 1.7" / 294 x 180 x 44 mm |
| Weight | Not specified by manufacturer |
| Package Weight | 5.05 lb |
| Box Dimensions (LxWxH) | 15.9 x 9.9 x 3.25" |
