TP-Link TL-SG1008P Overview
-
1Description
-
2Intelligent Power Management
-
3High Performance Features
-
4Silent Operation

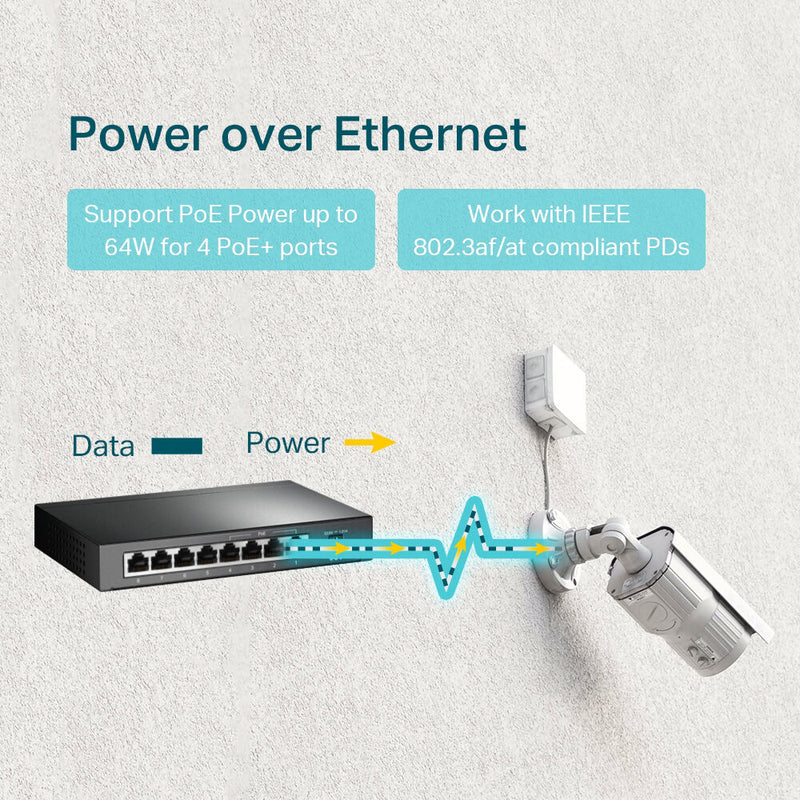

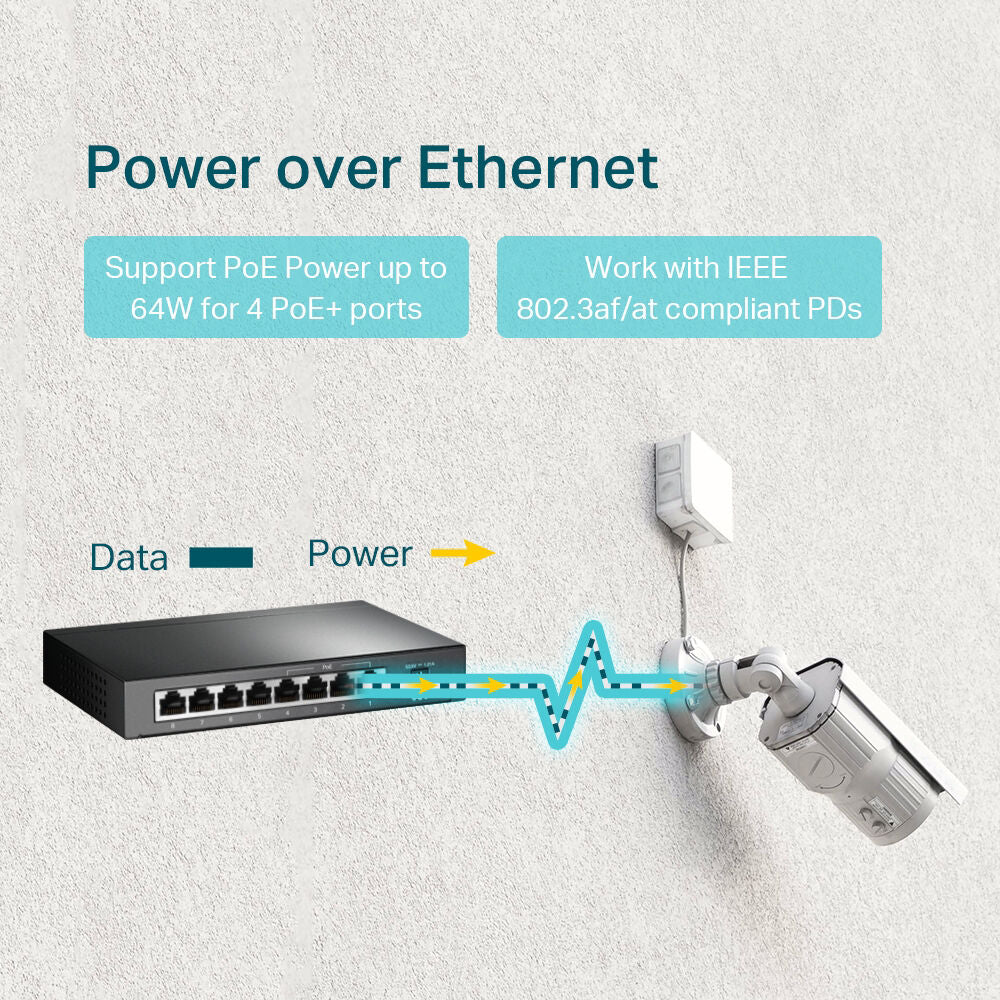

Quickly expand your small business network to support Power-over-Ethernet (PoE) devices, such as IP security cameras, VoIP phones, wireless access points, and more, with the TL-SG1008P V4 8-Port Gigabit PoE+ Compliant Unmanaged Switch from TP-Link. This unmanaged switch includes eight Gigabit Ethernet ports, four of which are PoE+ compliant and support up to 30W each with a total power budget of 64W. At the same time, its 16 Gb/s switching capacity and 11.9 Mpps forwarding rate help to ensure smooth and reliable data transfers between devices. With its plug-and-play design, the TL-SG1008P V4 8-port switch is designed to quickly integrate into your network without the need for a lengthy and complicated setup process.
Intelligent Power Management
The built-in intelligent power management system will cut off lower-priority ports' power when consumption exceeds 64W, helping to ensure that high-priority devices remain operational and protected from power overloads.
High Performance Features
Administrators can designate traffic priority based on the Quality of Service (QoS) rules so that voice and video applications are clear and lag-free. Additionally, IGMP snooping optimizes multimedia traffic for smooth broadcast experiences.
Silent Operation
The metal casing and fanless design allow the TL-SG1008P V4 to work silently on your desktop to avoid disturbing your work or home environment.
![]()
UPC: 845973021160
In the Box

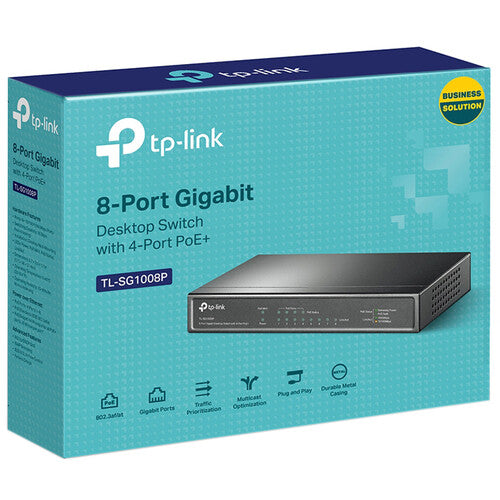

- TP-Link TL-SG1008P V4 8-Port Gigabit PoE+ Compliant Unmanaged Switch
- Power Adapter
- Limited Lifetime Warranty
Table of Contents
- Description
- Intelligent Power Management
- High Performance Features
- Silent Operation
TP-Link TL-SG1008P Specs
Interfaces
| Ports |

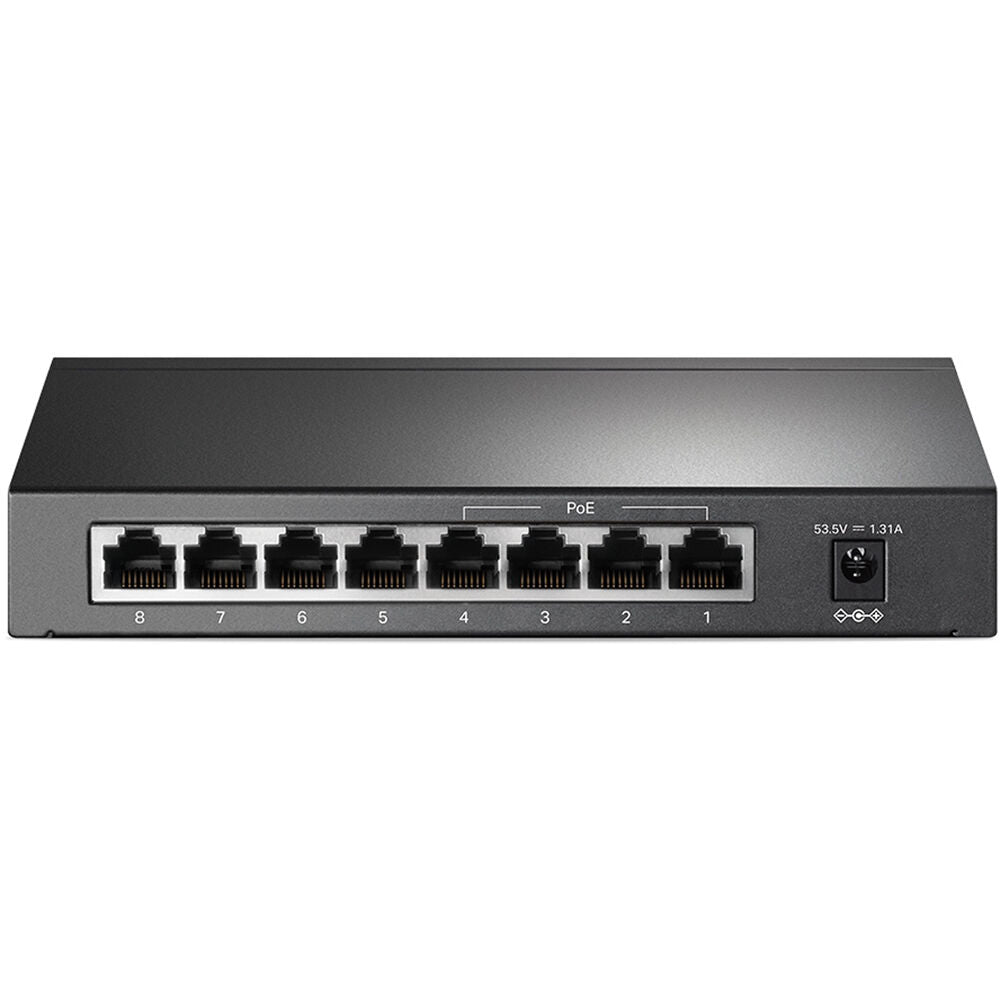

4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
Protocols
| Supported Protocols |
Auto-MDIX/MDI
IGMP Snooping |
| Transmission Method |
Store-and-Forward |
| Jumbo Frames Support |
16,000 Bytes |
| MAC Address Table Size |
4K |
Standards
| Supported IEEE Standards |
802.1p, 802.3ab, 802.3af, 802.3at, 802.3i, 802.3u, 802.3x |
Performance
| Forwarding Rate |
11.9 Mpps |
| Switching Bandwidth |
16 Gb/s |
Electrical
| Power Draw |
75.00 W (Max) |
| DC Input Power |
54 VDC at 1.3 A |
| PoE Power Budget |
64 W |
| PoE per Port |
30 W |
| Power Supply Type |
External |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
10 to 90% |
| Storage Temperature |
-40 to 158°F / -40 to 70°C |
| Storage Humidity |
5 to 95% |
General
| Cooling System |
Passive |
| Material of Construction |
Metal |

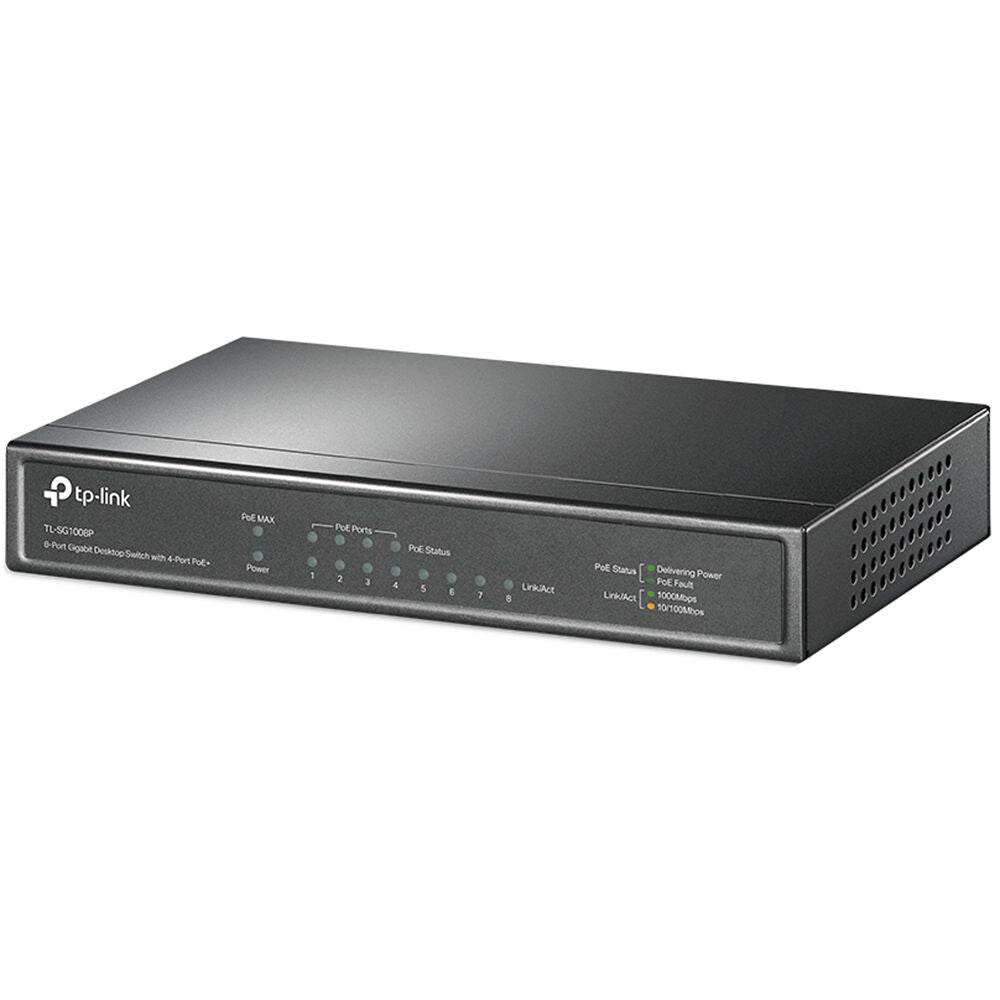

| Indicator Lights |
Link/Activity/Speed, PoE, Power |
| Dimensions |
6.7 x 3.9 x 1.1" / 171 x 98 x 27 mm |
Packaging Info
| Package Weight |
2.08 lb |
| Box Dimensions (LxWxH) |
11 x 9.2 x 2.7" |
