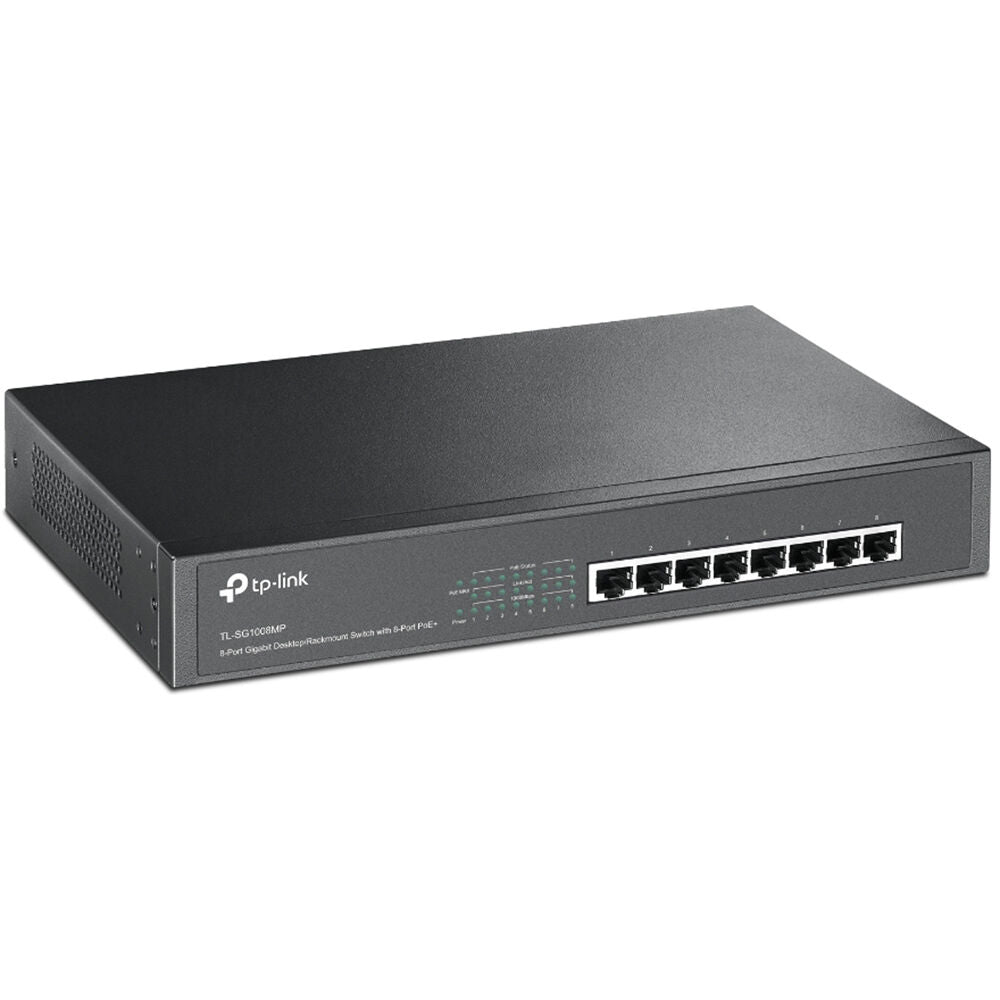

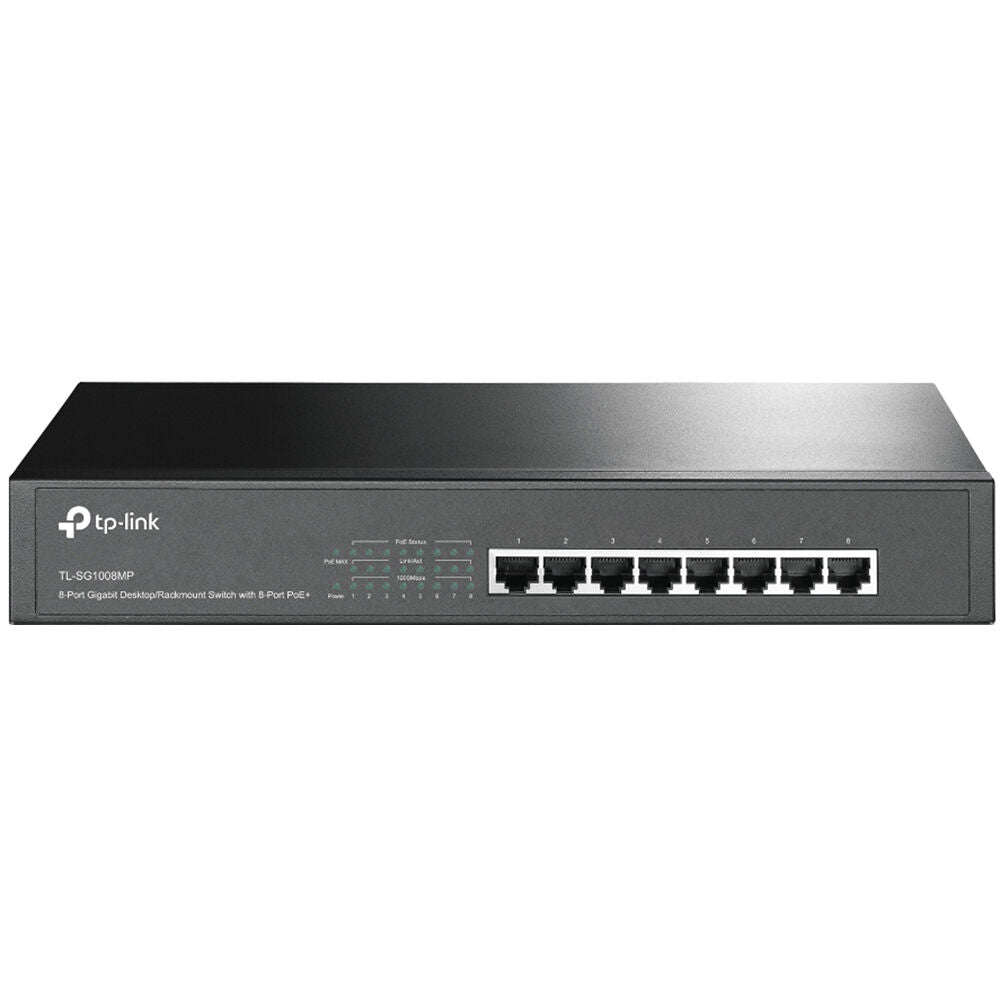

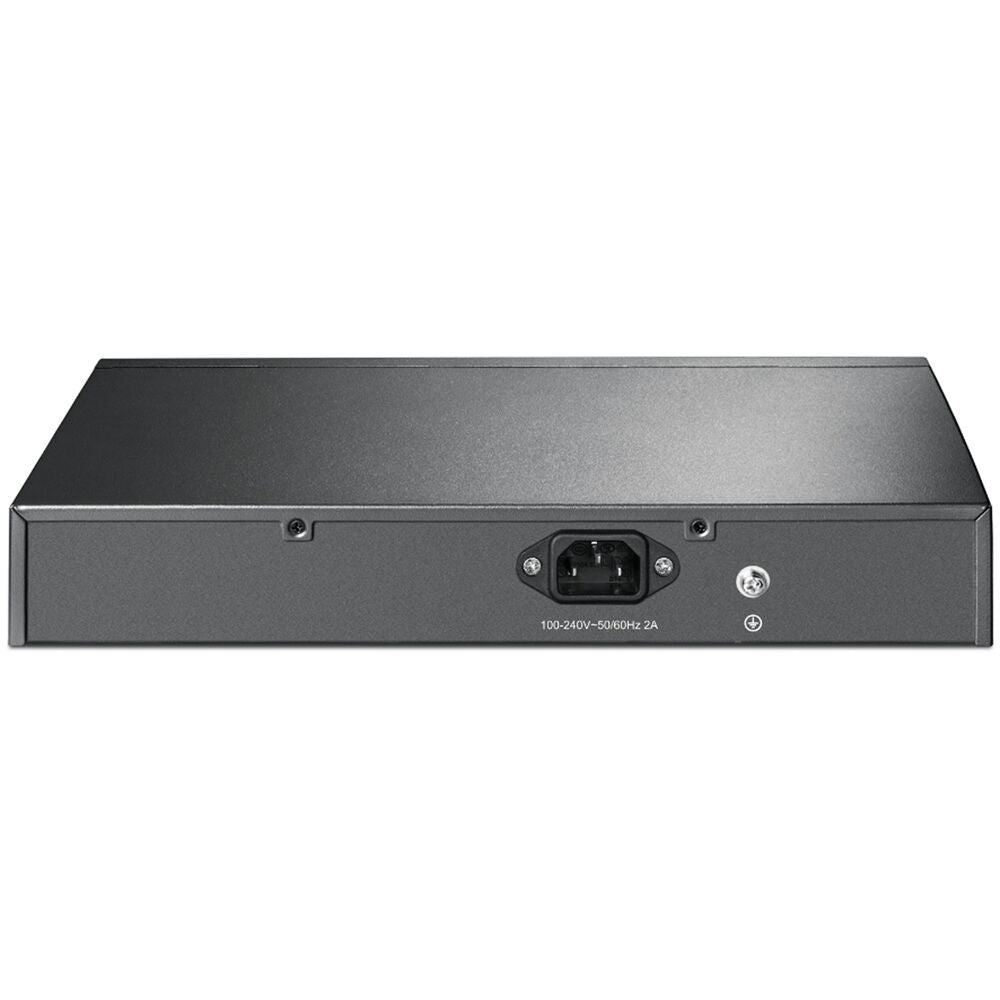

TP-Link TL-SG1008MP Overview
Expand your business's network capacity to support 802.3af/at compatible power-over-Ethernet devices such as IP cameras, VoIP phones, and access points with the TL-SG1008MP 8-Port Gigabit PoE+ Compliant Unmanaged Switch from TP-Link. Each of its eight auto-sensing PoE+ complaint ports provide up to 30W of power to connected devices with a total budget of 126W. Its energy-efficient design helps to minimize power consumption while helping to protect the system if it becomes overloaded by prioritizing devices. With a 16 Gb/s switching capacity and 16kB Jumbo Frame support, this switch is built to handle large data transfers. Additionally, you can quickly integrate this plug-and-play unmanaged switch into your network without having to install any additional hardware or software. A single fan helps to maintain optimal temperatures while producing low noise. You can mount the SG1008MP on a desktop or use the included kit to install it in a rack.
![]()
UPC: 840030700057
In the Box
- TP-Link TL-SG1008MP 8-Port Gigabit PoE+ Compliant Unmanaged Switch
- Power Cable
- Rackmount Kit
- Pack of Rubber Feet
- Limited Lifetime Warranty
TP-Link TL-SG1008MP Specs
Interfaces
| Ports |
8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ |
Protocols
| Supported Protocols |
Auto-MDIX/MDI |
| Transmission Method |
Store-and-Forward |
| Jumbo Frames Support |
16,000 Bytes |
| MAC Address Table Size |
4K |
Standards
| Supported IEEE Standards |
802.1p, 802.3, 802.3ab, 802.3af, 802.3at, 802.3u, 802.3x |
Performance
| Switching Bandwidth |
16 Gb/s |
| Packet Buffer |
1.5 Mb |
Electrical
| Power Draw |
9.5 W (Active)
140.1 W (Max) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| AC Input Power |
VAC50 / 60 Hz |
| PoE Power Budget |
126 W |
| PoE per Port |
30 W |
| Power Supply Type |
Internal |
Environmental
| Operating Temperature |
32 to 122°F / 0 to 50°C |
| Operating Humidity |
10 to 90% |
| Storage Temperature |
-40 to 158°F / -40 to 70°C |
| Storage Humidity |
5 to 90% |
General
| Cooling System |
Fan |
| Indicator Lights |
Link/Activity, PoE, Power |
| Rack Form Factor |
1 RU |
| Dimensions |
11.6 x 7.1 x 1.7" / 294 x 180 x 44 mm |
Packaging Info
| Package Weight |
4.68 lb |
| Box Dimensions (LxWxH) |
15.9 x 10.1 x 3.2" |
